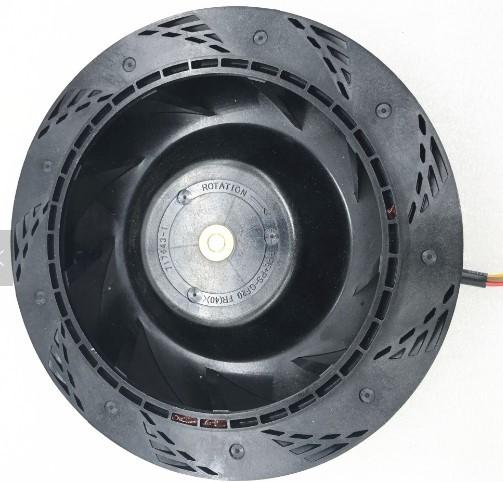

9TN24P1H01 DC Centrifugal Fan For Air Purifier / SANYO Blower Motor 150 ×35mm

150 ×35mm ​Industrial Equipment Cooling Fan , low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

● Various Size
● High speed , Middle speed, Low speed
● Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
● 5 blades 7 blades or 9 blades
● 5V DC 12V DC 24V DC or 48V DC
● Ball bearing or Sleeve bearing or Hydraulic bearing
● Terminal or Lead wire
● Waterproof explosion proof or high proof are can be satisfied.

General Specifications

Material :Motor case: Aluminum (Black coating), Impeller: Plastic (Flammability: UL 94V-0)

Expected life:See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60ºC, rated voltage) Expected life at 40ºC is for reference only.

Motor protection function :Locked rotor burnout protection, Reverse polarity protection For details, please refer to p. 573.

·Dielectric strength :50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and motor case)

Insulation resistance :10 MΩ or more with a 500 VDC megger (between lead wire conductors and motor case) ·

Sound pressure level (SPL):At 1 m away from the air inlet

Storage temperature :-30 to +70ºC (Non-condensing)

Mass :330 g

Specifications

The models listed below have pulse sensors with PWM control function.

* PWM input frequency is 25 kHz; models without specifications at 0% PWM duty cycle have zero fan speed at 0%. Max input of 9TN24P1H01: 21.4 W, 9TN48P1H01: 22 W.

Airflow - Static Pressure Characteristics / PWM Duty - Speed Characteristics Example

9TN24P1H01 With pulse sensor with PWM control function

9TN48P1H01 With pulse sensor with PWM control function

Dimensions (unit: mm)

Reference Diagram for Mounting

If you want another rpm or voltage or other reqirement , pls contact me for more details , thanks!
For Special Cooling Fan , Such as : moistureproof , waterprrof , turbocharger , soft start , Reversible , temperature control , PWM speed control , the RD alarm and the FG signal etc , pls contact me free .
