92 x 38 mm reversible flow fan / dc forward and reverse fan 12v 24v / DC reversible fan
92 x 38 mm reversible flow fan / dc forward and reverse fan 12v 24v / DC reversible fan
92 x 38 mm reversible flow fan / dc forward and reverse fan 12v 24v / DC reversible fan
92 x 38 mm reversible flow fan / dc forward and reverse fan 12v 24v / DC reversible fan
Specifications
Brand Name :
MX
Model Number :
MX9238ABH1
Certification :
CE/ROHS/UL/SGS
Place of Origin :
China
MOQ :
500pcs
Price :
us$1.5/pcs to us$5.00/pcs, and negotiation
Payment Terms :
T/T or western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton box
Voltage :
12V/24V/48V
Speed :
11000rpm
Max air Flow :
42.4CFM
Expected Life :
80,000-30,000 hours(40C)
Input Power :
2/2.5Watt
Current :
0.5/0.4A
Bearing Type :
Ball Bearing
Color :
Black
Description

92 x 38 mm reversible flow fan / dc forward and reverse fan 12v 24v / DC reversible fan


92 x 38 mm reversible flow fan, measuring 92mm diameter by 38mm thick. This reversible flow fan has been designed to deliver air flow in the two opposite directions, contributing to reduce equipment costs and to save space.

Features:

1. Reduces the required number of fan
1). wind direction of the fan can be switched so fewer fans are required
2).reduces equipment costs and saves space
2. Same cooling performance in both directions
approximately same air flow and static pressure in both directions
3. PWM Speed Control Function

to manage power consumption and noise

Specifications:

ITEM Specification Condition
01 Part No. MX9238ABH1
02 Dimension 92×38mm
03 Rated Voltage 12VDC
04 Start-up Voltage 5.5VDC
05 Operating Voltage 5.5-13 VDC a.Rated Voltage
06 Rated Speed

Forward 5500rpm

Reverse 5300rpm

 ±10% b. 25℃
07 Rated Current 0.5/0.4A ±10% c. 65% RH
08 Rated Power 2.5/2W d. Measured after 5 Mins
09 Max Airflow 42.4 CFM

a. PQ Measurement Apparatus : (LW9266-SR)

b. Standard : AMCA

c. /Rated Voltage

d. Rated Current
1.2 M3/Min
10 Max Static Pressure 0.63/0.59 Inch-H2O
16/14.98 mmH2O
11 Life Expectancy 50000hrs at 40℃

a.L10 at Conf. Level 90%

b.Rated Voltage
12 Noise Level 49/53dB

a.Rated Voltage

b.Non-Echo Chamber

c.Standard:CNS 8753/ISO3744

d.Test Condition:ISO 7779

e.Distance: 1.0M
13 No. of Pole 4Poles
14 Waterproof no

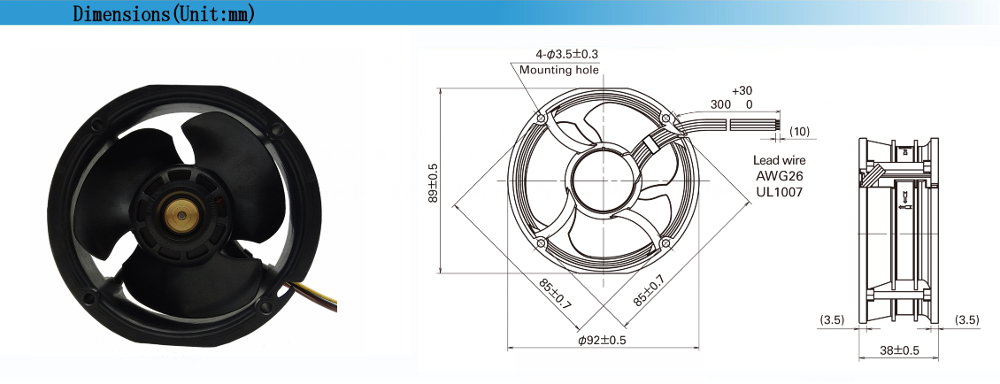

ASSEMBLY DIAGRAM

92 x 38 mm reversible flow fan / dc forward and reverse fan 12v 24v / DC reversible fan

Carton and foam boxes:

92 x 38 mm reversible flow fan / dc forward and reverse fan 12v 24v / DC reversible fan

FAQ

- Fast lead time: sample in stock, just need 1-2days, for 1000pcs, just 2 weeks;

-OEM service based on MOQ1000pcs;

-Best price from factory;

-Best quality cooling fans, all fans will be done 100% testing before the fans sent out;

like the below

1. High temperature Preservation test

2. Low temperature Preservation test

3. Humidity preservation test

4. Temperature cycle test

5. Noise test

-Best service by our sales and engineers, we will reply you within 12 hours, provide one year warranty;


-All can be customized by your requirment.


92 x 38 mm reversible flow fan / dc forward and reverse fan 12v 24v / DC reversible fan

How to Select a right cooling fan?

A:Where are you used? Application for what

What's size limitation do you have?

What's voltage do you require (5V DC,12/24V DC, 85V-125V ,190V-250V)?

What's power or CFM airflow required?

It will help us to give you good idea to quote

Any more information , please feel free to contact Helen ——→

We will reply you within 24 hours . Thanks

ATTN : Miss Helen

Tel : 0086-755-26070926

Mobile / wechat :+0086-15818540201

Skype : helen860615

QQ : 304994675
