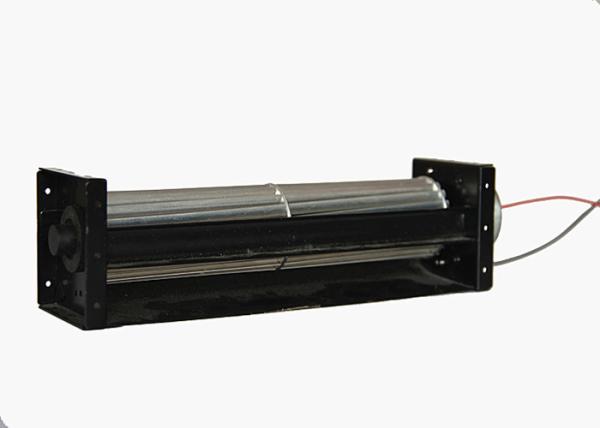

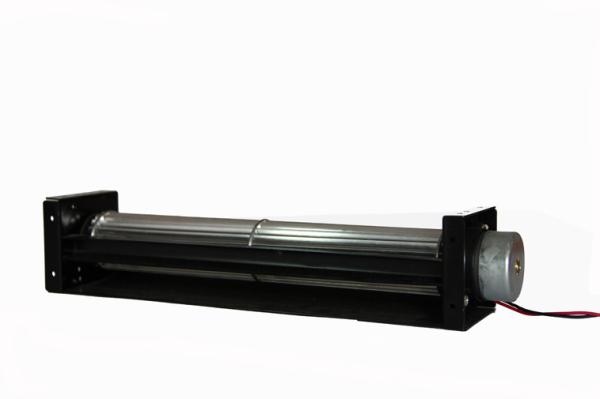

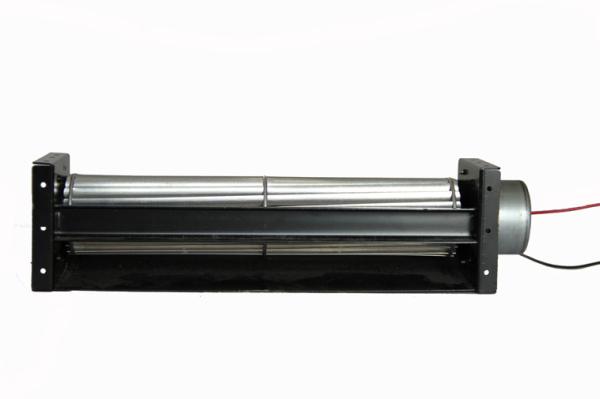

Refrigerator Cross Flow Fan 30x90MM Series / 12V 24V DC Tangential Fan For Air Condition
Refrigerator Cross Flow Fan 30x90MM Series / 12V 24V DC Tangential Fan For Air Condition
Refrigerator Cross Flow Fan 30x90MM Series / 12V 24V DC Tangential Fan For Air Condition
Refrigerator Cross Flow Fan 30x90MM Series / 12V 24V DC Tangential Fan For Air Condition
Refrigerator Cross Flow Fan 30x90MM Series / 12V 24V DC Tangential Fan For Air Condition
Refrigerator Cross Flow Fan 30x90MM Series / 12V 24V DC Tangential Fan For Air Condition
Refrigerator Cross Flow Fan 30x90MM Series / 12V 24V DC Tangential Fan For Air Condition
Refrigerator Cross Flow Fan 30x90MM Series / 12V 24V DC Tangential Fan For Air Condition
Specifications
Brand Name :
TOPFAN/ODM/OEM
Model Number :
MX30090CFM1
Certification :
CE/ROHS/UL/SGS
Place of Origin :
China
MOQ :
500pcs
Price :
us$8/pcs to us$15.00/pcs, and negotiation
Payment Terms :
T/T or western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton
Voltage :
12V , 24V
Diameter :
30mm
Length :
90mm , 150mm , 190mm , 290mm
Bearing type :
Ball Bearing
Blade Material :
Stainless Steel, Cast Iron
Application :
Home Appliances，Air Purifier, Air Condition，Washing machine, refrigerator
Description

DC Tangential Fan Cross Flow Fan , Centrifugal Cross Flow Fans , Radiator Motor

1. Purpose:

It is applied in air cleaner,elevator,humidifier , laboratory,workshop,dehumidifier,projector and copy machine, etc..

2. Expeceed Life:

Ball Bearing 50,000 hours
Sleeve Bearing 30,000hours

3. ELECTRICAL CHARACTERISTICS:

ALL MEASUREMENTS PERFORMED AT25~30℃ ROOM TEMPERATURE

& 50~80%R.H.UNLESS OTHERWISE SECIFIED.

1 RATED VOLTAGE VOLTS V 12 VDC
2 OPERATION VOLTAGE VOLTS V 7.0~13.8VDC
3 FREQUENCY Hz Hz
4 NPUT CURRENT AMP A 0.15A±10% AT RATED VOLTAGE
5 INPUT POWER WATTS W 1.8W ±10% AT RATED VOLTAGE
6 ROTATION SPEED RPM RPM 3200±10%
7 ACOUSTICAL NOISE(AVG) dB(A) dB(A) ≤35 DETAILS SEE ATTACHED PAGE.
8 MAX .AIR-FLOW m³ /mim Q 0.6

TWO-CHAMBER METHODS

DEAILS SEE ATTACHED PAGE.
9 MAX . AIR-PRESSURE mmAq P 1.9

TWO-CHAMBER METHODS

DEAILS SEE ATTACHED PAGE.
10

INSULATION

RESISTANCE

MEG.

OHM

 MΩ >20 MΩ

BETWEEN FRAME AND

TERMINAL
11 DIELECTRIC STRENGTH 1800V,3S,1MA

BETWEEN FRAME AND

TERMINAL.
12 ROTARY DIRECTION CC W
13 INSULATION CLASS CLASS E
14 LIFE EXPECTANC 30000 Hours at 25℃/65%RH

4. ENVIRONMENTAL:

4-1.OPERATING TEMPERATURE----------------------- -20 TO+50℃(CLASS E)

4-2.STORAGE TEMPERATURE ------------------------- -30 TO+75℃

4-3.OPERATING HOMIDITY-----------------------------------RH20%-80%

5. ENVIRONMENTAL:

5-1.OPERATING TEMPERATURE----------------------- -20 TO+50℃(CLASS E)
5-2.STORAGE TEMPERATURE ------------------------- -30 TO+75℃
5-3.OPERATING HOMIDITY-----------------------------------RH20%-80%

6: Specification:
Refrigerator Cross Flow Fan 30x90MM Series / 12V 24V DC Tangential Fan For Air Condition



Purpose:

Refrigerator Cross Flow Fan 30x90MM Series / 12V 24V DC Tangential Fan For Air Condition

Any more information , please feel free to contact Helen --→

We will reply you within 24 hours . Thanks

Skype : helen860615

QQ : 304994675

Tel : 86 755 26070926

Mobile :0086-15818540201
