9TJ24P0H61 San Ace 4150RPM 24V DC Centrifugal Fan
9TJ24P0H61 San Ace 4150RPM 24V DC Centrifugal Fan
9TJ24P0H61 San Ace 4150RPM 24V DC Centrifugal Fan
9TJ24P0H61 San Ace 4150RPM 24V DC Centrifugal Fan
Specifications
Brand Name :
San Ace/MX/OEM/ODM
Model Number :
9TJ24P0H61/9TJ48P0H01
Certification :
CE/ROHS/UL/SGS
Place of Origin :
China
MOQ :
500pcs
Price :
us$5/pcs to us$10.00/pcs, and negotiation
Payment Terms :
T/T or western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton box or we can pack according the customer's requirements
Voltage :
24V/48V
Bearing type :
Ball bearing
Speed :
4150rpm
Max air Flow :
226CFM
Material :
Plastic
Noise :
61dB-A
Description

133 x 91mm San Ace DC Centrifugal Fan / 9TJ24P0H61 High Pressure 24V DC Blower

Description:

·Material :Motor case: Aluminum (Black coating), Impeller: Plastic (Flammability: UL 94V-0).

·Expected life:See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60ºC, rated voltage).

·Expected life at 40ºC is for reference only.

·Motor protection function:Locked rotor burnout protection, Reverse polarity protection.

·Dielectric strength : 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and motor case).

·Insulation resistance:10 MΩ or more with a 500 VDC megger (between lead wire conductors and motor case).

·Sound pressure level (SPL) : At 1 m away from the air inlet.

·Storage temperature :-30 to +70ºC (Non-condensing).

·Lead wire:Red & Black or (Sensor) Yellow or (Control )Brown.

Mass : 660 g

A: Specifications

The models listed below have pulse sensors with PWM control function.

9TJ24P0H61 San Ace 4150RPM 24V DC Centrifugal Fan

* PWM input frequency is 25 kHz; models without specifications at 0% PWM duty cycle have zero fan speed at 0%.

B: (Main Materials, Parts Specification):

Bearing √ (Dual Ball Bearing) ◊ (Sleeve Bearing)
Frame √ PBT of 94V-0. ◊ Die-cast Aluminum Alloy
Impeller √ PBT of 94V-0. ◊ Steel
Bobbin PBT of 94V-0.
Lead Wire √ Red(+) √ Black(-) ◊ Blue(PWM) 1571 28#
◊ Yellow(FG) ◊ White(RD) 2 wires 100±10mm
Connector No
Tube No


C: Electrical Specification:

ITEM Specification. Condition
Locked Rotor Protection ◊ Safety Condition

√

 Auto power off after locked at rated voltage for 1sec
After auto power off ,circuit attempt restart in 2 to 6sec
Polarity Protection √ Open circuit when Vcc&GND are exchanged
◊ Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged
Insulation Resistance 10MΩ Between unshielded wire and frame at 500VDC/min
Dielectric Strength 5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min
Special Function ◊ Soft Start
5s (0 to Max speed)		 ◊ Current Limiter

Airflow - Static Pressure Characteristics / PWM Duty:

9TJ24P0H61 San Ace 4150RPM 24V DC Centrifugal Fan9TJ24P0H61 San Ace 4150RPM 24V DC Centrifugal Fan

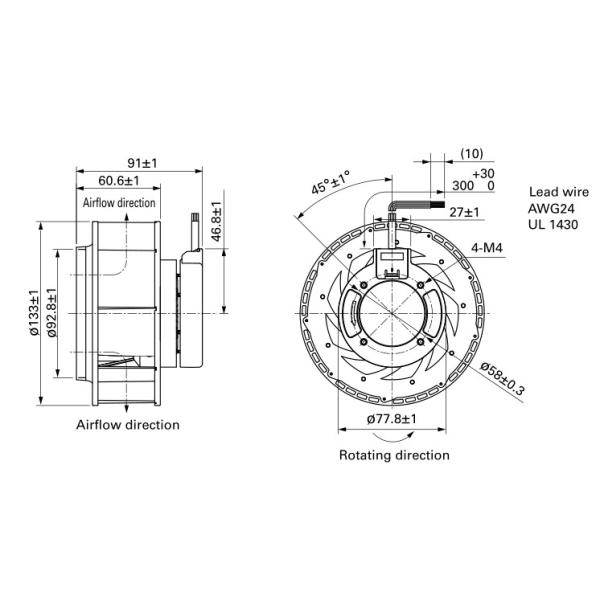

Dimensions (unit: mm)

9TJ24P0H61 San Ace 4150RPM 24V DC Centrifugal Fan
