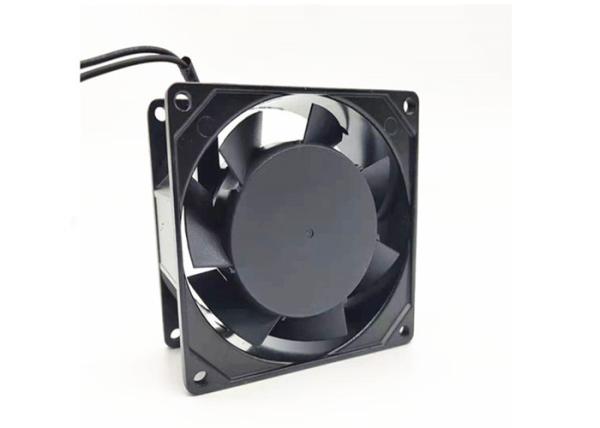

EBM PAPST Metal Frame 220V AC Brushlees Fan For Transducer
EBM PAPST Metal Frame 220V AC Brushlees Fan For Transducer
EBM PAPST Metal Frame 220V AC Brushlees Fan For Transducer
EBM PAPST Metal Frame 220V AC Brushlees Fan For Transducer
EBM PAPST Metal Frame 220V AC Brushlees Fan For Transducer
EBM PAPST Metal Frame 220V AC Brushlees Fan For Transducer
Specifications
Brand Name :
MX
Model Number :
MX8038ABH22
Certification :
CE ROHS
Place of Origin :
GuangDong / China
MOQ :
500pcs
Price :
USD + 5.25 / 5.85 + Piece
Payment Terms :
T / T , paypal
Supply Ability :
8000 + Piece + A day
Delivery Time :
10 - 15 Working Days
Packaging Details :
Carton Box
Size :
80mm X 80mm X 38mm
Voltage :
110V/220V
Bearing Type :
Ball bearing
Speed :
2500/2800rpm
Motor :
Impedence protected
Weight :
420g
Current :
0.13A / 0.12A
Power :
11/13W
Thickness :
38mm
Max air flow :
26/32CFM
Description

EBM PASAT 80mm Metal Frame 220v Ac Brushlees Fan For Transducer

Frame and Impeller: Aluminum ,Plastic (94V-0),PBT
Bearing Type: Sleeve bearing&Ball bearing
Function Range: FG IP58
Leadwire: Red Wire Positive(+),Black Wire Negative(-)
Operating Voltage: 220V
Tempetature Range: –20℃ to +70℃
Motor: Impedance Protected and Reverse Polarity Protected

Specification

Model Bearing Type Rated Voltage Freq. Current Amp Input Power Speed Max Air Flow Max Static Pressure Noise Level Weight
Part No. S B Y VDC Hz Amp Watt RPM CFM m3/min Inch-H2O dB-A g
MX8038ABH11 B 110/120 50/60 0.13 11 2600/3000 26/32 0.74/0.9 2.65/3.26 31/37 420
MX8038ABM11 B 110/120 50/60 0.12 11 2300/2700 25/29 0.7/0.82 2.54/2.95 30/35 420
MX8038ABH22 B 220/240 50/60 0.08 13 2600/3000 26/32 0.74/0.9 2.65/3.26 31/37 420
MX8038ABM22 B 220/240 50/60 0.07 13 2300/2700 25/29 0.7/0.82 2.54/2.95 30/35 420

Dismension

product pictur

Company Information

ShenZhen Topfan China is a professional manufaturer with 11 years experience Which produces AC fan, DC fan,

brushless fan, blower fan and EC fan. Our main markets are south Asia,south America, Europe.

“Concentrate on the sevice of customer” is our purpose.

EBM PAPST Metal Frame 220V AC Brushlees Fan For Transducer

Packaging & Shipping

Packing

Paperboard---------Cartons-------- Card board-----Containers

EBM PAPST Metal Frame 220V AC Brushlees Fan For Transducer

Shipping

Fast logistics system---- shipping will be arranged within 24 hours

Safe develivery ----- specialized trucks for shipping
