15.9CFM 24V DC 50x50x15mm Equipment Cooling Fans
15.9CFM 24V DC 50x50x15mm Equipment Cooling Fans
15.9CFM 24V DC 50x50x15mm Equipment Cooling Fans
15.9CFM 24V DC 50x50x15mm Equipment Cooling Fans
15.9CFM 24V DC 50x50x15mm Equipment Cooling Fans
15.9CFM 24V DC 50x50x15mm Equipment Cooling Fans
Specifications
Brand Name :
MX
Model Number :
MX5015ABU2
Certification :
CE/ROHS/UL/SGS
Place of Origin :
China
MOQ :
500pcs
Price :
us$1.5/pcs to us$5.00/pcs, and negotiation
Payment Terms :
T/T or western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton box
Voltage :
12V/24V/48V
Speed :
6500rpm
Max air Flow :
15.9CFM
Expected Life :
80,000-30,000 hours(40C)
Input Power :
2.40Watt
Current :
0.2A
Bearing Type :
Ball Bearing
Color :
Black
Description

High temperature fan 50x50x15mm dc fan, 24V DC high temperature axial fan, high cfm dc fan


Description:

50x50x15mm High temperature resistant fan, low noise and long life expectancy, are commonly used in HVAC systems,machinery for heating, ventilating, air conditioning, drying, dehumidifying, etc. Such as electronic air cleaner , hand dryers,electronic oven, gas oven, electronic fireplace, gas fireplace, electric fan good balance condition,etc.

A. General Specifications:

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX5015AB(S/Y)H5 B.S.Y 5 3.5-5.5 0.50 2.50 6000 14.74 0.42 0.21 52.76 34.00 29.00
MX5015AB(S/Y)M5 B.S.Y 5 3.5-5.5 0.35 1.75 5500 13.29 0.38 0.18 45.11 31.00 29.00
MX5015AB(S/Y)L5 B.S.Y 5 3.5-5.5 0.25 1.25 5000 12.86 0.36 0.16 40.89 27.00 29.00
MX5015AB(S/Y)D5 B.S.Y 5 3.5-5.5 0.20 1.00 4500 11.29 0.32 0.13 32.36 25.00 29.00
MX5015AB(S/Y)U1 B.S.Y 12 7.0-13.8 0.20 2.40 6500 15.90 0.45 0.25 62.57 36.00 29.00
MX5015AB(S/Y)H1 B.S.Y 12 7.0-13.8 0.16 1.92 6000 14.74 0.42 0.21 52.76 34.00 29.00
MX5015AB(S/Y)M1 B.S.Y 12 7.0-13.8 0.14 1.68 5500 13.29 0.38 0.18 45.11 31.00 29.00
MX5015AB(S/Y)L1 B.S.Y 12 7.0-13.8 0.12 1.44 5000 12.86 0.36 0.16 40.89 27.00 29.00
MX5015AB(S/Y)D1 B.S.Y 12 7.0-13.8 0.10 1.20 4500 11.29 0.32 0.13 32.36 25.00 29.00
MX5015AB(S/Y)U2 B.S.Y 24 14.0-27.6 0.12 2.88 6500 15.90 0.45 0.25 62.57 36.00 29.00
MX5015AB(S/Y)H2 B.S.Y 24 14.0-27.6 0.10 2.40 6000 14.74 0.42 0.21 52.76 34.00 29.00
MX5015AB(S/Y)M2 B.S.Y 24 14.0-27.6 0.08 1.92 5500 13.29 0.38 0.18 45.11 31.00 29.00
MX5015AB(S/Y)L2 B.S.Y 24 14.0-27.6 0.07 1.68 5000 12.86 0.36 0.16 40.89 27.00 29.00
MX5015AB(S/Y)D2 B.S.Y 24 14.0-27.6 0.06 1.44 4500 11.29 0.32 0.13 32.36 25.00 29.00

B. Main Materials, Parts Specification:

1. Bearing: Hydraulic Bearing

2. Frame: PBT of UL94V-0.

3. Impeller: PBT of UL94V-0.

4. Lead Wire:Red(+),Black(-).

C:Environmental Specification:

ITEM Specification. Condition
01 Operating Temp. Range Temperature : -40 ℃ ~130℃
Humidity :15%~ 90% RH (Frost Eliminated)
02 Storage Temp. Range Temperature

: -4

-40 ℃ ~130℃
Humidity :15%~ 90% RH (Frost Eliminated)

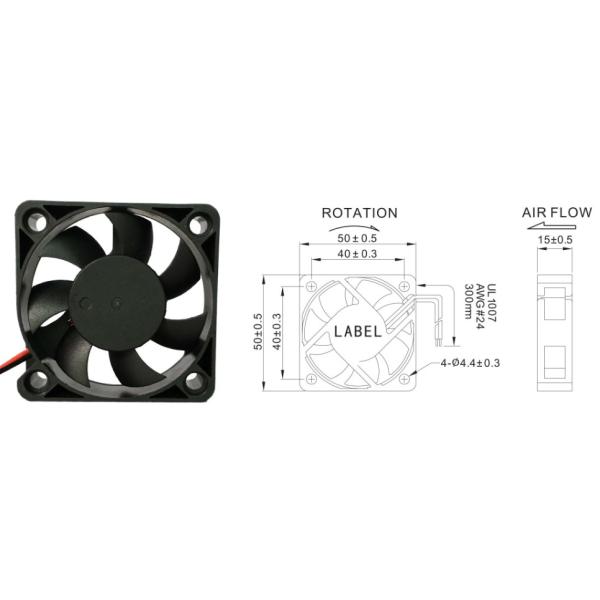

D: Dimensions (Unit:mm)
15.9CFM 24V DC 50x50x15mm Equipment Cooling Fans

Carton and foam boxes:

15.9CFM 24V DC 50x50x15mm Equipment Cooling Fans

FAQ

- Fast lead time: sample in stock, just need 1-2days, for 1000pcs, just 2 weeks;

-OEM service based on MOQ1000pcs;

-Best price from factory;

-Best quality cooling fans, all fans will be done 100% testing before the fans sent out;

like the below

1. High temperature Preservation test

2. Low temperature Preservation test

3. Humidity preservation test

4. Temperature cycle test

5. Noise test

-Best service by our sales and engineers, we will reply you within 12 hours, provide one year warranty;


-All can be customized by your requirment.


15.9CFM 24V DC 50x50x15mm Equipment Cooling Fans

How to Select a right cooling fan?

A:Where are you used? Application for what

What's size limitation do you have?

What's voltage do you require (5V DC,12/24V DC, 85V-125V ,190V-250V)?

What's power or CFM airflow required?

It will help us to give you good idea to quote

Any more information , please feel free to contact Helen ——→

We will reply you within 24 hours . Thanks

ATTN : Miss Helen

Tel : 0086-755-26070926

Mobile / wechat :+0086-15818540201

Skype : helen860615

QQ : 304994675
