Small DC Cooling Fan / Box Motor Fan Plastic 30 × 30 × 7mm 4.07CFM Max Air Flow
Small DC Cooling Fan / Box Motor Fan Plastic 30 × 30 × 7mm 4.07CFM Max Air Flow
Small DC Cooling Fan / Box Motor Fan Plastic 30 × 30 × 7mm 4.07CFM Max Air Flow
Small DC Cooling Fan / Box Motor Fan Plastic 30 × 30 × 7mm 4.07CFM Max Air Flow
Specifications
Brand Name :
MX/ODM/OEM
Model Number :
MX3007AB(S)U5
Certification :
CE/ROHS/UL/SGS
Place of Origin :
China
MOQ :
500pcs
Price :
us$1.5/pcs to us$3.00/pcs, and negotiation
Payment Terms :
T/T or western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton
Voltage :
5v/12v
Material :
Plastic
Bearing type :
Ball Bearing/Sleeve bearing/Hydraulic bearing
Motor :
Impedance Protected and Reverse Polarity Protected
Speed :
12000rpm
Max air Flow :
4.07CFM
Description

30 × 30 × 7 mm DC Brushless Cooling Fan / Small DC Cooling Fan / Box Motor Fan

Brushless axial dc fan 30mm, low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.


Description:

● Brushless DC Fan, Axial DC Fan, DC Motor Fan,CPU Fan, Computer case fan, laptop fan, PWM Fan, FG cooling fan, LED Digital signage
● Various Size
● High speed , Middle speed, Low speed
● Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
● 5 blades 7 blades or 9 blades
● 5V DC 12V DC 24V DC or 48V DC
● Ball bearing or Sleeve bearing or Hydraulic bearing
● Terminal or Lead wire
● Waterproof explosion proof or high proof are can be satisfied.


Important Note:

Rated Current: Rated Current shall be measured after 3 minutes of continuos rotation at rated voltage.
Rated Speed: Rated Speed shall be measured after 3 minutes of continuos rotation at rated voltage
Start Voltage: The voltage which is able to start the fan to operate by suddenly switching “ON”
Dropping test standard: Drop a minimum packing box in a height of 30 cm for perpendicular free falling motion to the surface of wooden plate of 10 cm. After test, connect the fan to the power, the fan still in normal operation.


A: Specifications:

ItemSpecification/Condition
1Model No.

MX3007ASH5

2Outline. Dimension

30*30*7.7mm

3Operating VoltageDC 4.5-5.5V
4Rated .voltageDC 5.0V
5Starting VoltageDC ≤3.5V on/off
6Rated current0.13±0.02A

a. Rated .voltage
b.25℃ 65% RH

c.After testing for 5 minutes

7Power consumption0.65±0.10W
8Speed10000±15%RPM
9Max Airflow

3.86CFM(MAX:4.44CFM)
(MIN:3.28CFM)

a. Rated .voltage
b. AMCA Standard
C. Rated current

Air .Static Pressure

3.59mmH2O(MAX:4.13mmH2O
(MIN:3.05mmH2O)

10

Noise Level

33.35dB(MAX:38.35dB)
(MIN:28.35dB)

a. Rated Voltage
b. Non-Echo Chamber
c. Standard:CNS 8753 / ISO 3744
d. Test Condition :ISO 7779
e. Distance: 1.0 M

11Life expectancy30000Hrs 25℃

MTTF (Mean Time To Failure)
Conf. Level 90%)

12No.of.Blade7 Blade
13No.of.Pole4 Poles
14Rotating Directionanticlockwise
15Lock Protection□ NO
16Polarity Protection
  • YES
17Overvoltage protection□ NO
18Overcurrent protection)□ NO
19FG□ NO
20PWM function□ NO


B: Main Materials/parts Specification

Materials/partsSpecification
1Plastic Material /Blade,HousingPBT Black Frame
2Bearing TypeHydraulic Bearing
3Lead WireUL1061 30AWG or UL1571 30AWG wires 60mm
4Connector2P No Connector
RedBlack
VCCGND



C: Electrical Specifically

1Insulation Resistance

10MΩ/between unshackled wire and frame at
500VDC/min

2Dielectric Strength5Ma Max./Measured between lead wire(+)and frame at 500VAC/min


D: Environmental Specification

1Operating Temp .Range

Temperature:-10℃~+60℃
Humidity:35%~85%RH

2Storage Temperature

Temperature:-40℃~+70℃
Humidity:35%~85%RH

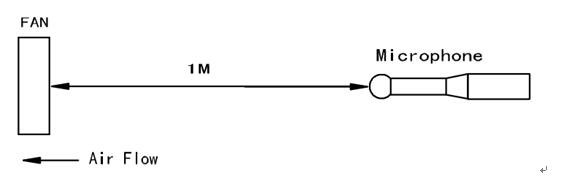

E: Acoustical Noise
Fan is hanged in anechoic chamber,noise is measured at rated voltage in free air in anechoic chamber with microphone at adistance of one meter from the air intake .

Small DC Cooling Fan / Box Motor Fan Plastic 30 × 30 × 7mm 4.07CFM Max Air Flow
Dimensions (Unit:mm)

Small DC Cooling Fan / Box Motor Fan Plastic 30 × 30 × 7mm 4.07CFM Max Air Flow
Small DC Cooling Fan / Box Motor Fan Plastic 30 × 30 × 7mm 4.07CFM Max Air FlowSmall DC Cooling Fan / Box Motor Fan Plastic 30 × 30 × 7mm 4.07CFM Max Air FlowSmall DC Cooling Fan / Box Motor Fan Plastic 30 × 30 × 7mm 4.07CFM Max Air Flow
