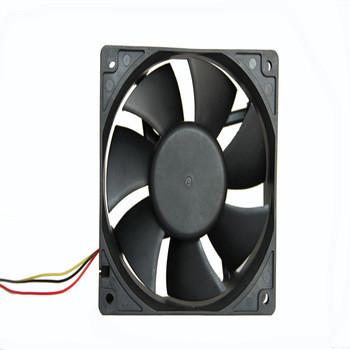

Powerful Portable Ventilation Fans DC 12V 24V 48V 4000RPM 120mm Pwm Case Axial Cooling
Powerful Portable Ventilation Fans DC 12V 24V 48V 4000RPM 120mm Pwm Case Axial Cooling
Powerful Portable Ventilation Fans DC 12V 24V 48V 4000RPM 120mm Pwm Case Axial Cooling
Powerful Portable Ventilation Fans DC 12V 24V 48V 4000RPM 120mm Pwm Case Axial Cooling
Specifications
Brand Name :
MX
Model Number :
MX12038AB(S)U1
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
usd3.5~4.6/pcs
Payment Terms :
T/T
Supply Ability :
20000pcs/week
Delivery Time :
14 workday
Packaging Details :
carton
Product name :
DC Brussless Fan
Size :
120x120x38mm
Bearing Type :
Sleeve Bearing
Weight :
262g
Color :
Black
Material :
Plastic
Description

Powerfull fan DC 12V 24V 48V 4000RPM 120mm pwm case axial cooling fan 120x120x38mm

Product Description

Frame and Impeller: Plastic (94V-0),PBT
Bearing Type: Sleeve bearing&Ball bearing
Function Range: FG RD PWM reversible IP58 IP68
Leadwire: Red Wire Positive(+),Black Wire Negative(-)
Operating Voltage: 12V 24V 48V
Tempetature Range: –20℃ to +70℃
Motor: Impedance Protected and Reverse Polarity Protected
Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX12038AB(S)U1 B.S 12 7.0-13.8 1.50 18.00 4000 165.05 4.67 0.60 150.63 58.00 262.00
MX12038AB(S)H1 B.S 12 7.0-13.8 1.00 12.00 3500 144.21 4.08 0.50 124.25 53.00 262.00
MX12038AB(S)M1 B.S 12 7.0-13.8 0.60 7.20 3000 115.29 3.27 0.34 83.55 48.00 262.00
MX12038AB(S)L1 B.S 12 7.0-13.8 0.40 4.80 2500 101.85 2.88 0.26 64.63 40.00 262.00
MX12038AB(S)U2 B.S 24 14.0-27.6 1.00 24.00 4000 165.05 4.67 0.60 150.63 58.00 262.00
MX12038AB(S)H2 B.S 24 14.0-27.6 0.60 14.40 3500 144.21 4.08 0.50 124.25 53.00 262.00
MX12038AB(S)M2 B.S 24 14.0-27.6 0.40 9.60 3000 115.29 3.27 0.34 83.55 48.00 262.00
MX12038AB(S)L2 B.S 24 14.0-27.6 0.20 4.80 2500 101.85 2.88 0.26 64.63 40.00 262.00
MX12038AB(S)U4 B.S 48 28.0-56.0 0.60 28.80 4000 165.05 4.67 0.60 150.63 58.00 262.00
MX12038AB(S)H4 B.S 48 28.0-56.0 0.40 19.20 3500 144.21 4.08 0.50 124.25 53.00 262.00
MX12038AB(S)M4 B.S 48 28.0-56.0 0.20 9.60 3000 115.29 3.27 0.34 83.55 48.00 262.00
MX12038AB(S)L4 B.S 48 28.0-56.0 0.12 5.76 2500 101.85 2.88 0.26 64.63 40.00 262.00

Company Information

Powerful Portable Ventilation Fans DC 12V 24V 48V 4000RPM 120mm Pwm Case Axial Cooling

Packaging & Shipping

Package: Carton or as customers'requirement.

Shipping: 1. Be delivered by express (UPS, FedEx, DHL, TNT).

2. Be shipped by vessel or by air or as customers’requirement.

Powerful Portable Ventilation Fans DC 12V 24V 48V 4000RPM 120mm Pwm Case Axial CoolingPowerful Portable Ventilation Fans DC 12V 24V 48V 4000RPM 120mm Pwm Case Axial Cooling
