Cooler Electrical Environmental DC Axial Fans 24 Volt With Dual Ball Bearing
Cooler Electrical Environmental DC Axial Fans 24 Volt With Dual Ball Bearing
Cooler Electrical Environmental DC Axial Fans 24 Volt With Dual Ball Bearing
Cooler Electrical Environmental DC Axial Fans 24 Volt With Dual Ball Bearing
Specifications
Brand Name :
MX/ODM/OEM
Model Number :
Model Number
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
usd2.5~9.5/pcs
Payment Terms :
T/T
Supply Ability :
20000pcs/week
Delivery Time :
14 workday
Packaging Details :
carton
color :
black
Size :
70*70*25mm
Usage :
Cooling
Type :
DC Axial fan
Voltage :
12v
Description

cooler electrical environmental fan 70*70*25mm dc electric motors 24 volt fans with CE approved

General Specifications

frame: plastic

impeller: plastic

bearing type: dual ball bearing

leadwire: ul 1007 AWG#24 or equivalent (+):red (-)black

motor: impdance protected and reverse polarity protected

Fan Performance Curve

non-condensing environment

ball bearing 50,000 hours(40°C)

operating temp range:-10°C~70°C

storage temp range:-40°C~70°C

Cooler Electrical Environmental DC Axial Fans 24 Volt With Dual Ball Bearing

Specifications

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX7025AB(S)U1 B.S 12 7.0-13.8 0.30 3.60 4500 33.57 0.95 0.24 59.43 42.00 52.00
MX7025AB(S)H1 B.S 12 7.0-13.8 0.25 3.00 4000 31.01 0.88 0.21 52.66 37.00 52.00
MX7025AB(S)M1 B.S 12 7.0-13.8 0.20 2.40 3500 27.93 0.79 0.17 42.86 32.00 52.00
MX7025AB(S)L1 B.S 12 7.0-13.8 0.15 1.80 3000 23.02 0.65 0.13 31.28 28.00 52.00
MX7025AB(S)U2 B.S 24 14.0-27.6 0.20 4.80 4500 33.57 0.95 0.24 59.43 42.00 52.00
MX7025AB(S)H2 B.S 24 14.0-27.6 0.16 3.84 4000 31.01 0.88 0.21 52.66 37.00 52.00
MX7025AB(S)M2 B.S 24 14.0-27.6 0.12 2.88 3500 27.93 0.79 0.17 42.86 32.00 52.00
MX7025AB(S)L2 B.S 24 14.0-27.6 0.08 1.92 3000 23.02 0.65 0.13 31.28 28.00 52.00
MX7025AB(S)U4 B.S 48 28.0-56.0 0.07 3.36 4500 33.57 0.95 0.24 59.43 42.00 52.00
MX7025AB(S)H4 B.S 48 28.0-56.0 0.05 2.40 4000 31.01 0.88 0.21 52.66 37.00 52.00
MX7025AB(S)M4 B.S 48 28.0-56.0 0.04 1.92 3500 27.93 0.79 0.17 42.86 32.00 52.00
MX7025AB(S)L4 B.S 48 28.0-56.0 0.03 1.44 3000 23.02 0.65 0.13 31.28 28.00 52.00

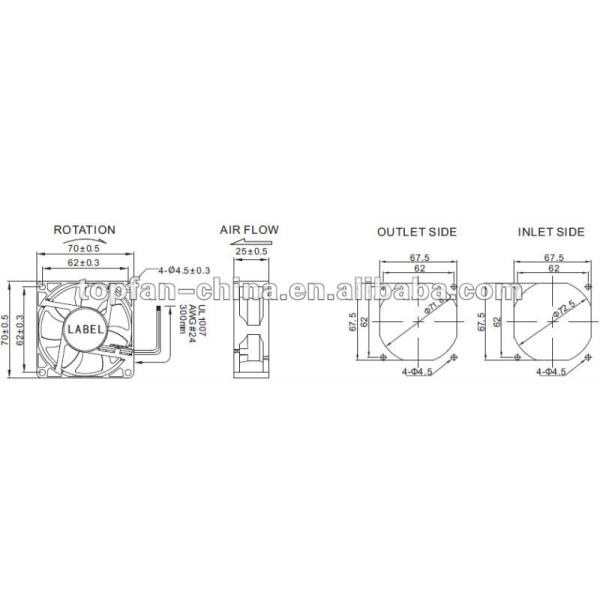

Dimensions

Cooler Electrical Environmental DC Axial Fans 24 Volt With Dual Ball Bearing

Cooler Electrical Environmental DC Axial Fans 24 Volt With Dual Ball BearingCooler Electrical Environmental DC Axial Fans 24 Volt With Dual Ball Bearing

Company Information

Cooler Electrical Environmental DC Axial Fans 24 Volt With Dual Ball BearingCooler Electrical Environmental DC Axial Fans 24 Volt With Dual Ball Bearing

Packaging & Shipping

Cooler Electrical Environmental DC Axial Fans 24 Volt With Dual Ball BearingCooler Electrical Environmental DC Axial Fans 24 Volt With Dual Ball Bearing

Certifications

Cooler Electrical Environmental DC Axial Fans 24 Volt With Dual Ball Bearing

Contact Us

If you have any question pls contact us
QQ: 3146648329
Wechat: Mollyshioops
Tel/Whatsapp: +86-15270344076

Cooler Electrical Environmental DC Axial Fans 24 Volt With Dual Ball Bearing
