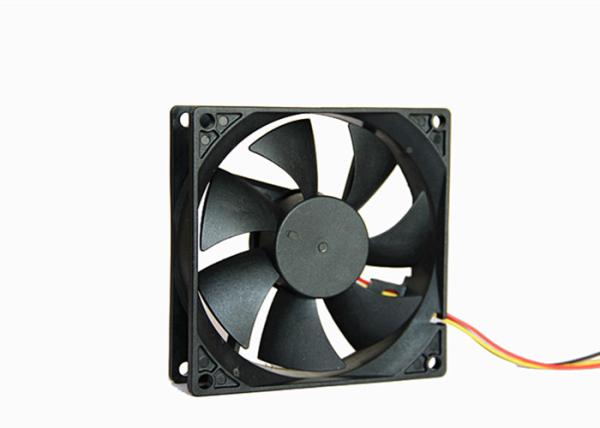

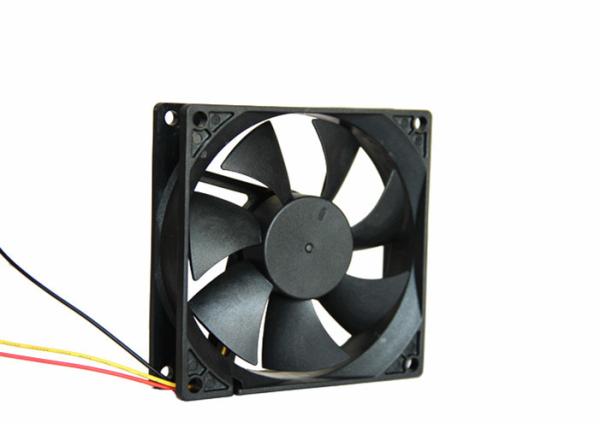

Bladeless Dc Brushless Motor 92x92x25mm PWM Speed Contral Fan For Computer
Bladeless Dc Brushless Motor 92x92x25mm PWM Speed Contral Fan For Computer
Bladeless Dc Brushless Motor 92x92x25mm PWM Speed Contral Fan For Computer
Bladeless Dc Brushless Motor 92x92x25mm PWM Speed Contral Fan For Computer
Specifications
Brand Name :
MX
Model Number :
MX
Certification :
CE ROHS
Place of Origin :
GuangDong / China
MOQ :
500pcs
Price :
USD + 2.6 / 2.9 + Piece
Payment Terms :
T / T , paypal
Supply Ability :
8000 + Piece + A day
Delivery Time :
10 - 15 Working Days
Packaging Details :
Carton Box
Size :
92mm X 92mm X 25mm
Voltage :
12V/24V/48V
Bearing Type :
Ball bearing
Speed :
2500 - 4000rpm
Motor :
Impedence protected
Weight :
78g
Current :
0.15 - 0.60A
Power :
2.4-12W
Thickness :
25mm
Max air flow :
30.96 - 60.73CFM
Description

Bladeless dc brushless motor 92x92x25mm PWM speed contral fan

Product Description

PWM speed contral

First Level ----------- high speed 4000rpm(±10%)

Second Level -------- middle speed 3000rpm(±10%)

Third Level ----------- low speed 2500rpm(±10%)

Model and Specification

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX9225AB(S/Y)U1 B.S.Y 12 7.0-13.8 0.60 7.20 4000 63.73 1.80 0.22 55.80 47.00 78.00
MX9225AB(S/Y)H1 B.S.Y 12 7.0-13.8 0.50 6.00 3500 54.98 1.56 0.18 43.74 41.00 78.00
MX9225AB(S/Y)M1 B.S.Y 12 7.0-13.8 0.40 4.80 3000 46.23 1.31 0.13 31.68 37.00 78.00
MX9225AB(S/Y)L1 B.S.Y 12 7.0-13.8 0.30 3.60 2500 37.93 1.07 0.09 22.95 31.00 78.00
MX9225AB(S/Y)D1 B.S.Y 12 7.0-13.8 0.20 2.40 2000 30.96 0.88 0.06 16.18 25.00 78.00
MX9225AB(S/Y)U2 B.S.Y 24 14.0-27.6 0.50 12.00 4000 63.73 1.80 0.22 55.80 47.00 78.00
MX9225AB(S/Y)H2 B.S.Y 24 14.0-27.6 0.40 9.60 3500 54.98 1.56 0.18 43.74 41.00 78.00
MX9225AB(S/Y)M2 B.S.Y 24 14.0-27.6 0.30 7.20 3000 46.23 1.31 0.13 31.68 37.00 78.00
MX9225AB(S/Y)L2 B.S.Y 24 14.0-27.6 0.20 4.80 2500 37.93 1.07 0.09 22.95 31.00 78.00
MX9225AB(S/Y)D2 B.S.Y 24 14.0-27.6 0.15 3.60 2000 30.96 0.88 0.06 16.18 25.00 78.00
MX9225AB(S/Y)U4 B.S.Y 48 28.0-56.00 0.40 19.20 4000 63.73 1.80 0.22 55.80 47.00 78.00
MX9225AB(S/Y)H4 B.S.Y 48 28.0-56.00 0.25 12.00 3500 54.98 1.56 0.18 43.74 41.00 78.00
MX9225AB(S/Y)M4 B.S.Y 48 28.0-56.00 0.20 9.60 3000 46.23 1.31 0.13 31.68 37.00 78.00
MX9225AB(S/Y)L4 B.S.Y 48 28.0-56.00 0.15 7.20 2500 37.93 1.07 0.09 22.95 31.00 78.00

Bladeless Dc Brushless Motor 92x92x25mm PWM Speed Contral Fan For Computer

Company Information

ShenZhen Topfan China is a professional manufaturer with 11 years experience Which produces AC fan, DC fan, brushless fan, blower fan and EC fan. Our main markets are south Asia,south America, Europe.

“Concentrate on the sevice of customer” is our purpose.

Bladeless Dc Brushless Motor 92x92x25mm PWM Speed Contral Fan For ComputerBladeless Dc Brushless Motor 92x92x25mm PWM Speed Contral Fan For Computer

Bladeless Dc Brushless Motor 92x92x25mm PWM Speed Contral Fan For Computer

Application:cooling fan for air curtain hand dryer anyother products

Bladeless Dc Brushless Motor 92x92x25mm PWM Speed Contral Fan For Computer

AFQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for but not free

Q: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.

How to order?

Bladeless Dc Brushless Motor 92x92x25mm PWM Speed Contral Fan For Computer

contact us

Bladeless Dc Brushless Motor 92x92x25mm PWM Speed Contral Fan For Computer
