Air Conditional DC Motor Fan 12V Tangential Blower Type 24V 2600RMP 300X45X45MM
Air Conditional DC Motor Fan 12V Tangential Blower Type 24V 2600RMP 300X45X45MM
Air Conditional DC Motor Fan 12V Tangential Blower Type 24V 2600RMP 300X45X45MM
Air Conditional DC Motor Fan 12V Tangential Blower Type 24V 2600RMP 300X45X45MM
Air Conditional DC Motor Fan 12V Tangential Blower Type 24V 2600RMP 300X45X45MM
Air Conditional DC Motor Fan 12V Tangential Blower Type 24V 2600RMP 300X45X45MM
Specifications
Brand Name :
MX
Model Number :
MX30290CNFM1
Certification :
CE, ROHS
Place of Origin :
Guangdong, China
MOQ :
100pcs
Price :
us$12.99 / pcs to us$15.99 / pcs, and negotiation
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
600, 000pcs per month
Delivery Time :
5 - 12 working days after received your payment
Packaging Details :
carton, other can be customized single package. 30 x 190MM, single package, 50pcs / box
Product name :
cross flow fan, 12V 24V blower
Rate Voltage :
12V / 24V dc
Current :
0.18A ( 12V )
Speed :
2600RMP
Bearing type :
ball bearing
Motor :
Impedance Protected And Reverse Polarity Protected
Max air flow :
49CFM
Weight :
290g
Description

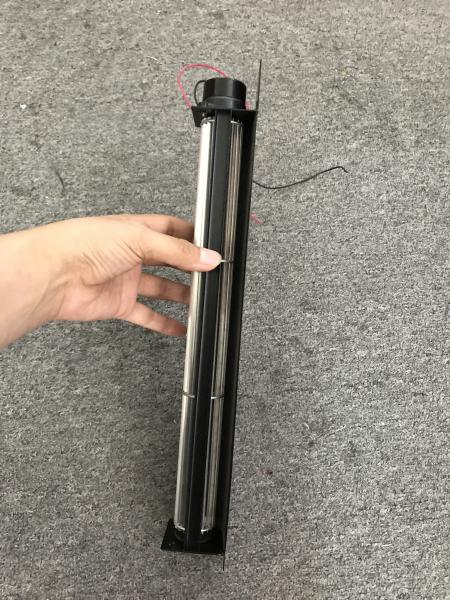

300 x 45 x 45MM air conditional dc 12v tangential blower fan 24v

WARM NOTES: If you have any question about the fans, pls feel free to talk with me, my friend.

ATTN : krystal zhou

Tel : 008675526070926

Skype / Phone: +8613128824029


Description :

Fan Name

Cross flow fan, Tangential Fan, blower fan.

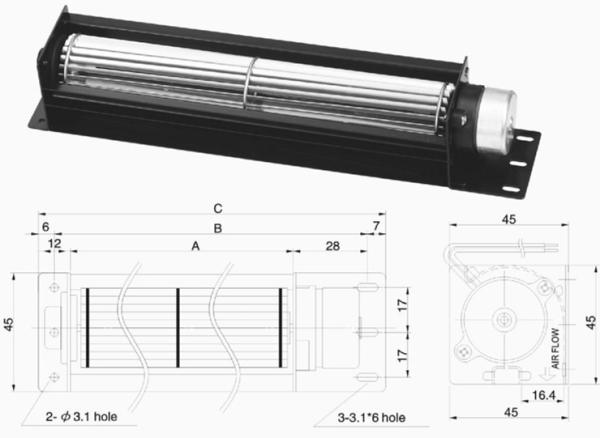

Size

30 x 290mm

Impeller diameter

Air-outlet length

30mm

290mm

Voltage

12VDC, 24V DC

Expected life

Ball bearing 50000hours

Sleeve bearing 30000hours

Working temperature

-30 ℃ ~ +75℃ (can up to -30℃ ~ +130℃)

Port settings

Terminal: without connector in common

Lead wire: wire length 300mm, two wire in common


Features: Scross flow fan from shenzhen topfan manufacturers, low noise level, reliable movement, long life, little vibration, large air volume, work stable, easy to mount, low prices, high quality.


Specification :

Air Conditional DC Motor Fan 12V Tangential Blower Type 24V 2600RMP 300X45X45MM

Application :
It is widely used in refrigerator, freezer, heaters, chassis, air conditioners, elevator / lift, industry equipment, electronic equipment, medical equipment, ground control, power supplies, welding machines, packaging and printing equipment, satellite communications, CNC, machinery and office automation products for ventilating and cooling purposes.

Air Conditional DC Motor Fan 12V Tangential Blower Type 24V 2600RMP 300X45X45MM
