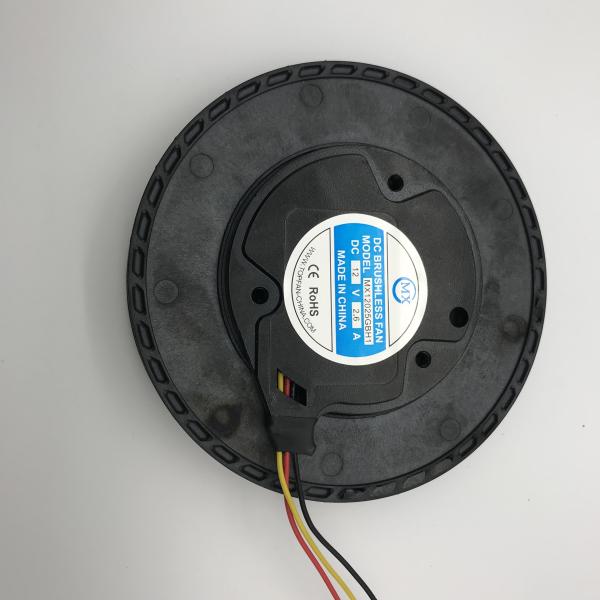

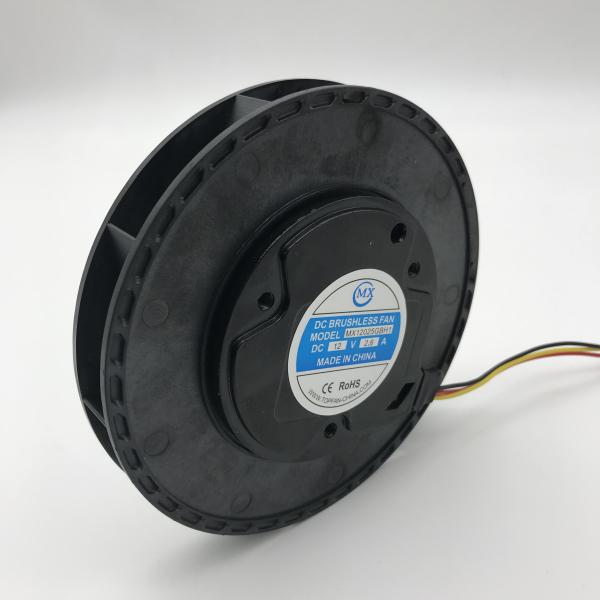

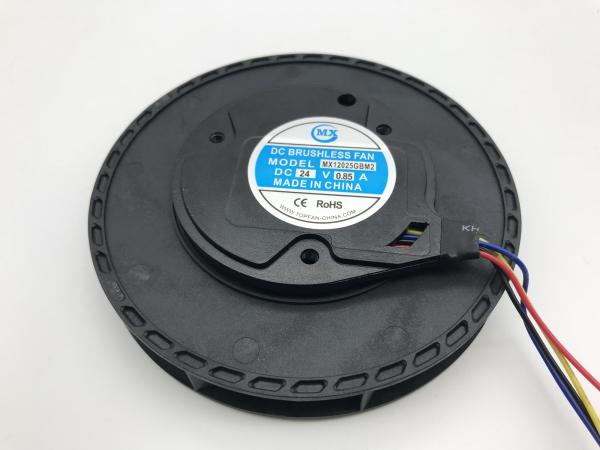

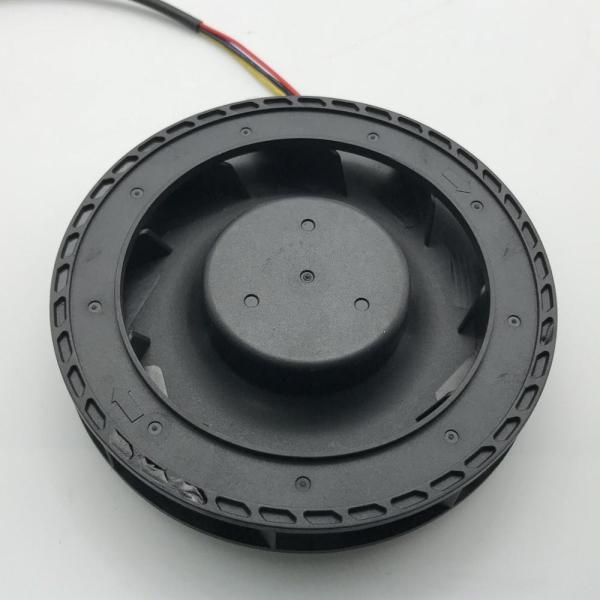

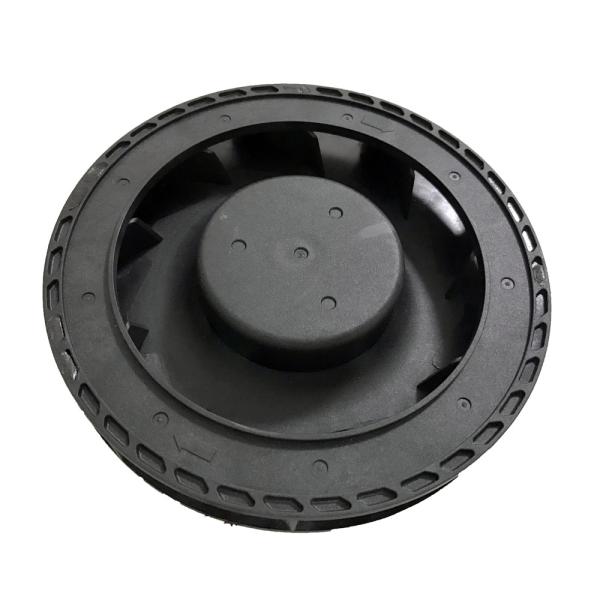

Kitchen Exhaust System Dc Centrifugal Blower 4.7 Inch Impedance Protected
Kitchen Exhaust System Dc Centrifugal Blower 4.7 Inch Impedance Protected
Kitchen Exhaust System Dc Centrifugal Blower 4.7 Inch Impedance Protected
Kitchen Exhaust System Dc Centrifugal Blower 4.7 Inch Impedance Protected
Kitchen Exhaust System Dc Centrifugal Blower 4.7 Inch Impedance Protected
Kitchen Exhaust System Dc Centrifugal Blower 4.7 Inch Impedance Protected
Kitchen Exhaust System Dc Centrifugal Blower 4.7 Inch Impedance Protected
Kitchen Exhaust System Dc Centrifugal Blower 4.7 Inch Impedance Protected
Kitchen Exhaust System Dc Centrifugal Blower 4.7 Inch Impedance Protected
Kitchen Exhaust System Dc Centrifugal Blower 4.7 Inch Impedance Protected
Kitchen Exhaust System Dc Centrifugal Blower 4.7 Inch Impedance Protected
Kitchen Exhaust System Dc Centrifugal Blower 4.7 Inch Impedance Protected
Specifications
Brand Name :
MX ( topfanchina )
Model Number :
MX12025GBH1
Certification :
CE ROHS
Place of Origin :
shenzhen, China
MOQ :
100pcs ( support two times sample order)
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30 , 000pcs per month
Delivery Time :
7 - 10 working days after received payment
Packaging Details :
Carton Box or Negotiable
Fan type :
dc centrifugal blower, purifier fan
Meterial :
plastic frame and blade
Rate voltage :
12V 24V 48V dc
Color :
black
Temperature Range :
-20°C~+70°C
Protection :
Impedance Protected
Expected life :
50000hours
Speed :
4000rpm and other rpm
Description

4.7inch kitchen exhaust system shenzhen brushless dc centrifugal fan

Appliction of DC 12V centrifugal cooling fan 120 x 25 mm :

air cooler ,

air purifier,

refrigerator,

industry equipment,

electric cabinet ventilation ,

ventilation equipment & System,

air conditioner,

refrigeration equipment,

MDBS(Mobile Data Base Station) ,

telecom power supply station.

Other recommendation

Fan Size 100 mm diameter, 42 mm 100 mm diameter, 25 mm

General information

Fan type dc centrifugal fan
Fan size 120 mm x 25 mm
Fan feature Middle suction, centrifugal wind out
Usage Air conditioner, Air purfier, air vacuum cleaner
Life expectance 50000hours

Specification of 120 x 25mm

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX12025GB(S)H1 B.S 12 7.0-13.8 0.64 7.68 4300 85.50 2.43 2.55 634.95 50.00 232
MX12025GB(S)M1 B.S 12 7.0-13.8 0.60 7.20 4000 50.60 1.44 1.91 475.59 46.00 232
MX12025GB(S)H2 B.S 24 14.0-27.6 0.64 15.36 4300 85.50 2.43 2.55 634.95 50.00 232
MX12025GB(S)M2 B.S 24 14.0-27.6 0.60 14.40 4000 56.10 1.59 1.91 475.59 46.00 232
MX12025GB(S)H4 B.S 48 28.0-56.0 0.64 30.72 4300 85.50 2.43 2.55 634.95 50.00 232
MX12025GB(S)M4 B.S 48 28.0-56.0 0.60 14.40 4000 61.20 1.74 1.91 475.59 46.00 232

Please Note:

  • Rated Current: Rated Current shall be measured after 3 minutes of continuos rotation at rated voltage.
  • Rated Speed: Rated Speed shall be measured after 3 minutes of continuos rotation at rated voltage
  • Start Voltage: The voltage which is able to start the fan to operate by suddenly switching “ ON ”
  • Dropping test standard: Drop a minimum packing box in a height of 30 cm for perpendicular free falling motion to the surface of wooden plate of 10 cm. After test, connect the fan to the power, the fan still in normal operation.
  • Please do not touch and push fan blade with fingers or others. Fan blade and ball bearings may be damaged. And it caused noise defect.
  • Avoid the damage, check the correct voltage and proper polarity before connecting with power.

Company Information

Shenzhen Topfan Technology Development Co., Ltd. is a professional fan design and processing enterprises. founded in 1996 in Shenzhen China, It's a manufacturer on AC fan and DC brushless fans. Products support OEM, ODM and passedCE, RoHS certificated and good sellers both at home and abroad, the products mainly includs axial fans, cross flow fans ( tangential fan ), blower fans ( centrifugal fan), being widely used in the information technology, network communications as well as industrial equipment, medical equipment, home appliances and others.
