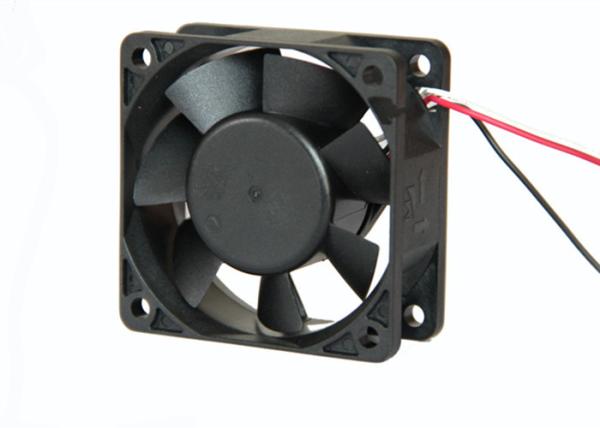

6025 Brushless Motor DC Axial Fans 25mm Thickness 30CFM With CE ROHS Approval
6025 Brushless Motor DC Axial Fans 25mm Thickness 30CFM With CE ROHS Approval
6025 Brushless Motor DC Axial Fans 25mm Thickness 30CFM With CE ROHS Approval
6025 Brushless Motor DC Axial Fans 25mm Thickness 30CFM With CE ROHS Approval
Specifications
Brand Name :
MX
Model Number :
MX
Certification :
CE ROHS
Place of Origin :
GuangDong / China
MOQ :
500pcs
Price :
USD + 2.6 / 3.1 + Piece
Payment Terms :
T / T , paypal
Supply Ability :
8000 + Piece + A day
Delivery Time :
10 - 15 Working Days
Packaging Details :
Carton Box
Size :
60mm X 60mm X 25mm
Voltage :
12V/24V/48V
Bearing Type :
Ball bearing
Speed :
3000 - 6000rpm
Motor :
Impedence protected
Weight :
56g
Current :
0.06 - 0.45A
Power :
0.72-8.64W
Thickness :
25mm
Max air flow :
13.7 - 19.4CFM
Description

6025 DC brushless motor fan 25mm thickness 30CFM cooling fan with CE ROHS approved


Product Description


Frame and Impeller: Plastic (94V-0),PBT
Bearing Type: Sleeve bearing&Ball bearing
Function Range: FG RD IP58 IP68
Leadwire: Red Wire Positive(+),Black Wire Negative(-)
Operating Voltage: 5V 12V 24V
Tempetature Range: –20℃ to +70℃
Motor: Impedance Protected and Reverse Polarity Protected


Model and Specification

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX6025AB(S)U1 B.S 12 7.0-13.8 0.45 5.40 6000 29.43 0.83 0.37 91.40 45.00 56.00
MX6025AB(S)H1 B.S 12 7.0-13.8 0.25 3.00 5000 24.77 0.70 0.27 67.47 38.00 56.00
MX6025AB(S)M1 B.S 12 7.0-13.8 0.18 2.16 4000 19.15 0.54 0.17 42.56 32.00 56.00
MX6025AB(S)L1 B.S 12 7.0-13.8 0.10 1.20 3000 14.77 0.42 0.11 26.38 27.00 56.00
MX6025AB(S)D1 B.S 12 7.0-13.8 0.06 0.72 2000 9.20 0.26 0.04 10.49 23.00 56.00
MX6025AB(S)U2 B.S 24 14.0-27.6 0.25 6.00 6000 29.43 0.83 0.37 91.40 45.00 56.00
MX6025AB(S)H2 B.S 24 14.0-27.6 0.18 4.32 5000 24.77 0.70 0.27 67.47 38.00 56.00
MX6025AB(S)M2 B.S 24 14.0-27.6 0.15 3.60 4000 19.15 0.54 0.17 42.56 32.00 56.00
MX6025AB(S)L2 B.S 24 14.0-27.6 0.10 2.40 3000 14.77 0.42 0.11 26.38 27.00 56.00
MX6025AB(S)U4 B.S 48 28.0-56.0 0.18 8.64 6000 29.43 0.83 0.37 91.40 45.00 56.00
MX6025AB(S)H4 B.S 48 28.0-56.0 0.12 5.76 5000 24.77 0.70 0.27 67.47 38.00 56.00
MX6025AB(S)M4 B.S 48 28.0-56.0 0.08 3.84 4000 19.15 0.54 0.17 42.56 32.00 56.00
MX6025AB(S)L4 B.S 48 28.0-56.0 0.06 2.88 3000 14.77 0.42 0.11 26.38 27.00 56.00


Company Information

ShenZhen Topfan China is a professional manufaturer with 11 years experience Which produces AC fan, DC fan, brushless fan, blower fan and EC fan. Our main markets are south Asia,south America, Europe.
“Concentrate on the sevice of customer” is our purpose.
6025 Brushless Motor DC Axial Fans 25mm Thickness 30CFM With CE ROHS Approval6025 Brushless Motor DC Axial Fans 25mm Thickness 30CFM With CE ROHS Approval

6025 Brushless Motor DC Axial Fans 25mm Thickness 30CFM With CE ROHS Approval





Application:cooling fan for air curtain hand dryer anyother products
