Air Purifier Dehumidifier Equipment Cooling Fans High Speed Fan Motor 50*50* 20mm
Air Purifier Dehumidifier Equipment Cooling Fans High Speed Fan Motor 50*50* 20mm
Air Purifier Dehumidifier Equipment Cooling Fans High Speed Fan Motor 50*50* 20mm
Air Purifier Dehumidifier Equipment Cooling Fans High Speed Fan Motor 50*50* 20mm
Air Purifier Dehumidifier Equipment Cooling Fans High Speed Fan Motor 50*50* 20mm
Air Purifier Dehumidifier Equipment Cooling Fans High Speed Fan Motor 50*50* 20mm
Specifications
Brand Name :
MX/OEM/ODM
Model Number :
MX5020AB(S)U2
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
usd1.9-4.9/pcs
Payment Terms :
T/T
Supply Ability :
90000pcs/week
Delivery Time :
7-14 work days
Packaging Details :
CARTON
Color :
black
Bearing Type :
Ball Bearing/sleeve bearing
Expected life :
<80000 hours
Size :

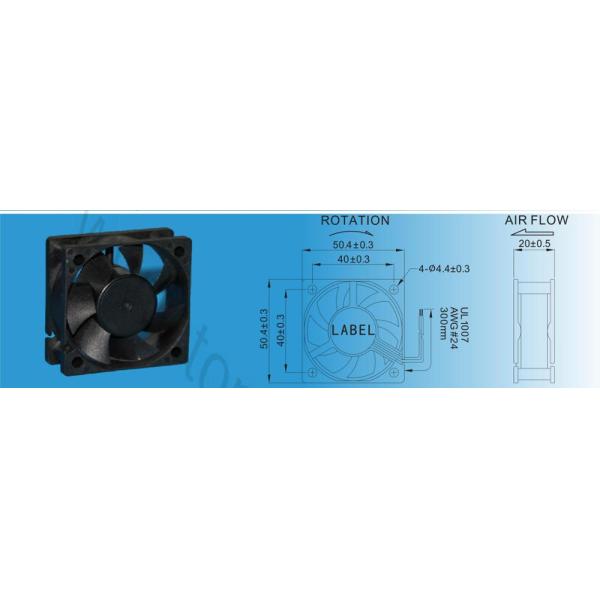

50x50x20mm
Product name :
dc fan
Usage :
Air-conditioning
Description

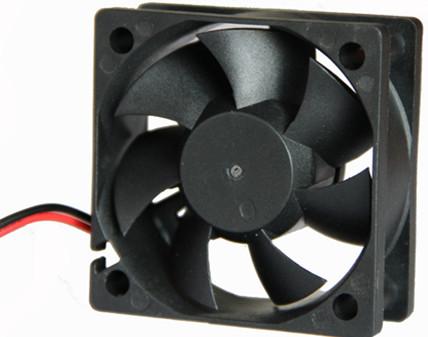

high speed fan motor 50mm X 20mm dc cooler fan for air purifier dehumidifier


Frame and Impeller:Plastic (94V-0),PBT
Bearing Type: Sleeve bearing&Ball bearing
Function Range:FG RD PWM IP58 IP68
Leadwire: Red Wire Positive(+),Black Wire Negative(-)
Operating Voltage:5V 12V 24V
Tempetature Range:–20℃ to +70℃
Motor: Impedance Protected and Reverse Polarity Protected

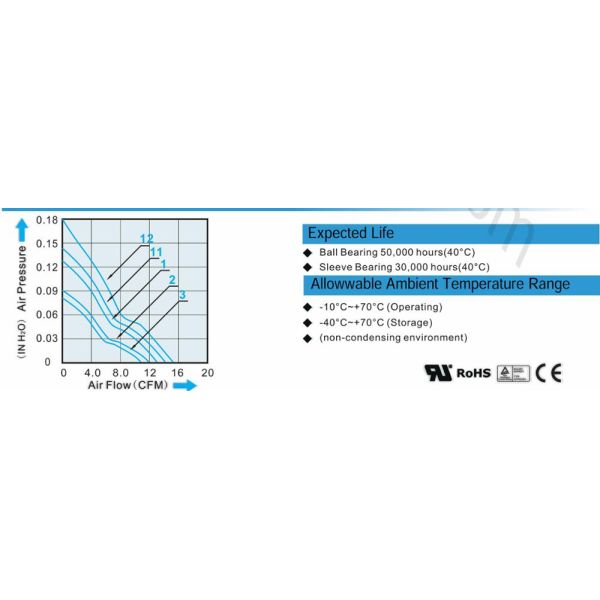

ModelBearing TypeRated VoltageOperating VoltageInput CurrentInput PowerSpeedMax Air FlowMax Static PressureNoiseWeight
Part No.B.SVDCVDCAmpWattRPMCFMm3/minInch-H2OpadB-Ag
MX5020AB(S)H5B.S53.5-5.50.422.10550015.560.440.2049.6231.0032.00
MX5020AB(S)M5B.S53.5-5.50.281.40500014.980.420.1742.8629.0032.00
MX5020AB(S)L5B.S53.5-5.50.201.00450013.700.390.1434.9126.0032.00
MX5020AB(S)U1B.S127.0-13.80.202.40650019.440.550.2972.7736.0032.00
MX5020AB(S)H1B.S127.0-13.80.182.16600017.370.490.2663.7433.0032.00
MX5020AB(S)M1B.S127.0-13.80.161.92550015.560.440.2049.6231.0032.00
MX5020AB(S)L1B.S127.0-13.80.141.68500014.980.420.1742.8629.0032.00
MX5020AB(S)D1B.S127.0-13.80.101.20450013.700.390.1434.9126.0032.00
MX5020AB(S)U2B.S2414.0-27.60.143.36650019.440.550.2972.7736.0032.00
MX5020AB(S)H2B.S2414.0-27.60.122.88600017.370.490.2663.7433.0032.00
MX5020AB(S)M2B.S2414.0-27.60.102.40550015.560.440.2049.6231.0032.00
MX5020AB(S)L2B.S2414.0-27.60.081.92500014.980.420.1742.8629.0032.00
MX5020AB(S)D2B.S2414.0-27.60.061.44450013.700.390.1434.9126.0032.00


Air Purifier Dehumidifier Equipment Cooling Fans High Speed Fan Motor 50*50* 20mm

Air Purifier Dehumidifier Equipment Cooling Fans High Speed Fan Motor 50*50* 20mm

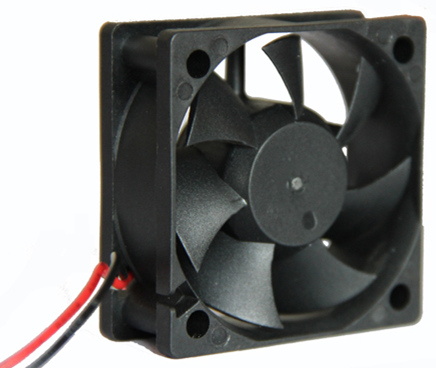

Detail photos

Air Purifier Dehumidifier Equipment Cooling Fans High Speed Fan Motor 50*50* 20mmAir Purifier Dehumidifier Equipment Cooling Fans High Speed Fan Motor 50*50* 20mm

Application


Ordinary axial fan can be used for ventilation in general factories , warehouses , offices , houses and other places , but also for air cooler ( air cooler ) , evaporator , condenser , spray drop , etc. , Flow fan . Anti - corrosion , explosion-proof axial fan with anti - corrosion materials and explosion - proof measures , and matching explosion-proof motor can be used to transport explosive , volatile , corrosive gases .
