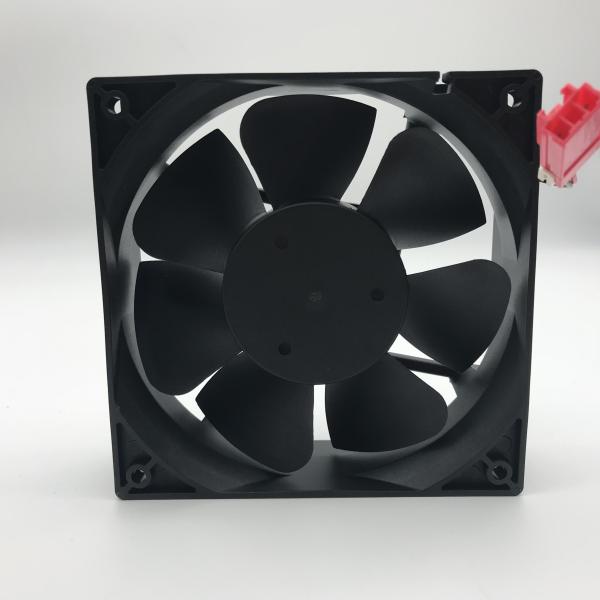

Low Noise Dc Motor 12V Axail Sleeve / Ball Bearing 120 X 38mm For Washing Machine
Low Noise Dc Motor 12V Axail Sleeve / Ball Bearing 120 X 38mm For Washing Machine
Low Noise Dc Motor 12V Axail Sleeve / Ball Bearing 120 X 38mm For Washing Machine
Low Noise Dc Motor 12V Axail Sleeve / Ball Bearing 120 X 38mm For Washing Machine
Low Noise Dc Motor 12V Axail Sleeve / Ball Bearing 120 X 38mm For Washing Machine
Low Noise Dc Motor 12V Axail Sleeve / Ball Bearing 120 X 38mm For Washing Machine
Low Noise Dc Motor 12V Axail Sleeve / Ball Bearing 120 X 38mm For Washing Machine
Low Noise Dc Motor 12V Axail Sleeve / Ball Bearing 120 X 38mm For Washing Machine
Low Noise Dc Motor 12V Axail Sleeve / Ball Bearing 120 X 38mm For Washing Machine
Low Noise Dc Motor 12V Axail Sleeve / Ball Bearing 120 X 38mm For Washing Machine
Specifications
Brand Name :
MX (from China)
Model Number :
MX12038ABL1
Certification :
CE, ROHS
Place of Origin :
Guangdong, China
MOQ :
300pcs
Price :
us$2.99 / pcs to us$3.99 / pcs, and negotiation
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
600, 000pcs per month
Delivery Time :
5 - 12 working days after received your payment
Packaging Details :
carton, other can be customized
Product name :
Most popular products, household appliance fan, DC fan, axail fan, Chassic fan
Rate Voltage :
12V, 24V, 48V
Speed :
2600RPM
Bearing type :
Sleeve bearing or Ball bearing
Motor :
Impedance Protected And Reverse Polarity Protected
Weight :
140g
Frame and impeller material :
Plastic ( 94V - 0 ), PBT
Size :
120 x 120 x 38 mm ( 12038 )
Color :
Black or White
Description

China supplier dc motor 12V axail fan low noise high quality washing machine fan 120 x 38 mm

Name: dc motor, dc fan, Computer fan, Case fan, Chassic fan, CPU fan, DC Brushless Fan, fan 120 x 120 x 38mm, 12038, 120mm dc fan, mini fan, Computer case fan, laptop fan, air cooler fan, PWM Fan, FG cooling fan, LED Digital signage, mini fridge cooler, wash machine fan, household device fan.

Application

120*120* 38 dc cooling fan be widely used in various equipment cooling, like

Home appliance: coffee machine, washing machine, refrigerator, air purifier, air cooler, air fresher, Car refrigerator (sterilization), heater, electronic toilet (also known as intelligent toilet), speaker, projector, VR player, set-top box (multi-function), LED light, hair dryer, dishwasher

Computer equipment: servers, computer & case, CPU cooler

Medical and beauty equipment: Ultrasound, oscilloscope, beauty sprayer, atomizer, beauty lamp, nail lamp, hair remover, razor.

Industrial equipment: Communication power supply, inverter power supply, inverter, inverter, UPS power supply, PC power supply, intelligent charger (charging pile), industrial control, chassis, server, welding machine and so on

Feature

Vertical fan blade in and out of the wind,

High air volume, compact size, low noise, long life.

Fan parameter
Model

Bearing

Type

Rated

Voltage

Operating

Voltage

Input

Current

Input

Power

 Speed

Max

Air Flow

Max

Static

Pressure
Part No. B.S VDC VDC Amp Watt RPM CFM

m3/

min

 Inch-H2O pa
MX12038AB(S)U1 B.S 12 7.0-13.8 1.50 18.00 4000 165.05 4.67 0.60 150.63
MX12038AB(S)H1 B.S 12 7.0-13.8 1.00 12.00 3500 144.21 4.08 0.50 124.25
MX12038AB(S)M1 B.S 12 7.0-13.8 0.60 7.20 3000 115.29 3.27 0.34 83.55
MX12038AB(S)L1 B.S 12 7.0-13.8 0.40 4.80 2500 101.85 2.88 0.26 64.63
MX12038AB(S)U2 B.S 24 14.0-27.6 1.00 24.00 4000 165.05 4.67 0.60 150.63
MX12038AB(S)H2 B.S 24 14.0-27.6 0.60 14.40 3500 144.21 4.08 0.50 124.25
MX12038AB(S)M2 B.S 24 14.0-27.6 0.40 9.60 3000 115.29 3.27 0.34 83.55
MX12038AB(S)L2 B.S 24 14.0-27.6 0.20 4.80 2500 101.85 2.88 0.26 64.63
MX12038AB(S)U4 B.S 48 28.0-56.0 0.60 28.80 4000 165.05 4.67 0.60 150.63
MX12038AB(S)H4 B.S 48 28.0-56.0 0.40 19.20 3500 144.21 4.08 0.50 124.25
MX12038AB(S)M4 B.S 48 28.0-56.0 0.20 9.60 3000 115.29 3.27 0.34 83.55
MX12038AB(S)L4 B.S 48 28.0-56.0 0.12 5.76 2500 101.85 2.88 0.26 64.63
Low Noise Dc Motor 12V Axail Sleeve / Ball Bearing 120 X 38mm For Washing Machine

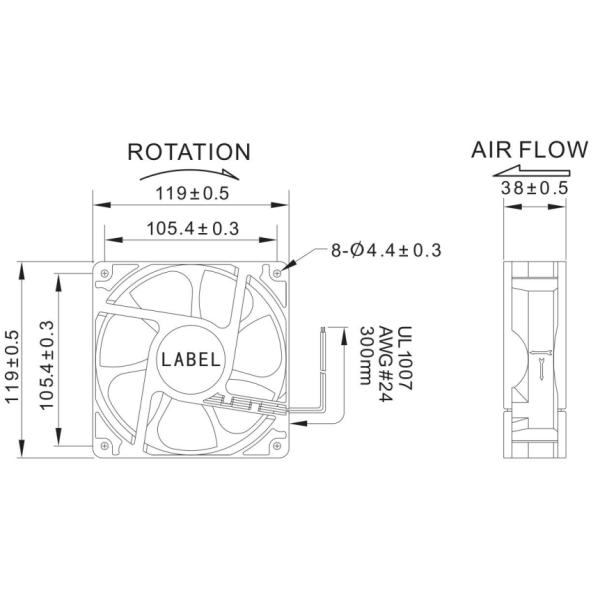

Dimension ( unit: mm )
Low Noise Dc Motor 12V Axail Sleeve / Ball Bearing 120 X 38mm For Washing Machine

Our Advantage

The size , voltage, power & speed can be made according to your requirements

Could be made with control speed ( PWM ) read speed ( FG ) and alarm ( RD ) function

Could be made with waterproof dustproof function

Could be made with waterproof dustproof function

We're professional manufacturer of cooling fans for 11 years' experience

We offer 0.5year warranty for sleeve bearing fans , 1 year warranty for ball bearing fans

How to order


1. Please tell us the model, size and number you need
2. Make PI for you
3. Send you PI to confirm the order detail
4. Please make payment for your order
5. Arrange to produce your order
6. Ship out and offer the trach number
7 After-sale services and feedback
