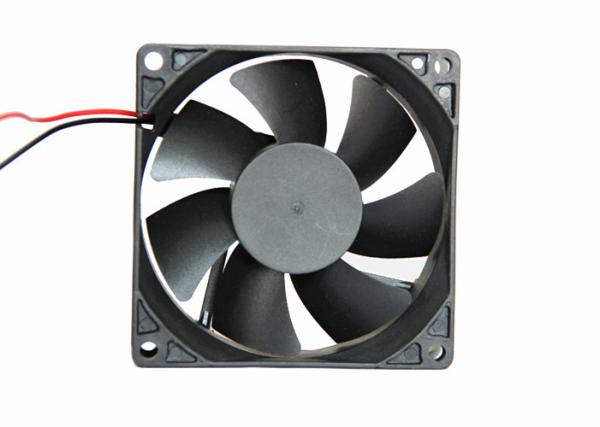

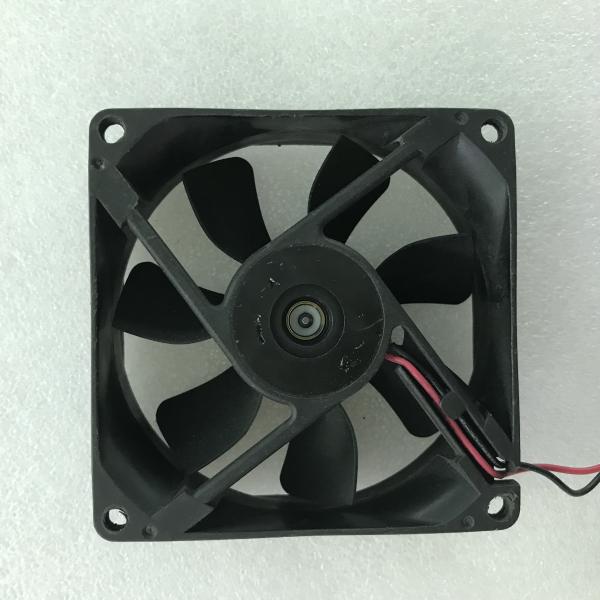

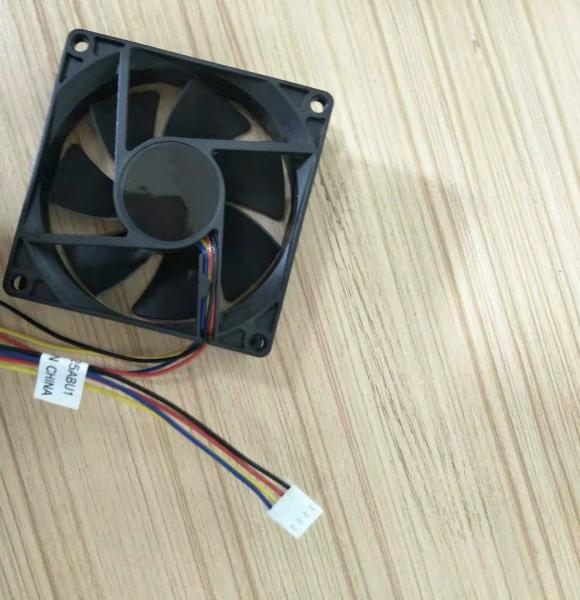

80 x 80 x 20 mm small ball bearing dc 12v brushless fan motor

Applications :

Basic information :

● Size--------------------------80 mm x 80 mm x 20 mm
● Speed--------- --------------High speed , Middle speed, Low speed
● Material------- --------------Plastic Frame and Plastic blade
● Blade number-------------- 7 blades
● Voltage----------------------12V DC / 24V DC / 48V DC
● Bearing type----------------Ball bearing or Sleeve bearing

● Expected life----------------Ball bearing 50000hours , Sleeve bearing 30000hours (40C )
● Port settings----------------Terminal or Lead wire
● Function---------------------Waterproof, explosion-proof , high temperature, dustproof and anti-corrosionare all can be satisfied.

●Operating Temperature--- -10℃ ~ +70℃

● Storage Temperature----- -40℃ ~ +70℃

Important Note :
Rated Current : Rated Current shall be measured after 3 minutes of continuos rotation at rated voltage.
Rated Speed : Rated Speed shall be measured after 3 minutes of continuos rotation at rated voltage
Start Voltage : The voltage which is able to start the fan to operate by suddenly switching “ON”
Dropping test standard : Drop a minimum packing box in a height of 30 cm for perpendicular free falling motion to the surface of wooden plate of 10 cm. After test, connect the fan to the power, the fan still in normal operation.

Specification :

Dimension (unit:mm) :

Product introduction

The following products are current products, be divided into three categories, if you need other MORE products all can be customized and contact me :

Axial fan ( size mm ) :
DC Fan : 20 X 20 X 10mm, 25 X 25 X 7mm, 25 X 25 X 10mm, 30 X 30 X 7mm, 30 X 30 X 10mm, 30 X 30 X 15mm, 35 X 50 X 50 X 10mm, 50 X 50 X 10mm, 40 X 40 X 10mm, 40 X 40 X 10mm, 40 X 40 X 60 X 60 X 20mm, 60 X 60 X 10mm, 60 X 60 X 15mm, 60 X 60 X 20mm, 60 X 60 X 25mm, 60 X 60 X 38mm, 70 X 70 X 15mm, 70 X 70 X 25mm, 80 X 80 X 10mm, 80 X 80 X 15mm, 80 X 80 X 20mm, 80 X 80 X 25mm, 80 X 80 X 32mm, 80 X 80 X32 ( Z ), 170 X 170 X 40, 170 X 150 X 51, 200 X 200 X 60mm, 120 X 120 X 38mm, 254 X 254 X 89mm and other fans
EC fan ( AC TO DC ) : ( 6030 = 60 X 60 X 30mm )

8025, 8038, 9225, 9238, 12025, 12038, 172 X 150 X 51 and other fans;

AC fan : 6030, 8025, 8038, 9225, 9238, 12025, 12038, 12738, 13538, 14045, 15051, 16062, 17055, 17238, 17251, 20060, 22581, 25489, 28080, 172 X 150 X 51 and other fans .
Blower fan ( DC ) : 3007, 4010, 6018, 5115, 7530, 9733, 12025, 12032

Cross flow fan ( DC & AC ) : 30 series, 40 series, 50 series, 60 series, 65series

Mciro fan : 1504, 1707, 1804, 2008, 2508, 3004, 3007, 3008
