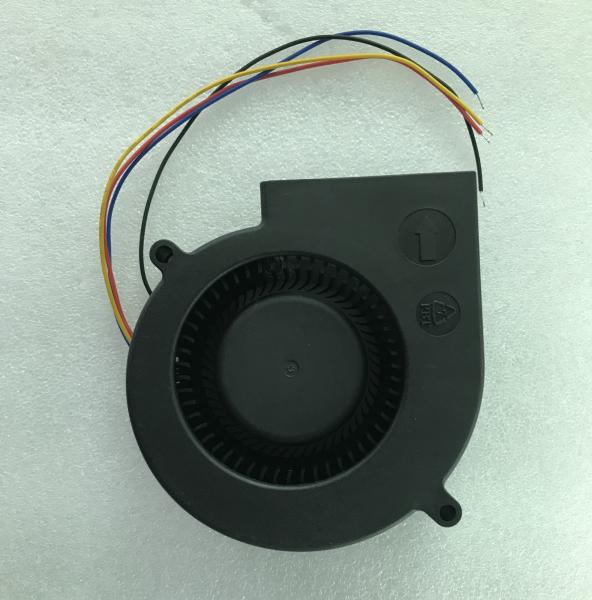

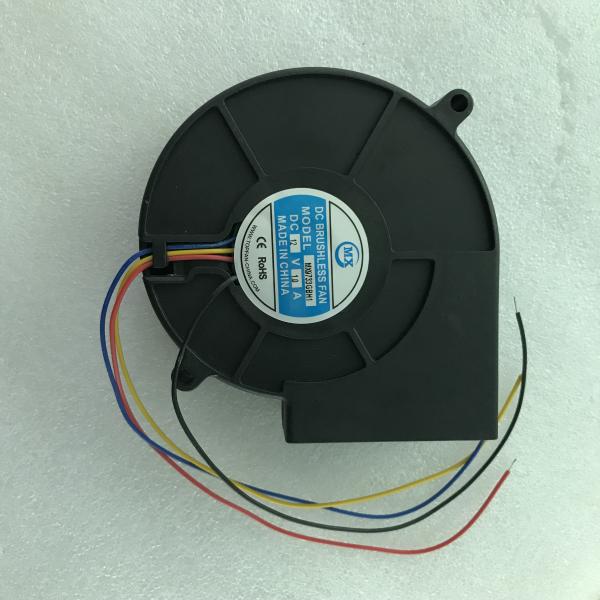

PBT DC Blower Fan High Rpm Air Blower Purifier 12v Electric Power Supply Motor
PBT DC Blower Fan High Rpm Air Blower Purifier 12v Electric Power Supply Motor
PBT DC Blower Fan High Rpm Air Blower Purifier 12v Electric Power Supply Motor
PBT DC Blower Fan High Rpm Air Blower Purifier 12v Electric Power Supply Motor
PBT DC Blower Fan High Rpm Air Blower Purifier 12v Electric Power Supply Motor
PBT DC Blower Fan High Rpm Air Blower Purifier 12v Electric Power Supply Motor
PBT DC Blower Fan High Rpm Air Blower Purifier 12v Electric Power Supply Motor
PBT DC Blower Fan High Rpm Air Blower Purifier 12v Electric Power Supply Motor
PBT DC Blower Fan High Rpm Air Blower Purifier 12v Electric Power Supply Motor
PBT DC Blower Fan High Rpm Air Blower Purifier 12v Electric Power Supply Motor
Specifications
Brand Name :
MX / OEM / ODM
Model Number :
MX9733GBH1
Certification :
CE, ROHS
Place of Origin :
Guangzhou , China
MOQ :
100pcs
Price :
us$1.23/ pcs to us$3.99.00 / pcs, and negotiation
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
600,000pcs per month
Delivery Time :
5 - 12 working days after received your payment
Packaging Details :
carton, other can be customized
Product name :
DC fan, blower centrifugal , centrifugal fan, dc fan12V 24V, dc motor fan, dc blower fan, blower motor, blower motor fan, dc brushless fan, dc 97*97*33mm,small fan, high flow fan, motor fan, air cleaner fan, air filter
Rate Voltage :
12V / 24V DC
Speed :
4500RPM, 4000RPM, 3000RPM
Bearing type :
ball bearing
Motor :
Impedance Protected And Reverse Polarity Protected
Weight :
164g
Frame and impeller material :
PBT
Description

DC high rpm air blower 12v electric power supply fan motor for air purifier 97 x 97 x 33 mm

Basic information:

Usage Air purifier, humidifier, air purifier, kitchen ventilation equipment, car seat
Frame and Impeller material PET (plastic)
Bearing type optional Sleeve Bearing and Dual Ball Bearing
Size 97 X 97 X 33 mm
Certification CE ROHS
Motor Impedence Protected and Reverse Polarity Protected

Specification:

Modle Bearing type Rated voltage Voltage range Current Power Speed Max air flow rate Max air pressure Noise level Weight
Part No. S B Y VDC VDC Amp Watt RPM CFM m3/min Inch-H2O Pa dB-A g
MX9733GB(S)U1 B.S 12 7.0-13.8 1.40 16.80 4500 29.76 0.84 1.35 337 57 164
MX9733GB(S)H1 B.S 12 7.0-13.8 1.00 12.00 4000 26.62 0.75 1.15 286.8 53 164
MX9733GB(S)M1 B.S 12 7.0-13.8 0.60 7.20 3500 23.34 0.66 0.83 206.3 49 164
MX9733GB(S)L1 B.S 12 7.0-13.8 0.40 4.80 3000 19.71 0.56 0.53 132.6 45 164
MX9733GB(S)U2 B.S 24 14.0-27.6 1.00 24.00 4500 29.76 0.84 1.35 337 57 164
MX9733GB(S)H2 B.S 24 14.0-27.6 0.80 19.20 4000 26.62 0.75 1.15 286.8 53 164
MX9733GB(S)M2 B.S 24 14.0-27.6 0.50 12.00 3500 23.34 0.66 0.83 206.3 49 164
MX9733GB(S)L2 B.S 24 14.0-27.6 0.30 7.20 3000 19.71 0.56 0.53 132.6 45 164


Factory show :

Founded in 1996 in Shenzhen China, we, Shenzhen Topfan-China Technology Co., Ltd, is professional manufacturer and researcher on dc brushless fans and ac fans. Our products are ISO9000, UL, CE, RoHS certificated and good sellers both at home and abroad, including European, North American, Asia(Korea and India) and so on. The products, including brushless fans, cross flow fans, blower fans, centrifugal fans, dc brushless motor, shades pole and RC ac fans, are being widely used in the information technology, network communications as well as industrial production equipment, medical equipment, home appliances and others. Based on mutual benefit and development, we always make our biggest efforts to do everything better for our customers.

Webside : http://www.topfan-china.com/

http://www.equipment-coolingfans.com/
