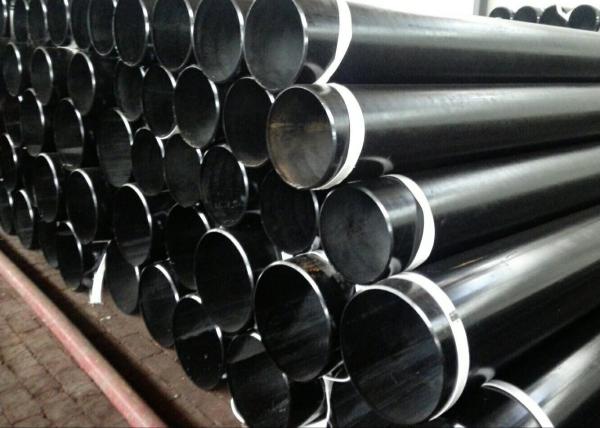

ASTM A106, ASTM A53, API 5L Gr.B Electric Resistance Welded Tube

ERW pipes mean Electric Resistance Welded Pipes. ERW steel pipes and tubes are used. ERW steel pipes and tubes are used in various engineering purposes, fencing, scaffolding, line pipes etc. ERW steel pipes and tube are available in various qualities, wall thicknesses, and diameters of the finished pipes.

All the incoming coils are verified based on the mill test certificate received from steel mill for their chemistry and mechanical properties. The forming stage of ERW pipe begins with a single-width strip. The width of the strip is roughly equal to the perimeter of the pipe to be produced. The edges of the coil are sheared to pre-specified widths in slitting line. The process involves uncoiling & levelling of coils and processing the same. The lead end of each coil is squared by shearing operation for threading into the mill. Then this end is joined with the coil end of the outgoing coil to maintain continuity in production and reduce losses.

1. Out diameter: 114.3mm - 812.8mm (4"-32")

2. Length: 3m-18m

3. Thickness: 4.0-22.0mm

4. Standard: API 5L(ISO 3183) PSL1/PSL2: GR.B-X80, GB/T 9711.1, GB/T 9711.2, ASTM A53: GR.A/GR.B, ASTM A500: GR.A/GR.B/GR.C/GR.D, ASTM A252: GR.1/GR.2/GR.3, EN10219/EN10210: S275/S355JRH/J0H/J2H, AS/NZS 1163

5. Type: ERW (Electric Resistance Welded) Steel Pipe, HFI (High Frequency Induction) Steel Pipe, HFW (High-Frequency Welding) Steel Pipe

6. Uses: Welded steel pipes for use in pipeline transportation system in the petroleum and natural gas (oil & gas) industries, water pipeline, structural & construction.

Our Advantage:

Huayang specialized in manufacturing welded carbon steel pipes for 15 years. The annual output is around 1,000,000 tons. Our products have been exported to 40 countries and regions till now, such as Canada, Hong Kong, Vietnam, Bangladesh, The U.A.E, America, Spain, Italy, Netherlands, Kuwait, Saudi Arabia etc. So any inquiry or special demands will get fast and most professional reply.

Why choose us?

1. We are API/ISO Certificated manufacturer.

2. Have cooperated with a lot of importers for more than 8 years.

3. Experienced in doing business with big customers.

4. Quick delivery time for decent orders.Near to Tianjin port.

5. Factory audited by SGS.

6. Free samples could be provided.
