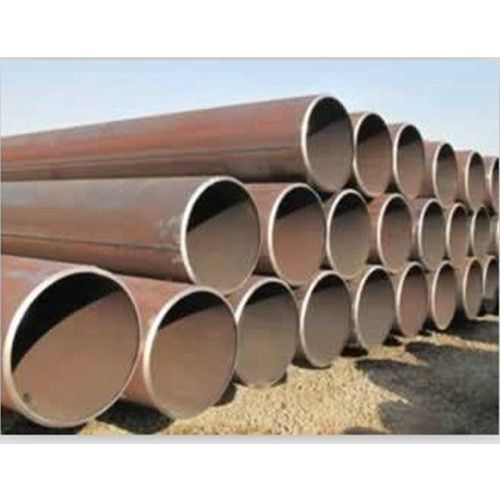

Corrosion Resistance ASTM 53 ASTM A500 LSAW Steel Tube

Out Diameter : 762mm - 1219mm ( 30 "- 48 " ) Dredging LSAW Steel Pipe

LSAW steel tube (Longitudinally Submerged Arc Welding, abbreviated as LSAW) is a professional expression term for straight seam submerged arc welded steel pipe.

The LSAW steel pipe is produced by using a single plate as a raw material, pressing (rolling) the steel plate into a tube blank in a mold or a molding machine, and adopting double-sided submerged arc welding and expanding the diameter. The finished product has a wide range of specifications, and the weld has good toughness, plasticity, uniformity and compactness, and has the advantages of large pipe diameter, thick pipe wall, high pressure resistance, low temperature resistance and corrosion resistance.

Dredging is an underwater excavation project for dredging, widening or digging deep water areas such as rivers and lakes.

After years of development, China has become the world's largest dredging country, with an annual dredging volume of more than 1 billion cubic meters. China has become one of the few countries in the world that have mastered cutting-edge dredging technology and can independently carry out large-scale dredging projects of land dredging and waterway dredging.

Wall Thk:9.53mm-50mm

Length:6M-12.5M

Out Diameter:762mm - 1219mm (30"-48")

Standard:API 5L, ASTM A500, ASTM A252, ASTM 53, EN10217, DIN 2458, IS 3589, JIS G3452, BS1387

Steel Grade:API 5L PSL 1 & PSL2: GR B, X42, X46, X56, X60, X65, X70
ASTM A53: GR.A, GR.B
EN10219/EN10210: S275, S275JR, S355JRH, S355J2H
GB/T3091: Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555

Certificate:ISO 9001, ISO 14001, OHSAS 18001, API 5L PSL1&PSL2, CE (CPR & PED), GOST Certificates

SAWL:Submerged arc welded longitudinal pipe

SAW:Submerged arc welded pipe

LSAW:Longitudinal submerged arc welding pipe

Usage:Used for construction field, low pressure liquid transportation, in various engineering purposes, fencing, scaffolding etc.

Surface:Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement

Tests:Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (DWT, Guided Bend Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, RT (X-Ray Test)

MTC:EN 10204/3.1B, EN 10204/3.2 (with Third Party Inspection)
