Pipe Production Line Type and Carbon Steel Pipe Material ERW Tube Mill
Pipe Production Line Type and Carbon Steel Pipe Material ERW Tube Mill
Pipe Production Line Type and Carbon Steel Pipe Material ERW Tube Mill
Pipe Production Line Type and Carbon Steel Pipe Material ERW Tube Mill
Pipe Production Line Type and Carbon Steel Pipe Material ERW Tube Mill
Pipe Production Line Type and Carbon Steel Pipe Material ERW Tube Mill
Specifications
Brand Name :
TENGTIAN
Model Number :
HG60
Place of Origin :
CHINA
MOQ :
1SET
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 Sets/Year
Delivery Time :
3 months
Packaging Details :
Export waterproof and Seaworthy packing.
Certification :
ISO9001，BV，CE
product name :
Pipe Production Line Type and Carbon Steel Pipe Material ERW Tube Mill
Pipe material :
Carbon Steel,Stainless Steel
Application :
Energy Supply Pipe,Natural gas,Petroleum
Weight :
about 10 tons
Pipe shape :
Round,square,etc.
Pipe diameter :
16-76mm
Thickness :
0.7-2.5mm
keywords :
Pipe Production Line
Description

Pipe Production Line Type and Carbon Steel Pipe Material ERW Tube Mill

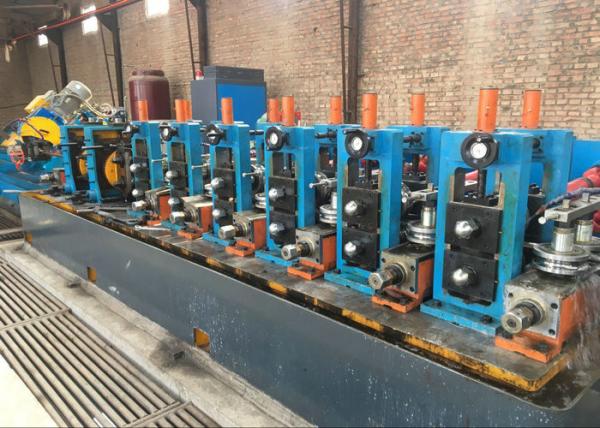

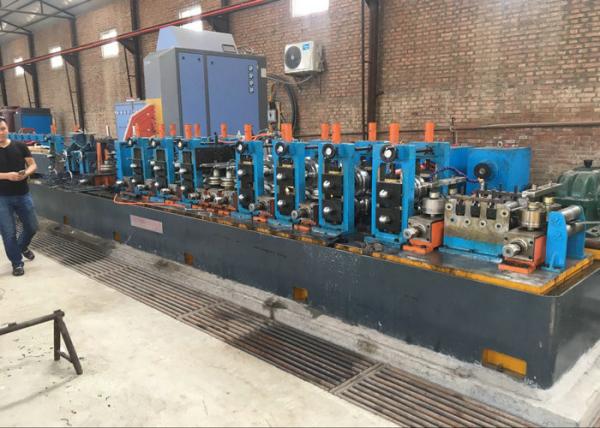

Pipe Production Line Type and Carbon Steel Pipe Material ERW Tube Mill The high frequency straight seam Square steel tube making machine is used to level the fixed strip after slitting line and entry it to forming machine, bend toopenippe by roller, melt the strip edges throuh te High frequency current, squeeze and weld the pipe to be closedby squeeze roll, the high frenency Square steel tube making machine is also called ERW pipe mill.

Carbon Steel Pipe Production Line:

Pipe Production Line's job is to take a continously coiled flat strip, align the two edges together, put the edges in the right place while they are welded, and then size and straighten the finished tubular products to the required specifications.

Basic Components of a complete pipe production line :

raw material(steel strip coil) -->double side uncoiler--> shear and end welder --> horizontal type strip accumulator --> forming unit --> high frequency welding--> burr removing frame--> water cooling sysytem--> sizing unit--> Turky head (straightener) --> computer controlled flying saw-->runout table

Specifications:

For production of steel tube, pipe in round, square.
1. Pipe O.D: 8~273mm
2. Wall thickness: 0.3~12mm
3. Speed: 0~90m/min

Tube Mill, Steel Pipe Production Line, Pipe Mill
1. To make steel pipe O.D. from 0.3 to 11inch(8mm to 273mm)
2. Wall thickness from 0.3 to 12mm.

The complete line include the following device:

1. Double side Uncoiler
2. Hoop cage or Horizontal Accumulator
3. Main Machine:
3.1. Forming Machine
3.2. Roller System of Forming
3.3. Seam Guide
3.4. High Frequency Induction Welding Machine
3.5. Roller System for Moving
3.6. Burr Removing Frame (Inside and outside Burr )
3.7. Water Cooling System
3.8. Sizing Machine
3.9. Roller System of Leveling
3.10. Speed Testing Wheel
3.11. Turkish Frame
4. Auto Flying Saw Controlled by Computer
5. Run out table
6. Electric Control Equipment
7. High Frequency Welding Machine
