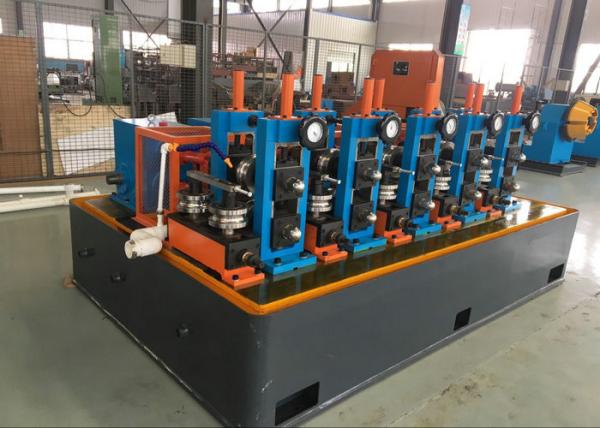

Precision Tube Mill High Speed ERW Ms Pipe Forming Machinery , tube mill equipment Automatic PLC Control
Precision Tube Mill High Speed ERW Ms Pipe Forming Machinery , tube mill equipment Automatic PLC Control
Precision Tube Mill High Speed ERW Ms Pipe Forming Machinery , tube mill equipment Automatic PLC Control
Precision Tube Mill High Speed ERW Ms Pipe Forming Machinery , tube mill equipment Automatic PLC Control
Specifications
Brand Name :
Tengtian
Model Number :
HG50
Certification :
CE,ISO9001,BV
Place of Origin :
Hebei
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
45 Sets/Year
Delivery Time :
90 work days
Packaging Details :
Export waterproof and Seaworthy packing.
Product name :
Precision Tube Mill High Speed ERW Ms Pipe Forming Machinery , tube mill equipment Automatic PLC Control
Cutting Saw :
Cold Saw & Friction Saw Cutting
Thickness :
1.0-3.0mm
Pipe diameter :
12-52mm
Pipe shape :
Round,square,rectangular
Mill speed :
30-100m/min
Adjustment type :
By turbine worm
Keywords :
Precision Tube Mill
Description

High Speed ERW Ms Pipe Forming Machinery , tube mill equipment Automatic PLC Control

The HG273 mill is used to manufacture of round pipe of Φ114mm-Φ273mm with thickness of 4.0mm-10mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.

The High precision tube mill has some advantages as follow:

between level roller jumps 0.01,between frame and slide clearance ≤0.02mm, frame vertical degree ≤0.05, each frame parallel degree ≤0.1mm
steel pipe diameter and roundness error≤0.08mm.

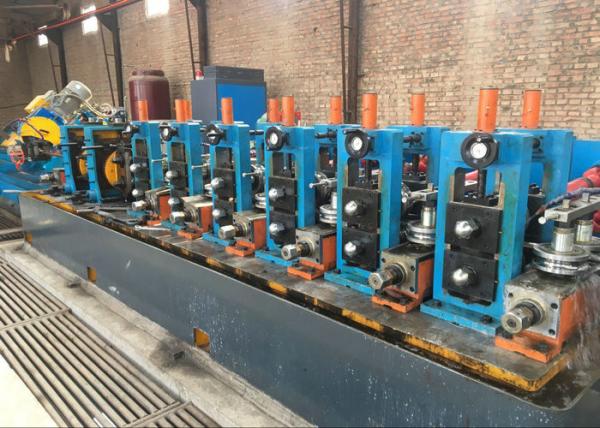

Precision Tube Mill High Speed ERW Ms Pipe Forming Machinery , tube mill equipment Automatic PLC Control

Product Process:

material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→

HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table

The Basic Parameters:

stands of forming mill 7
stands of sizing mill 5
shaft material 40Cr
round pipe diameter 19-76mm
Round pipe thickness 1.5-3.0mm
square pipe size 15×15-60×60mm
square pipe thickness 1.5-2.0mm
we can design the machine according to the customer detail require.
ERW Tube Mill Other Model:
Model Diameter Range Pipe Thickness Line Speed(m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20

Applied raw material of erw pipe mill

Low carbon steel, low alloy steel, galvanized steel, stainless steel,etc.

About us
Our Customers

Our service

1) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
