The ERW pipe mill with high frequency solid welder,can product he round pipe,square pipe and

rectangular pipe in high speed,and also can product the L,T,Z shape pipe,reduce the cost of roller ensure the quality of the finish pipe.

Product Process:

material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→

HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table

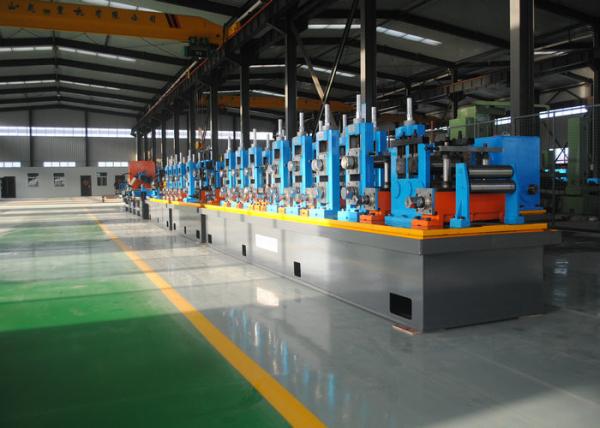

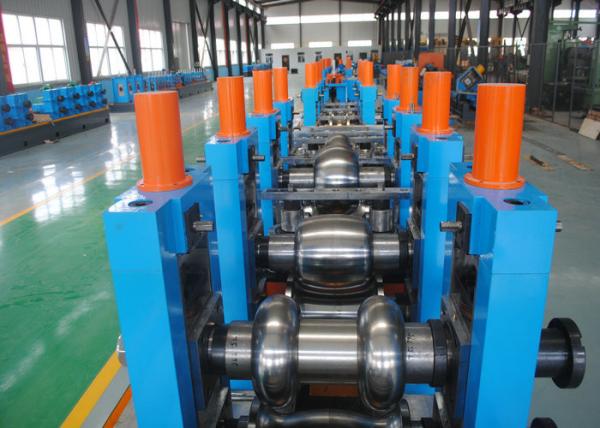

High‐frequency welded tube mill line is designed to produce round tube diameter of 25.4 – 114 mm, and wall thickness of 0.8 ‐4.0 mm. This line utilizes roll forming to process steel strip into various shapes. Using high frequency induction heating, this line is capable of producing section material of various diameters and sizes by squeezing weld seam together into closed shape. The application of advanced aperture technology, PLC automatic control system and British Eurasia Digital speed‐regulating unit ensure that the production line works reliably and operates and maintains easily.

ERW Tube Mill Other Model

Summary
This equipment is specially used for producingΦ20-Φ80mm, δ1-4.0mm high-frequency straight seam welded pipe and corresponding square pipe (17*17-62*62mm,1.2-3.0mm). The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be according to suitable range of pipe diameter and wall thickness.
A. Applicable material
1 Raw material: Low-carbon steel,

Our Services

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping

1.What are the types of stianless steel pipe welder equipment?

Stainless steel pipe welder equipment is classified by use: Industrail stainless steel pipe making machine, Decorative stainless steel pipe making machine.

2.What are the supporting part of stainless steel equipment?1. Decoiler: According to the specifications of the pipe to buy steel strip,put the coil up material on the shelf,introduction of forming part.

2. Forming Part: Using the scroll welded pipe dies.

3. Welder: Welding.

4. Grinding Part: Weld grinding.

5. Straightening and Sizing Part: Fine-tuning pipe diameter.

6. Cutting Part: Metal hydraulic cutting or grinding wheel cutting.

7. Length fixed: Automatic defining material.

3.What are the features of FOSHAN YXH stainless steel pipe welder equipment ?

FOSHAN YXH stainless steel pipe welder equiment is sturdy and durable, high precision, full automation, easy operation, continuous production, high efficiency, less waste of materials, the rate of finished product is high, low production cost.

4.Why steel pipe leakage welding?

1. Welding torch position is too high;

2. Welding torch around is not aligned;

3. Current is too high to melt;

4. Welding current is too small is not on;

5. No argon welding fire do not focus; (Replace argon)

6. Mould and steel with water or oil, caused by welding fire is not focused.(With Nitrocellulose lacquer thinner, turpentine or toluene cleaning steel strip)

5.What are the production of stainless steel pipe welder equipment and accessories needed?

A whole set of stainless steel pipe welder equipment including, pipe making machine, welder, mould(die/roller), round pipe polishing machine/square pipe polishing machine, polishing material, steel strip, etc.
