High Accuracy Steel Slitting Machine With PLC Unit / Steel Coil Decoiler
High Accuracy Steel Slitting Machine With PLC Unit / Steel Coil Decoiler
High Accuracy Steel Slitting Machine With PLC Unit / Steel Coil Decoiler
High Accuracy Steel Slitting Machine With PLC Unit / Steel Coil Decoiler
High Accuracy Steel Slitting Machine With PLC Unit / Steel Coil Decoiler
High Accuracy Steel Slitting Machine With PLC Unit / Steel Coil Decoiler
Specifications
Brand Name :
Tengtian
Model Number :
SJ1600*4
Certification :
CE ISO
Place of Origin :
HEBEI,CHINA
MOQ :
1 set
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
150 set per year
Delivery Time :
two months
Packaging Details :
packed in seaworthy material
type :
Carbon Steel Slitting Machine
special require :
can design according to the customer
steel thickness :
0.5-4.0mm
product speed :
Max 120m/min
material :
carbon steel,stainless steel
Description

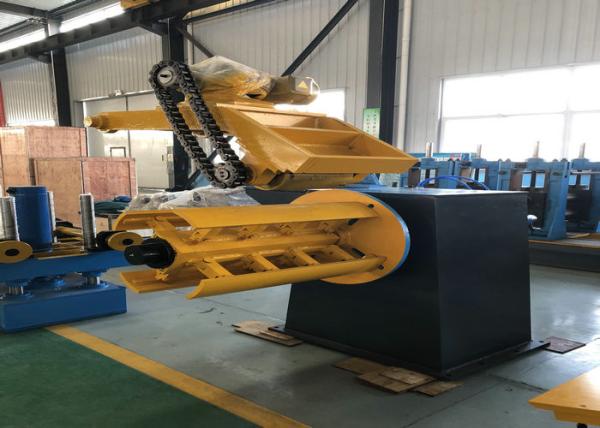

Steel coil decoiler slitting machine
Product Description

Steel coil decoiler slitting machine is used to open the strip coil, flatten the plate, and cut into a given width of steel strips longitudinally, then the strips will be rolled to a coil. This production line adopts PLC unit with high accuracy and easy operation.


Professional manufacturer
Slitting machines for sale
High quality control ISO
Punctual delivery
Excellent service

High Accuracy Steel Slitting Machine With PLC Unit / Steel Coil Decoiler
Detailed Images
High Accuracy Steel Slitting Machine With PLC Unit / Steel Coil Decoiler
High Accuracy Steel Slitting Machine With PLC Unit / Steel Coil Decoiler

Main technical parameter

Material of coils: HR/CR carbon steel such as Q235, galvanized plate, colored steel plate etc
Metal Coil Slitter Strip thickness: (5~20) mm
Strip width: 800~2000mm
Max.coil weight: 40000kgs
Diameter of leveling rollers & tensioning roller: Φ260
Metal Coil Slitter Diameter of slitter shaft: Φ420
Coil Slitting Machine Disc cutters: 6CrW2Si, HRC54°~56°, OD650mm x ID420mm x T50mm.
Diameter of recoiler block: Φ800mm
Separating discs: 65Mn, OD250 x ID110 x T10/20mm
DC motors for slitter and recoiler: 280KW, 315KW.
Coil Slitting Machine Slitting speed: (0~20) m/min, adjustable

High Precision Carbon Steel Stainless Steel Slitting Line Machine

Slitting Line Machine Profile:

Slitting line machine mainly composed of uncoiler,feeder,slitter and recoiler.its function is to slit a wide coil to stated width strips coil along with the length direction which can be used for milling,welding pipe,cold bend forming,stamping as billet.At same time,changing different material blade can slit various metal coils.

Product Process:

Loading coil car→Uncoiler→Straightener device→Pinch roll&leveler & hydraulic shearer →Loop pit →Side guide →Slitter →Transition platform & scrap winder →Loop pit →Tension station→Recoiler→Unloading coil car

The Basic Parameters:

material carbon steel,stainless steel,galvanized steel
material thickness 1.0-6.0mm
material width 900-1600mm
coil ID Ø508/610MM
Coil OD <2500mm
Coil weight Max 30 Ton

Other Model Of Slitting Line

Model steel thickness steel width steel coil weight
3*1600mm 0.5-3.0mm 900-1600mm 30 Ton
4*1600mm 0.5-4.0mm 900-1600mm 30 Ton
6*1600mm 1-6mm 900-1600mm 30 Ton
8*2000mm 2-8mm 900-2000mm 35 Ton
10*2200mm 3-10mm 900-2200mm 35 Ton
12*2200mm 3-12mm 900-2200mm 35 Ton
16*2500mm 4-16mm 900-2500mm 35 Ton
20*2500mm 6-20mm 900-2500mm 35 Ton

Our Services

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping
