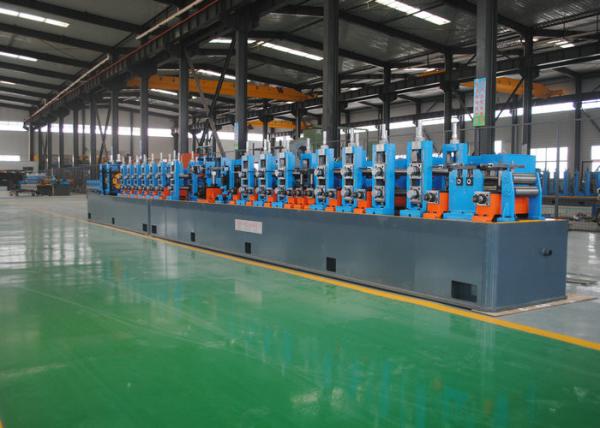

High Frequency Precision ERW Pipe Mill 4.0-10.0mm Pipe Thickness
High Frequency Precision ERW Pipe Mill 4.0-10.0mm Pipe Thickness
High Frequency Precision ERW Pipe Mill 4.0-10.0mm Pipe Thickness
High Frequency Precision ERW Pipe Mill 4.0-10.0mm Pipe Thickness
Specifications
Brand Name :
Tengtian
Model Number :
HG76
Certification :
CE, ISO9001, BV
Place of Origin :
HEBEI,CHINA
MOQ :
1 set
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
50 set per year
Delivery Time :
three months
Packaging Details :
Export waterproof and Seaworthy packing.
Pipe Diameter :
25-76mm
product speed :
Max 50m/min
material :
carbon steel,stainless steel,low alloy steel
Cutting Saw :
Friction Saw Cutting
worm gearing :
Max.80m/min
pipe thickness :
4.0-10.0mm
product name :
High Frequency Precision ERW Pipe Mill 4.0-10.0mm Pipe Thickness
keywords :
ERW Pipe Mill
Description
The main type for welded pipe roll forming machine
Machine HG-32 Machine HG-50
Wall thickness 0.4-2.5mm Wall thickness 0.4-2.5mm
Pipe diameter 10-45mm Pipe diameter 10-45mm
Round pipe

Max. OD-45mm,

Min.OD-10mm

 Round pipe

Max. OD-45mm,

Min.OD-10mm
Square pipe

Max.-35*35mm,

Min.-10*10mm

 Square pipe

Max.-35*35mm,

Min.-10*10mm
Rectangular pipe

Max.-30*40mm,

Min,-10*10mm

 Rectangular pipe

Max.-30*40mm,

Min,-10*10mm
Machine HG-76 Machine HG-127
Wall thickness 0.4-2.5mm Wall thickness 0.4-2.5mm
Pipe diameter 10-45mm Pipe diameter 10-45mm
Round pipe

Max. OD-45mm,

Min.OD-10mm

 Round pipe

Max. OD-45mm,

Min.OD-10mm
Square pipe

Max.-35*35mm,

Min.-10*10mm

 Square pipe

Max.-35*35mm,

Min.-10*10mm
Rectangular pipe

Max.-30*40mm,

Min,-10*10mm

 Rectangular pipe

Max.-30*40mm,

Min,-10*10mm

ERW Tube Mill Other Model

Model Diameter Range Pipe Thickness Line Speed(m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20

Our Services

Quality Assurance

we Shall be responsilbe for quality problem resulted from design and manufacture with one year after successfull installation and debugging and all the expenses for replacing parts and components( exclude human factors and vulerable components ) shall be born by us !

Debugging

1) Factory will send 1-2 technical engineers for installation and testing operation

2) The site, the equipment foundation, cool constructions etc. responsible by buyer according to equipment material which provides by supplier, the equipment for installation (lift equipment, tool etc.), the installation accessory material (wire, drive pipe, water pipe and so on), the labor force arranged by the buyer.

3) The buyer is responsible for power supply, water supply and gas supply to the equipment interface connector

4) Buyer Preparation Notes

(a) Machinery device takes the location (length* width)

(b) Power supply: Main power to equipment control bench, unit position

(c) Air feed: Air compressor (1.5 cubic meters/minutes

(d) Water supply: Water source to machine station
