Servo Automatic Adjustment Steel Tube Making Machine High Performance Smooth Production
Servo Automatic Adjustment Steel Tube Making Machine High Performance Smooth Production
Servo Automatic Adjustment Steel Tube Making Machine High Performance Smooth Production
Servo Automatic Adjustment Steel Tube Making Machine High Performance Smooth Production
Servo Automatic Adjustment Steel Tube Making Machine High Performance Smooth Production
Servo Automatic Adjustment Steel Tube Making Machine High Performance Smooth Production
Specifications
Brand Name :
Tengtian
Model Number :
LW200
Certification :
CE ISO
Place of Origin :
HEBEI,CHINA
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
150 set per year
Delivery Time :
two month
Packaging Details :
packed in seaworthy material
material :
carbon steel
product speed :
Max 120m/min
special require :
can design according to the customer
production :
channel steel , Angle steel , C channel steel
product name :
blue Cold Roll Forming Machine
Features :
Servo Automatic
Description

Steel Tube Making Machine Servo Automatic Adjustment

I. Mills Tour

Step 1 - Coils

There are carbon steels that are going to be made into pipe and tube for you

Step 2 - uncoiler

The carbon steel coil is placed on the uncoiler

Step 3 - Leveler

The coil stock is leveled

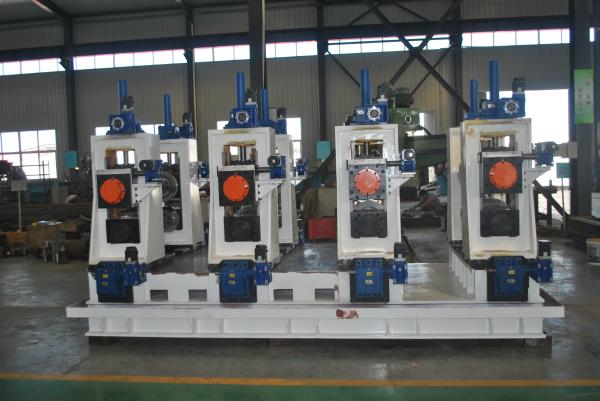

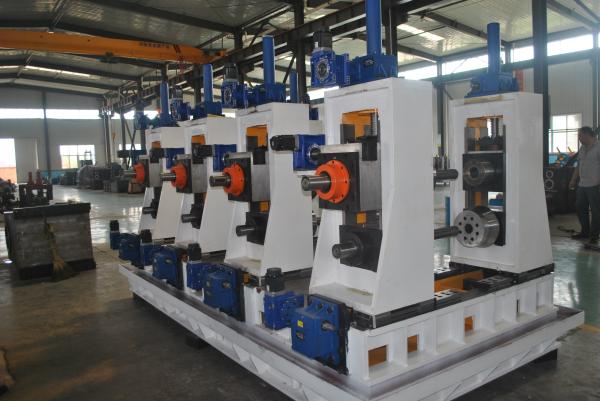

Step 4 - Mill

Then it goes through a series of rolls that form the flat steel into pipe,this is Servo Automatic Adjustment

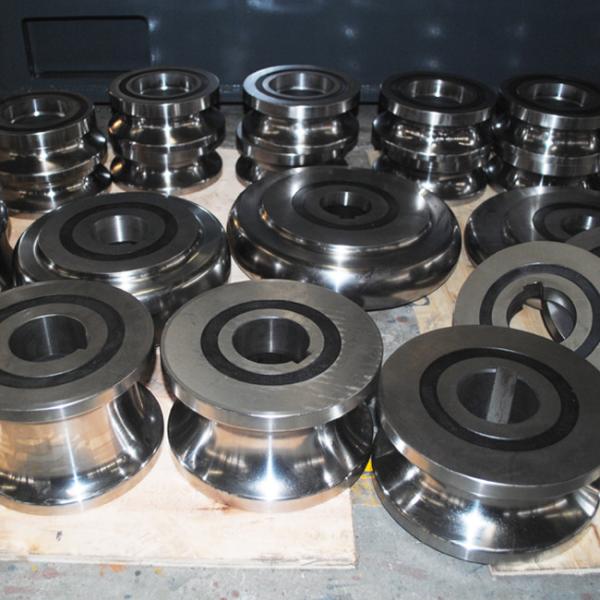

Step 5 - Mill Rollers

Rolls form this size schedule into shape, could be adjustmentd by Servo system for this Steel Tube Making Machine

Step 6 - Welder

An Electirc Resistance Welder Finishes the pipe or tube

Step 7 - Scarfer

The seam is “scarfed” to make the pipe or tube smooth all the way around.

Step 8 - Saw

Finally, the pipe and tube is sawed to length

II. Mill lists

No. Model Pipe Size Thickness Speed(m/min) Capacity(KW) HF(KW) Area
1 HG20 ø8 - ø20 mm 0.3 - 1.5 mm 30 - 150 210 100 40*12
2 HG32 ø10 - ø32 mm 0.4 - 2.0 mm 30 - 150 300 150 40*12
3 HG50 ø16 - ø50 mm 0.7 -2.5 mm 30 - 150 410 200 60*12
4 HG60 ø22 - ø60 mm 0.9 - 3.0 mm 30 - 150 410 200 60*12
5 HG76 Ø25 - ø76 mm 1 - 4 mm 30 - 120 580 300 80*16
6 HG89 Ø32 - ø89 mm 1 - 4.5 mm 30 - 100 660 300 100*16
7 HG114 Ø45 - ø114 mm 1.5 -5 mm 30 - 80 920 400 100*16
8 HG140 Ø50 - ø140 mm 1.5 - 5.5 mm 30 - 80 920 400 100*16
9 HG165 Ø60 - ø165 mm 2 - 6 mm 30 - 60 1100 500 100*16
10 HG219 Ø114 - ø219mm 3 - 8 mm 20 - 45 1400 600 150*16
11 HG273 Ø114 - ø273mm 4 - 12 mm 15 - 30 2100 800 160*18
12 HG325 Ø165 - ø325 mm 4 - 14 mm 10 - 30 2500 1000 200*24
13 HG426 Ø165 - ø426 mm 4 - 16 mm 8 - 25 2900 1200 250*24
14 HG508 Ø219 - ø508 mm 5 - 18 mm 5 - 18 3400 1600 300*24
15 HG610 Ø355 - ø610 mm 5 - 18 mm 5 - 18 3700 1600 300*24
16 HG760 Ø426 - ø760 mm 5 - 20 mm 5 - 20 4300 1800

300*24

III. Parameters for this Servo Automatic Steel Tube Machinery

item value
Applicable Industries Hotels, Manufacturing Plant, Construction Works, Energy & Mining
Showroom Location United States, Italy, Pakistan, India, Russia, Thailand, Tajikistan
Video Outgoing-inspection Provided
Feature Servo Syestem Automatic Adjustment Tube Machinery
Marketing Type Servo System
Warranty of Core Components 1 Year
Core Components Engine, Gearbox, Motor, Gear
Condition New
Type Steel Tube Making Machine
Pipe Material Carbon steel
Application Energy Supply Pipe
Production Capacity 30-80m/min
Place of Origin Hebei, China
Brand Name Tengtian
Voltage 380V
Power 400KW
Dimension(L*W*H) 40m*3m*2m
Weight 20000kg
Warranty 1 Year
Key Selling Points High-accuracy
After-sales Service Provided Engineers
Pipe Length 6-12m
Pipe Diameter 20-60mm
Pipe Thickness 0.8-2.0mm
Welding Method High Frequency Welding
Material Carbon Steel, Stainless Steel, Alloy Steel
Service Treatment Pickling, Passivation, Polishing, Anodizing, Plating, Coating
Forming Process Roll Forming

Servo Automatic Adjustment Steel Tube Making Machine High Performance Smooth Production
