Middle Carbon Steel Pipe Manufacturing Machine Automatic Adjustment
Middle Carbon Steel Pipe Manufacturing Machine Automatic Adjustment
Middle Carbon Steel Pipe Manufacturing Machine Automatic Adjustment
Middle Carbon Steel Pipe Manufacturing Machine Automatic Adjustment
Middle Carbon Steel Pipe Manufacturing Machine Automatic Adjustment
Middle Carbon Steel Pipe Manufacturing Machine Automatic Adjustment
Specifications
Brand Name :
TENG TIAN
Model Number :
1200*16MM
Certification :
CE / ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
20 Sets / Year
Delivery Time :
25 Working days
Packaging Details :
Exporting Standard packing, and fixed in container
Product Name :
Middle Carbon Steel Pipe Manufacturing Machine Automatic Adjustment
Thickness of Steel Strip :
0.4*12mm
Function :
Store and supply successive strip for forming machine
Features :
masterly work principle, safe,reliable,easy to control
Usage :
Storage of strip
Keyword :
Middle Carbon Steel Pipe Manufacturing Machine
Description

Middle Carbon Steel Pipe Manufacturing Machine Automatic Adjustment F150 Square Pipe

Basic Technical Information:
1. Specification of pipes

Pipe Size: 150x150

Thickness: 3-8mm Square & rectangle tube:
Length: 6-12m
Length Tolerance: ±3mm
2. Raw Material:
Carbon Steel coil GB/T 700: Q235B(ASTM: GR·D(σs 230) / JIS: SS400)
Width: 36mm-120mm
Thickness: 3-8mm
Coil ID: 450-520mm
Coil OD: Max 1200mm
Coil Weight: 8Tons
3. Tube mill:
Production Speed: 20-50 m/min
Production capacity: 10,000ton/year
Direction: left or right decided by customers.
Mill installed capacity: 550 kw
Line Area: 80m(length) ×8.8m (width) x3.5m(heidght)
Tube Bottom Passline (Above floor level): 800 mm
Weight: about 8t

Sequence
Item
numerical value
1
Round pipe diameter
Φ50.8mm～Φ127mm
2
Round pipe thickness
Δ1.0mm～3.5mm
3
Square pipe size
40×40-100×100mm
4
Square pipe thickness
Δ1.0-3.0mm
5
Rectangular pipe size
30×50-80×120mm
6
Rectangular pipe thickness
Δ1.0-3.0mm
7
Rolling speed
10M/min～70M/min
(different diameter and thickness choose different speed)
8
Length of pipe
4M～8M( depends on the customer’s demands )

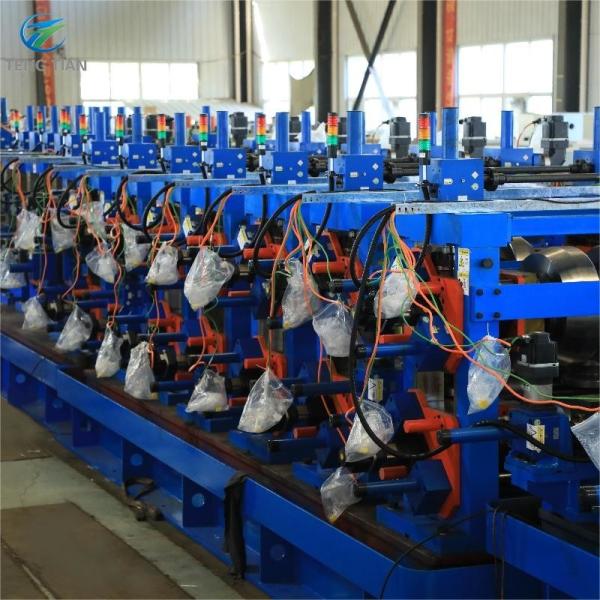

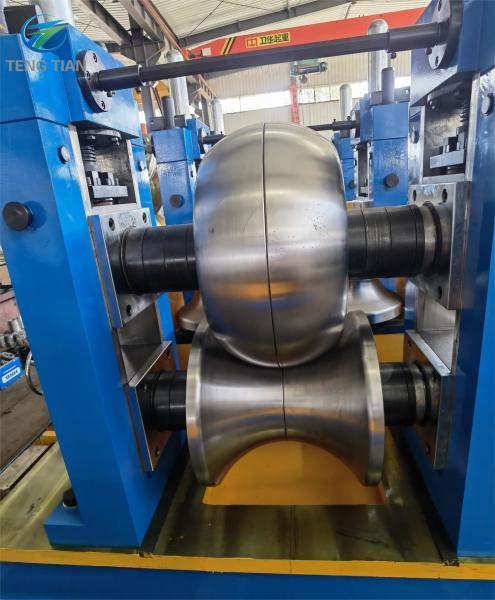

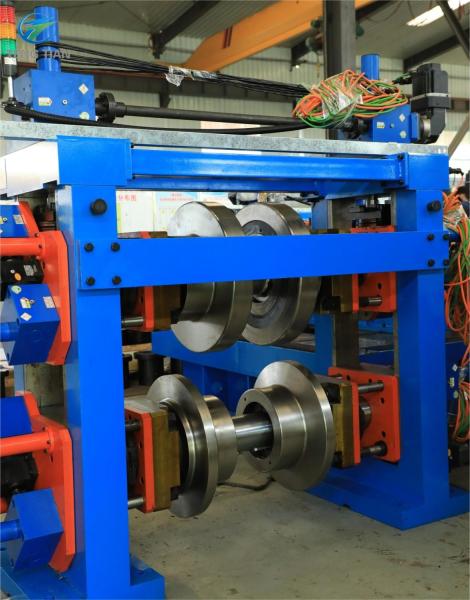

Reference Picture

Middle Carbon Steel Pipe Manufacturing Machine Automatic Adjustment

Middle Carbon Steel Pipe Manufacturing Machine Automatic Adjustment
