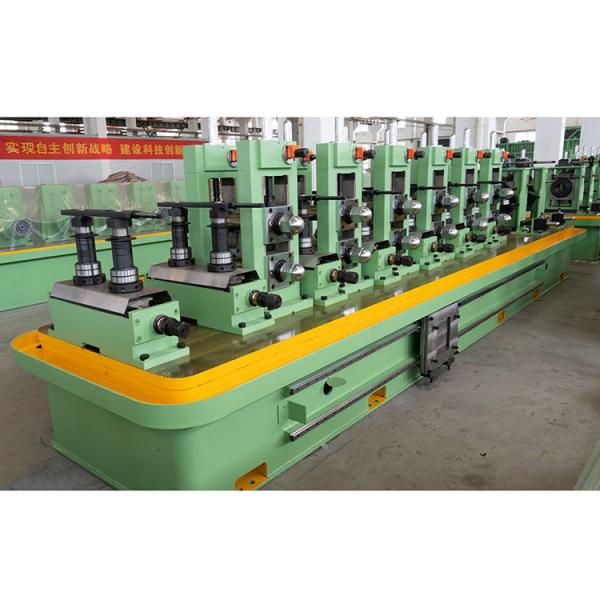

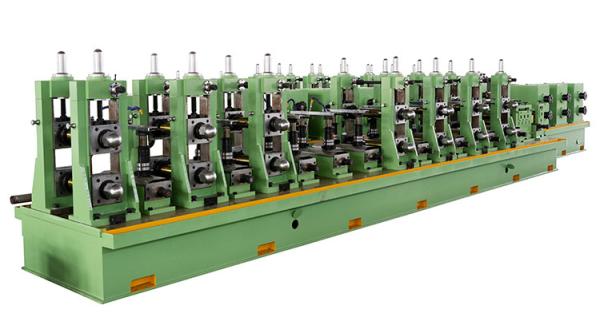

Automated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube Mill
Automated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube Mill
Automated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube Mill
Automated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube Mill
Automated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube Mill
Automated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube Mill
Specifications
Brand Name :
TENGTIAN
Model Number :
HG89
Certification :
CE ISO9000 BV
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5 set/month
Delivery Time :
90 wording days
Packaging Details :
standard export package
Mill Name :
Automated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube Mill
Product :
round pipe
Feature :
precision
material :
carbon steel and galvanized steel
Other pipe :
square pipe
Max size :
89mm
Thickness :
3mm
Length :
3-6m
Rollers :
not include
Model :
89
Key words :
Automatic Tube Mill For Welded Steel Pipes
Description

Automated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube Mill

Automatic tube mill General Introduction

HG89 Automatic tube mill is designed to produce square pipe 32-89mm and according size square pipe , thickness 1-3mm. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

According to the designing guideline of improving the operating character & environment and the safety & producing character , reducing the cost of the roller to guarantee high efficiency,HG89 production line adopts the double-radius hole style of design .


Automatic tube mill Main Parameters and Specifications

(1)Material Specifications:

Standard

Internatioanl standard tube mill machine

Material

galvanized steel

Mechanical properties

σb≤520Mpa,σs≤365MPa

Strip Width

100-280mm

Strip Thickness:

1-3mm

Inner Diameter of Coils

Φ508mm

Outer Diameter of Coils

Φ1300～φ2000mm

Coil Weight

≤2T

(2)Pipe Specification

Pipe Diameter

round pipe :32-76mm

Length

3-6m

Pipe-cutting Precision

0-6mm

Forming Speed

max 90m/min for 2 mm thickness

(3)The buyer should self-supply

Work shop

60x12m, H＞5m(crane to ground)

Power

Approx.3500KW 380V/60Hz/3phases

Circulation Cooling Water(whole system)

Flow:30+30 CBM
Pool Volume:40m3

Compressed Air
(whole system)

Flow:5m3/min
Pressure: 5-7kg/ cm2

Cable

All cable outside of my machine, you buy after machine fix location.

Automatic tube mill Working Process

Automated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube Mill

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

Automatic tube mill

Automated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube MillAutomated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube MillAutomated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube Mill

Automated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube Mill

Our Factory for Automatic tube mill

Automated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube Mill
Our Office
Automated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube Mill
Our Team
Automated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube Mill
Past Project for Automatic tube mill
Automated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube Mill
Automatic tube mill and Management Certificate
Automated 1-3mm Thick Galvanized Steel Pipe Mill Welded Tube Mill
