Specifications
Brand Name :
Tengtian
Model Number :
HG114
Certification :
CE,ISO9001, BV
Place of Origin :
Shijiazhuang China
MOQ :
1 Set
Price :
USD 950000.00 Can negotiate the price
Payment Terms :
L/C, T/T
Delivery Time :
90 days
Packaging Details :
Standard Export Packing
Tube_Size :
Customizable
Tube Size :
40x40—90x90mm
Speed :
≤2.5T
Voltage :
Customizable
Diameter :
32-114mm
Coil_Width :
Customizable
Welding :
Hi-frequency Welding
Tolerance :
0.7-4.0mm
Round Pipe Diameter :
0.7-4.0 mm
Type Of Welding :
high frequency welding
Power_Source :
Electric
Strip Thickness :
1.0-5.0mm
Line Speed :
Max.100m/min
Keywords :
20-50m/min
Function :
Cold Saw or Hot Saw
Description

Product Information

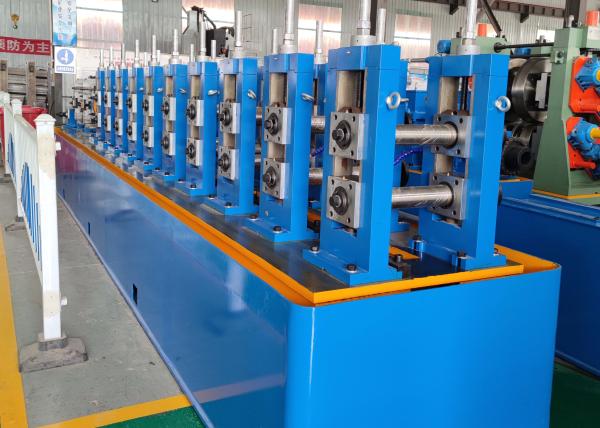

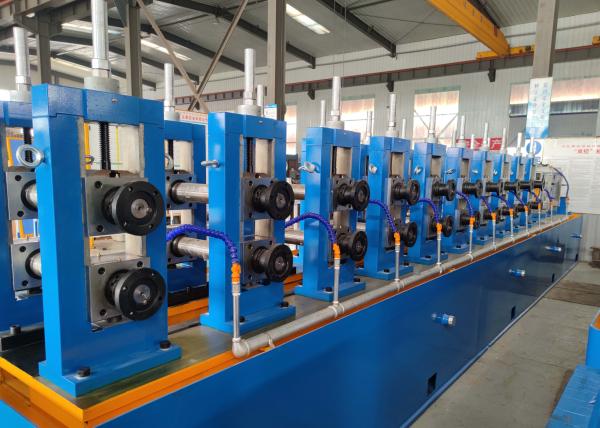

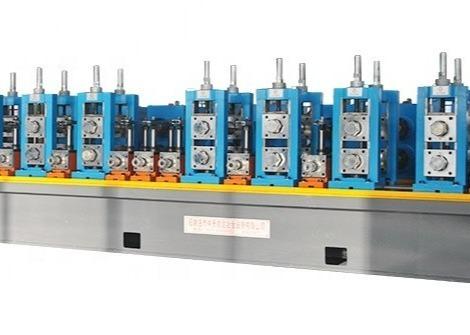

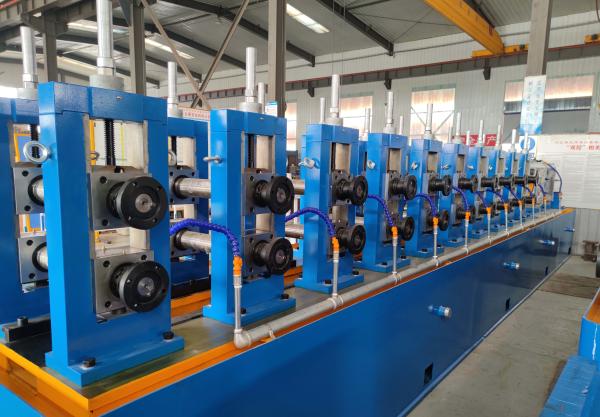

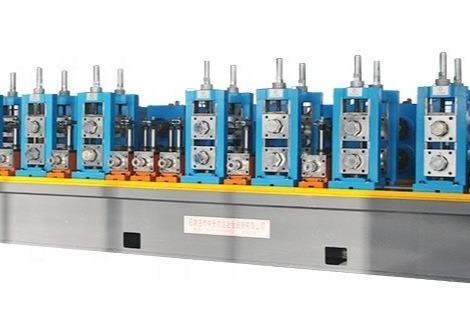

HG114 High-Frequency Welded Pipe Mill Line is designed to produce welded pipes of 50～114.0mm in diameter and 1.0～5.0mm in wall thickness as well as square and rectangular pipes and deformed pipes of the corresponding size. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

Our other Models

Serial number Model Thickness(mm) Specification(mm) Speed(m/min) main engine(kw) Power(kw) area
1 H20 0.3-1 8-20 30-120 55 60 7*50
2 H32 0.3-2.0 12-32 30-120 75 100 7*50
3 H50 0.8-2.5 16-50 30-110 110 150 7*60
4 H60 0.8-3 20-60 30-100 132 200 7*65
5 H76 1-3 12-76 30-100 320 250 8*80
6 H89 1-4 32-89 30-80 350 300 8*80
7 HG114 1.5-5 45-114 30-60 400 300 10*100
8 HG165 3-7 60-165 30-50 600 400 10*110
9 HG219 4-8 114-219 20-40 800 500 12*150
10 HG273 4-10 114-273 15-30 1000 600 18*160
11 HG325 4-12 165-325 10-30 1200 600 18*180
12 HG426 4-16 165-426 8-25 1400 800 18*180
13 HG508 4-20 219-508 8-20 2000 1000 21*180

Production Process

Loading car→Uncoil →Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening →STD Cold-cutting saw →Transmitting → hydrostatic testing → End facer → Straightener→Packing → Storage

Our Service

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .

114.0mm Square Pipe Making Machine Max Forming Speed 60m/Min

Detailed Product Description
Product Name: Square Pipe Making Machine Max Forming Speed 60m/Min Pipe Diameter 114.3mm Square Tube Mill After-sales Service Provided: Engineers Available To Service Machinery Overseas
Pipe Material: Carbon Steel Voltage: 380V
Power(w): 1500KW Speed: 20 - 60m / Min
Pipe Shape: Round, Square & Rectangular Round Pipe Diameter: 33.4mm-114.3mm
Warranty: 1 Year Keywords: Pipe Diameter 114.3mm Square Tube Mill
High Light:

114.3mm Square Pipe making machine

,

Square Pipe making machine 60m/Min

,

114.3mm square tube making machine
