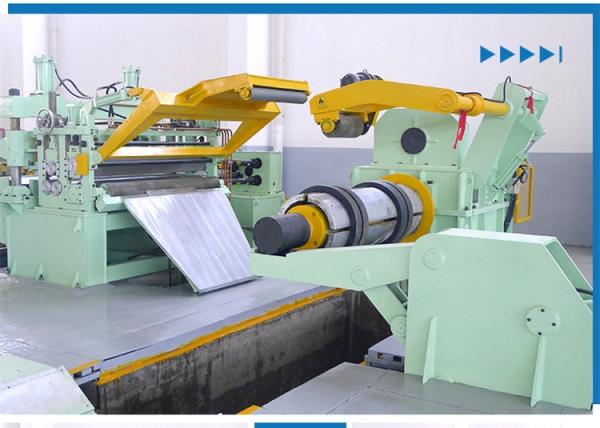

1600mm Composed Of Uncoiler Feeder Slitter And Recoiler Steel Slitting Machine
1600mm Composed Of Uncoiler Feeder Slitter And Recoiler Steel Slitting Machine
1600mm Composed Of Uncoiler Feeder Slitter And Recoiler Steel Slitting Machine
1600mm Composed Of Uncoiler Feeder Slitter And Recoiler Steel Slitting Machine
Specifications
Brand Name :
Tengtian
Model Number :
TT3X1600
Certification :
CE, ISO9001, BV
Place of Origin :
Hebei，China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40 Sets/Year
Delivery Time :
120 work days
Packaging Details :
Export waterproof and Seaworthy packing.
Name :
1600mm Composed Of Uncoiler Feeder Slitter And Recoiler Steel Slitting Machine
Warranty :
1 Year
Voltage :
380V/220V
Weight :
Max 30 Ton
DC motors :
280KW, 315KW
After-sales Service Provided :
Engineers available to service machinery overseas
Coil Width :
900 - 1600
Material Thickness :
mm): 0.5 - 3
Description
1600mm Composed Of Uncoiler Feeder Slitter And Recoiler Steel Slitting Machine
Product Description

1600mm Composed Of Uncoiler Feeder Slitter And Recoiler Steel Slitting Machine mainly composed of uncoiler,feeder,slitter and recoiler.its function is to slit a wide coil to stated width strips coil along with the length direction which can be used for milling,welding pipe,cold bend forming,stamping as billet. At same time,changing different material blade can slit various metal coils.

Main technical parameter:

Material of coils HR/CR carbon steel such as Q235, galvanized plate, colored steel plate etc
Metal Coil Slitter Strip thickness (5~20) mm
Strip width 800~2000mm
Max.coil weight 40000kgs
Diameter of leveling rollers & tensioning roller Φ260
Metal Coil Slitter Diameter of slitter shaft Φ420
Coil Slitting Machine Disc cutters 6CrW2Si, HRC54°~56°, OD650mm x ID420mm x T50mm
Diameter of recoiler block Φ800mm
Separating discs 65Mn, OD250 x ID110 x T10/20mm
DC motors for slitter and recoiler 280KW, 315KW
Coil Slitting Machine Slitting speed (30-60) m/min, adjustable

1600mm Composed Of Uncoiler Feeder Slitter And Recoiler Steel Slitting Machine

1600mm Composed Of Uncoiler Feeder Slitter And Recoiler Steel Slitting Machine

Product Process:

Loading coil car→Uncoiler→Straightener device→Pinch roll&leveler & hydraulic shearer →Loop pit →Side guide →Slitter →Transition platform & scrap winder →Loop pit →Tension station→Recoiler→Unloading coil car.

Model Of Slitting Line:

Model Plate thickness Plate width Steel coil weight Width of finished Shear Speed
3*1250mm 0.5-3.0mm 700-1250mm 25 Ton <40mm 120(m/min)
4*1250mm 0.5-4.0mm 700-1250mm 25 Ton <40mm 120(m/min)
6*1250mm 0.5-6.0mm 700-1250mm 25 Ton <40mm 120(m/min)
3*1600mm 0.5-3.0mm 900-1600mm 30 Ton ≥40mm 120(m/min)
4*1600mm 0.5-4.0mm 900-1600mm 30 Ton ≥60mm 110(m/min)
6*1600mm 1-6mm 900-1600mm 30 Ton ≥60mm 100(m/min)
8*2000mm 2-8mm 900-2000mm 35 Ton ≥70mm 60(m/min)
10*2200mm 3-10mm 900-2200mm 35 Ton ≥80mm 50(m/min)
12*2200mm 3-12mm 900-2200mm 35 Ton ≥100mm 40(m/min)
16*2500mm 4-16mm 900-2500mm 35 Ton ≥100mm 40(m/min)
20*2500mm 6-20mm 900-2500mm 35 Ton ≥100mm 30(m/min)

This model just for you reference,the product range and thickness is adjustable,we have ourselves engineer team,can design the machine according to the customer special require. Send inquiry here
