ERW Steel Pipe Production Line The Steel Belt Feeding Unit, Through The Roll Bring Curled Up Into A Tube Billet Steel
ERW Steel Pipe Production Line The Steel Belt Feeding Unit, Through The Roll Bring Curled Up Into A Tube Billet Steel
ERW Steel Pipe Production Line The Steel Belt Feeding Unit, Through The Roll Bring Curled Up Into A Tube Billet Steel
ERW Steel Pipe Production Line The Steel Belt Feeding Unit, Through The Roll Bring Curled Up Into A Tube Billet Steel
Specifications
Brand Name :
Tengtian
Model Number :
HG273
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable according to different sizes of machine
Payment Terms :
T/T, L/C
Supply Ability :
100 Sets/Year
Delivery Time :
6 Months
Packaging Details :
Special export packing, and fixed in container
Forming Method :
ERW Steel Pipe Production Line The Steel Belt Feeding Unit
Coil weight :
15000kg
High-frequency Welder :
600KW
Round :
Φ89-273mm
Square :
70*70-200*200 mm
Welding Speed :
Max 50m/min
Rectangular :
80*60-300*100mm
Thickness :
1.5-8mm
Description
  • The basic processing terms

1. Basic Parameter

(1)Strip Steel

It must be require abide by YB189-64 standard.

(2)low carbon steel, low alloy steel;δb≤520Mpa； δs≤340Mpa

(3) Trip coil

Inner diameter Φ508-Φ610mm

Out diameter Φ1000-Φ2000mm

Coil weight ≤15000Kg

(4)The machinery & electronics:about 1200KW.

High-frequency Welder:600KW

(5)Pressure air capability:6m³/m,0.4-0.6Mpa

(6)Work shop and electric power:

It must be higher than 6M to work shop of the assembling the high-frequency pipe mill line i.e. the distance is from ground to the sky transfer machine, the workshop span is 18 M, length 120 M, collocate tow sets Sky-transfer-machine including 15 ton and 10ton.

2. Working Process:

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →forming,welding,cooling, sizing →accurate pipe length size,cutting →package.

3. Processing capability of the equipment:

Round: Φ89-273mm；

Square: 70*70-200*200mm

Rectanguler: 80*60-300*100mm

Thickness: 1.5-8mm

Max. Production Speed: Max.50m/min

Main parts:

No. Name Quantity Unit
1 Coil car 1 Piece
2 Uncoiler 1 Piece
3 Straightener unit 1 piece
4 Flattener unit 1 piece
5 Butt Shear & Welder 1 Piece
6 Horizontal Spiral Accumulator 6M 1 Piece
7 Forming and Sizing 1 Piece
8 Milling Saw 1 Piece
9 automatic steel pipe palletizing machine 1 Piece
10 600Kw H.F. Welder 1 Set
11 the Entrance Section hydraulic station 1 Set
12 Transit roller 24 m

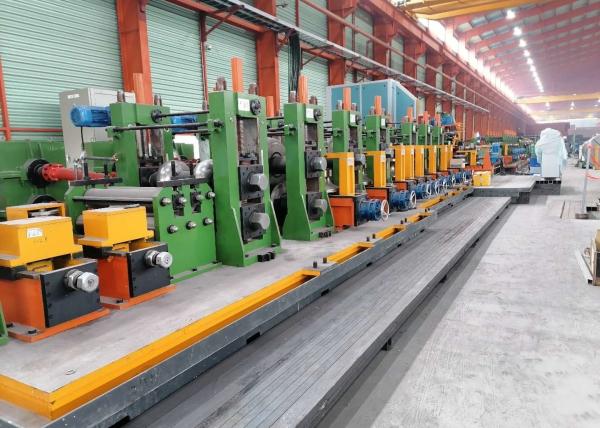

ERW Steel Pipe Production Line The Steel Belt Feeding Unit, Through The Roll Bring Curled Up Into A Tube Billet SteelERW Steel Pipe Production Line The Steel Belt Feeding Unit, Through The Roll Bring Curled Up Into A Tube Billet SteelERW Steel Pipe Production Line The Steel Belt Feeding Unit, Through The Roll Bring Curled Up Into A Tube Billet Steel

ERW Steel Pipe Production Line The Steel Belt Feeding Unit, Through The Roll Bring Curled Up Into A Tube Billet Steel

ERW Tube Mill Other Model

Model Diameter Range Pipe Thickness Molding speed(m/min) Motor Power(KW) Mechanical area
(m³)
HG20 8-20MM 0.3-1MM 30-120 55 7×50
HG32 12-32MM 0.3-2.0MM 30-120 75 7×50
HG50 16-50MM 0.8-2.5MM 30-110 110 7×60
HG60 20-60MM 0.8-3MM 30-100 132 7×65
HG76 12-76MM 1-3MM 30-100 320 8×80
HG89 32-89MM 1-4MM 30-80 350 8×80
HG114 45-114MM 1.5-5.0MM 30-60 400 10×100
HG165 60-165MM 3-7MM 30-50 600 10×110
HG219 114-219MM 4-8MM 20-40 800 12×150
HG273 114-273MM 4-10MM 15-30 1000 18×160
HG325 165-325MM 4-12MM 10-30 1200 18×180
HG426 165-426MM 4-16MM 8-25 1400 18×180
HG508 219-508MM 4-20MM 8-20 2000 21×180


Our Services

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
