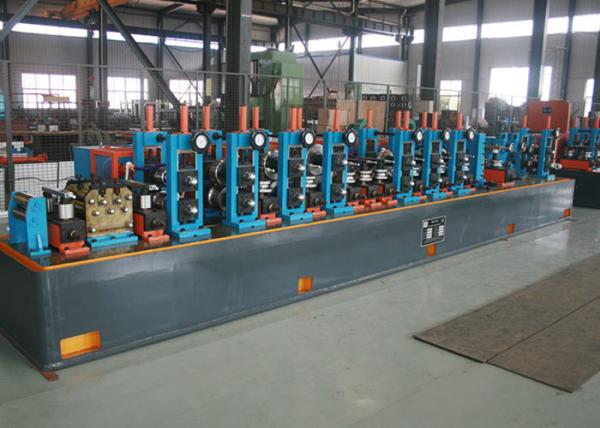

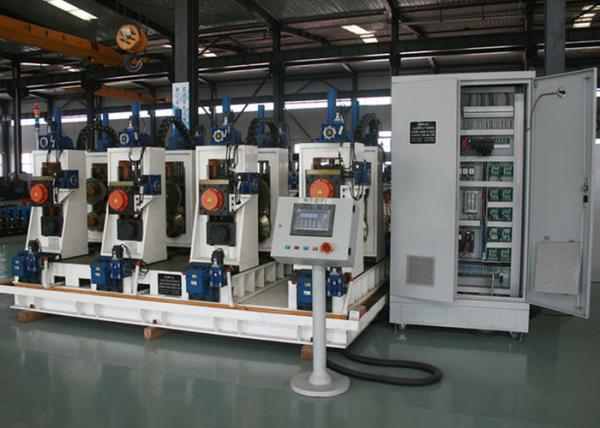

High Speed Carbon Steel Pipe Square Tube Welded Pipe Mill
High Speed Carbon Steel Pipe Square Tube Welded Pipe Mill
High Speed Carbon Steel Pipe Square Tube Welded Pipe Mill
High Speed Carbon Steel Pipe Square Tube Welded Pipe Mill
Specifications
Brand Name :
TENGTIAN
Model Number :
HG76
Certification :
CE ISO9000 BV
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5 set/month
Delivery Time :
90 wording days
Packaging Details :
standard export package
product name :
High Speed Carbon Steel Pipe Square Tube Welded Pipe Mill
Production :
square pipe,round pipe
Speed :
20-100m/min
Max size :
80x80mm
Thickness :
5.0mm
roller material :
Cr12/Cr12Mov
steel material :
CRC/HRC/GI STEEL
keywords :
Square Tube Welded Pipe Mill
Description

High Speed Carbon Steel Pipe Square Tube Welded Pipe Mill

1.Machine General Introduction

The welded pipe mill is our company in order to meet the requirements of the international market, according to our company LW series unit designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe,LTZ pipe.Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

2.Main Parameters and Specifications:

Model Side Range Thickness Production speed
HG20 8~ 20mm 0.3 -1 mm 30 - 120m/min
HG32 12~ 32 mm 0.3 - 2.0 mm 30 - 120m/min
HG50 17 ~50 mm 0.8 - 2.5 mm 30 - 110m/min
HG60 17~ 60mm 0.8 - 3 mm 30 - 100m/min
HG76 20~ 76mm 1 - 3 mm 30 - 100m/min
HG89 30 ~ 89 mm 1 - 4 mm 30 - 80m/min
HG114 50 ~ 114 mm 1.5 - 5.0 mm 30 - 60m/min
HG165 76 ~ 165mm 3 - 7 mm 30 - 50m/min
HG219 114~ 219 mm 4 - 8 mm 20 - 40m/min
HG273 165 ~ 273 mm 4 - 10 mm 15 - 30m/min
HG325 219 ~ 325 mm 4 - 12 mm 10 - 30m/min
HG426 219 ~ 426 mm 4 - 16 mm 8 - 25m/min
HG508 273~ 508 mm 4 - 20 mm 8 - 20m/min

the machine size can design as customer different require.

3.Working Process:

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

4.Quality and After-sale Service Warranty

Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.

High Speed Carbon Steel Pipe Square Tube Welded Pipe Mill

High Speed Carbon Steel Pipe Square Tube Welded Pipe Mill
