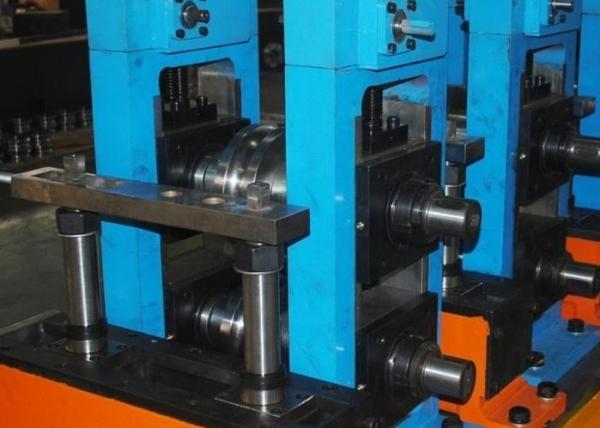

High Efficiency 60 mm round welded Pipe Manufacturing Machine Tube Mill Machine
High Efficiency 60 mm round welded Pipe Manufacturing Machine Tube Mill Machine
High Efficiency 60 mm round welded Pipe Manufacturing Machine Tube Mill Machine
High Efficiency 60 mm round welded Pipe Manufacturing Machine Tube Mill Machine
High Efficiency 60 mm round welded Pipe Manufacturing Machine Tube Mill Machine
High Efficiency 60 mm round welded Pipe Manufacturing Machine Tube Mill Machine
High Efficiency 60 mm round welded Pipe Manufacturing Machine Tube Mill Machine
High Efficiency 60 mm round welded Pipe Manufacturing Machine Tube Mill Machine
High Efficiency 60 mm round welded Pipe Manufacturing Machine Tube Mill Machine
High Efficiency 60 mm round welded Pipe Manufacturing Machine Tube Mill Machine
High Efficiency 60 mm round welded Pipe Manufacturing Machine Tube Mill Machine
High Efficiency 60 mm round welded Pipe Manufacturing Machine Tube Mill Machine
Specifications
Brand Name :
TENGTIAN
Certification :
CE ISO9000 BV
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5 set/year
Delivery Time :
100 wording days
Packaging Details :
standard export package
Model Number :
HG 60
Production Name :
Tube Mill Machine
Max size :
16 - 60 mm
Thickness :
0.5 - 2.0 mm
Length :
6m
Warranty :
one year
Pipe material :
carbon steel
Pipe shape :
round
Key words :
Round Welded Pipe Manufacturing Machine Tube Mill Machine
Description

High Efficiency 60 Mm Round Pipe Manufacturing Machine Tube Mill Machine

1.Machine General Introduction

The high-frequency round welded pipe production line is used to produce welded pipes with a diameter of Φ 16 - Φ 60 mm and the wall thickness of 0 . 5 - 2 . 0 mm. The equipment has high precision and good stability. The main equipment is processed by CNC machining center to ensure the accuracy of each part, so as to ensure the accuracy of the whole machine and ensure product quality.

2.Main Parameters and Specifications:

⑴ Material Specifications :

Material Cabon Steel
strip width 50 - 200 mm
strip thickness 0 . 5 - 2 . 0 mm
I.D of Coils 500 mm
O.D of Coils 1800 mm
Coil Weight 2 .5 T

⑵ Welded Pipe Specification :

Round Pipe Diameter Φ 16 ～ φ 60 mm
pipe thickness 0 . 5 - 2 . 0 mm
Finish pipe length 6 m
Cut length accuracy ± 1.5 mm
Forming speed 20 - 120 m / min

⑶ workshop require : 6 m wide, 80 m long, at least 5m high from Ceiling Rails to Ground.

Notice:You can modify it according to the actual length of the workshop

3.Working Process:

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

4.Quality and After-sale Service Warranty

Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.
