50 Mm Tube Mill Machine Round Pipe Making Machine
50 Mm Tube Mill Machine Round Pipe Making Machine
50 Mm Tube Mill Machine Round Pipe Making Machine
50 Mm Tube Mill Machine Round Pipe Making Machine
Specifications
Brand Name :
TENGTIAN
Model Number :
HG50mm
Certification :
CE ISO9000 BV
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5 set/month
Delivery Time :
60 wording days
Packaging Details :
standard export package
Model :
HG 50
Production :
round pipe
Name :
Tube Mill Machine
Other pipe :
L T Z pipe
Max size :
50mm
Thickness :
2mm
Speed :
20-120m/min
Rollers :
Cr12
Description

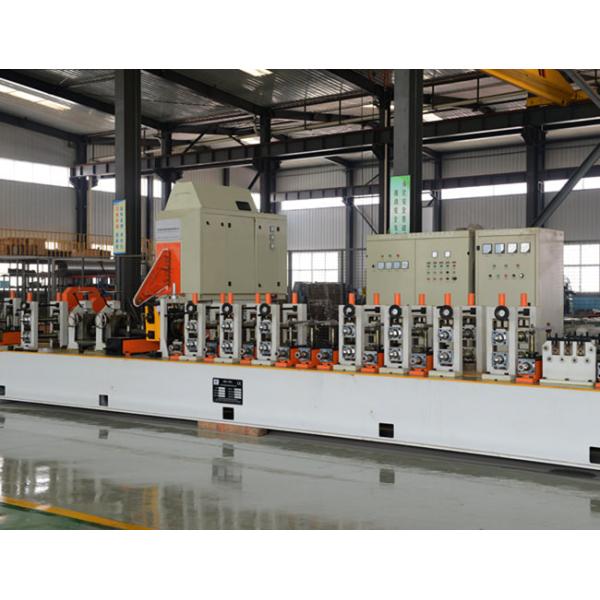

50MM Round pipe making Machine Tube Mill Machine

1.Machine General Introduction

it is designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe,LTZ pipe.

Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.the tube mill machine with different type,include normal tube mill machine, full automatic type,semi-automatic type,high precision tube mill machine can meet customer different require.

2.Main Parameters and Specifications:

  • steel material: Q235,Q345 Low carbon steel
  • Mechanical properties:σb≤610Mpa,σs≤345MPa
  • steel width:60-160mm
  • round pipe size:19-50mm
  • pipe thickness:0.8-2.5mm
  • square tube size:15x15-40x40mm
  • forming speed:20-100m/min
  • pipe length:6-12meter
  • total power:approx 400kw
  • factory require: long 80meter,width 5meter(can design layout according to customer factory)

3.Working Process:

strip steel to coil→uncoiler →shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

4.Quality and After-sale Service Warranty

Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.
