Specifications
Brand Name :
TengTian
Model Number :
HG 76
Certification :
CE, ISO9001, BV
Place of Origin :
Hebei
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
50 Sets/Year
Delivery Time :
120 work days
Packaging Details :
Export waterproof and Seaworthy packing.
Product name :
80m/Min Tube Mill Machine Hole Design Electric Welded Steel Pipe Automatic Tube Mill
Applicable materials :
steel
Equipment Specification :
customer specified
Forming method :
Roller Squeeze
Welding method :
High frequency induction welding
speed :
80m/min
Warranty :
One year
Material :
Low carbon HRC
Forming type :
direct forming
Work shop :
120 x 10 m, H＞7m ( crane to ground )
Description

80m/Min Tube Mill Machine Hole Design Electric Welded Steel Pipe Automatic Tube Mill

I. Introduction

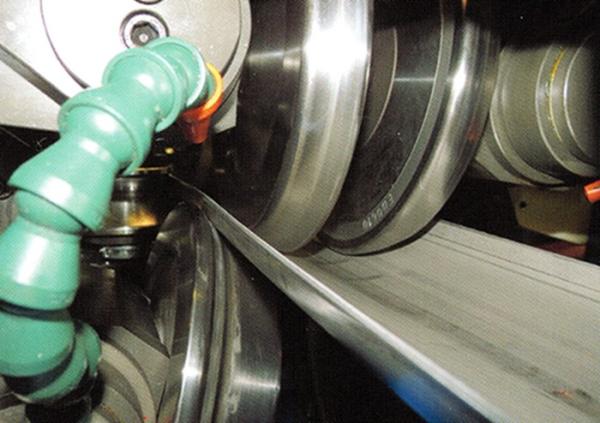

The high-frequency straight seam welded pipe production line feeds a certain specification of steel strip into the unit, rolls the steel strip into a tube billet through rollers, and then uses the proximity effect and skin effect of high frequency to instantly heat the edge of the strip to the welding temperature. The welding is completed under the force of the extrusion roller, and then it is cooled by water, sizing and straightening to become the steel pipe of the required specification. The operation and maintenance are convenient and simple. The unit has high processing quality and assembly accuracy, and can produce electric welded steel pipes with relatively high precision by adopting a reasonable roll pass.

II. Product applicable industry

  • construction
  • decorate
  • Oil
  • gas
  • Photovoltaic power generation
  • ......

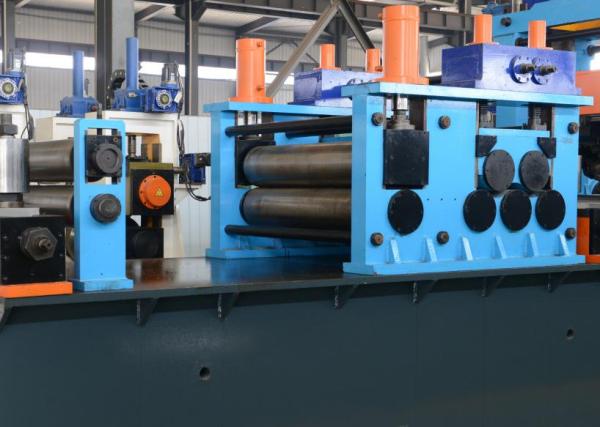

III. Equipment composition

1. Loading car 2. Uncoiler
3. Straightener unit 4. Flattener unit
5. Automatic Shear & Welder 6. Accumulator
7. Forming & Sizing 8. Cold saw / Milling saw / Flying saw
9. Transit roller + Unloading Rack 10. Automatic palletizing machine
11. Roller 12. High frequency welder

80m/Min Tube Mill Machine Hole Design Electric Welded Steel Pipe Automatic Tube Mill

IV. Product parameter specifications

Model Side length Range Thickness Production speed (m/min) Motor Power(KW) Mechanical area
(m³)
HG20 6 x 6 ~ 16 x 16 mm 0.3 -1 mm 30 - 120 55 7 × 50
HG32 9 x 9 ~ 25 x 25 mm 0.3 - 2.0 mm 30 - 120 75 7 × 50
HG50 12 x 12 ~ 40 x 40 mm 0.8 - 2.5 mm 30 - 110 110 7 × 60
HG60 15 x 15 ~ 47 x 47 mm 0.8 - 3 mm 30 - 100 132 7 × 65
HG76 9 x 9 ~ 60 x 60 mm 1 - 3 mm 30 - 100 320 8 × 80
HG89 25 x 25 ~ 70 x 70 mm 1 - 4 mm 30 - 80 350 8 × 80
HG114 35 x 35 ~ 89 x 89 mm 1.5 - 5.0 mm 30 - 60 400 10 × 100
HG165 47 x 47 ~ 129 x 129 mm 3 - 7 mm 30 - 50 600 10 × 110
HG219 89 x 89 ~ 172 x 172 mm 4 - 8 mm 20 - 40 800 12 × 150
HG273 89 x 89 ~ 214 x 214 mm 4 - 10 mm 15 - 30 1000 18 × 160
HG325 129 x 129 ~ 255 x 255 mm 4 - 12 mm 10 - 30 1200 18 ×180
HG426 129 x 129 ~ 335 x 335 mm 4 - 16 mm 8 - 25 1400 18 × 180
HG508 172 x 172 ~ 400 x 400 mm 4 - 20 mm 8 - 20 2000 21 × 180
Recent business technology expansion, adding available projects
HG600 Production line for Square welded pipes, max side length of pipe is 600 x 600mm.
HG765 Production line for Round welded pipes, max diameter of pipe is 765mm.
