Specifications
Brand Name :
Hebei TengTian
Model Number :
F150x150
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 Sets/Year
Delivery Time :
180 days after sign contract
Packaging Details :
standard export package
Price :
USD 1500000.00 Can negotiate the price
Product name :
Precision Tube Mill Directly Forming Tube mill
pipe shape :
square rectangular and profile pipe
pipe size :
60*60-150*150mm
pipe thickness :
3.0-7.0mm
pipe Material :
carbon steel,GI Steel
feature :
full automatic
key words :
precision tube mill
Keywords :
Precision Mill Directly Forming Tube mill
Description

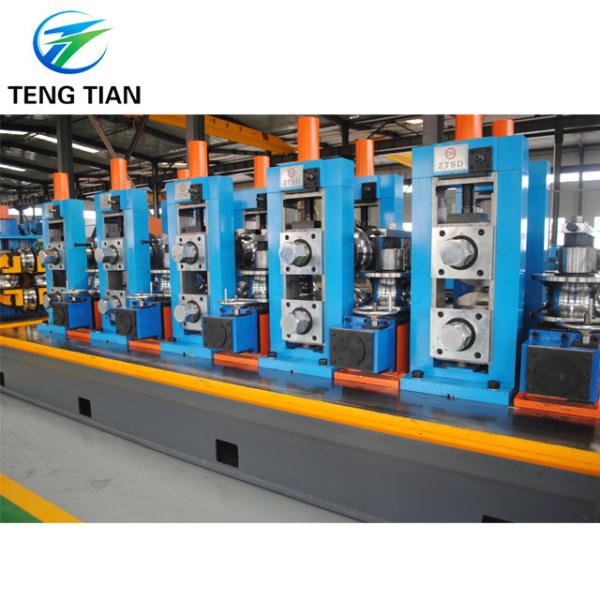

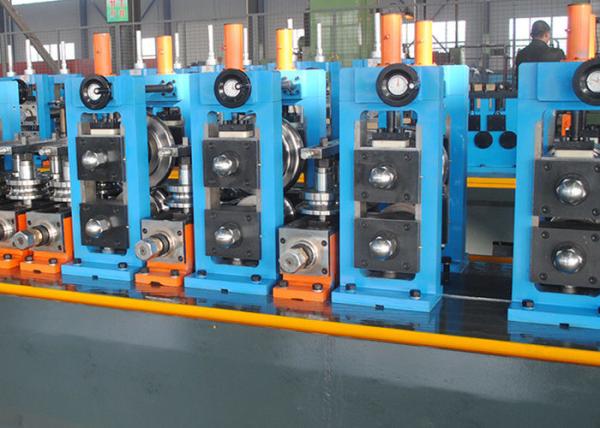

Automatic Carbon Steel Square Tube Directly Forming Precision Tube Mill

1. Introduction

Automatic Carbon Steel Square Tube Directly Forming Precision Tube Mill this type machine adopts one set of combined mould, producing the different specifications of the tube, only need to adjust,no need to change,the roller savings rate at above 90%,thus reducing the cost of the roller and improve the efficiency,use the motor automatic adjustment,thus decreasing the number of workers,reduce the labor costs,decreased the workers labor intensity, improved the workers working environment

In a very short period of time to finish the adjustment of the roller, extreme reduce the roller change time when replace the products, thus improve the efficiency and reduce the productive cost.The equipment operation is simple,just need to know the size and the wall thickness of the tubes in the production,then input it to the interface,it will make adjustment automatically, thus lower levels of debugging personnel's technical requirements

2. Product parameter specifications

Standard SPHC,Q235,Q345
Material Low carbon steel and low alloy constructional steel
Mechanical properties σb≤520Mpa,σs≤365MPa
Pipe size 60x60-150x150mm
Pipe thickness 3.0-7.0mm
pipe length 4-12 meter
Pipe-cutting Precision 0-6mm
Work shop 120x8m, H＞6m(crane to ground)
Power Approx.800KW 380V/50Hz/3 phases

3. Quality and Service Warranty

After the machine arrives at the buyer,technical service person will go to buyer factory provide guidance on operation,debugging and maintenance the machine,responsible for technical training for equipment operation and maintenance personnel of the buyer.

whole line warranty one year
