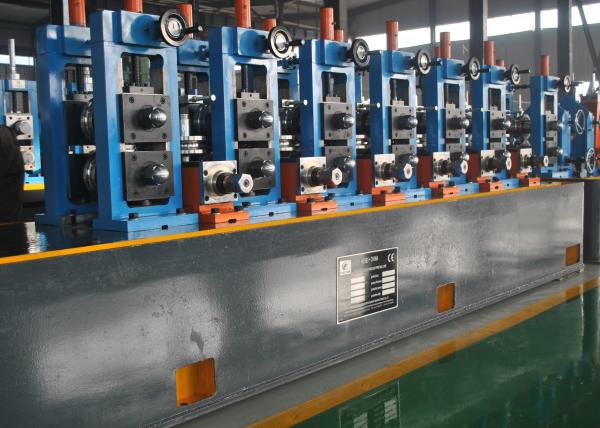

Low Alloy 1.5mm Erw Steel Pipe Mill Max 80m/Min Speed
Low Alloy 1.5mm Erw Steel Pipe Mill Max 80m/Min Speed
Low Alloy 1.5mm Erw Steel Pipe Mill Max 80m/Min Speed
Low Alloy 1.5mm Erw Steel Pipe Mill Max 80m/Min Speed
Low Alloy 1.5mm Erw Steel Pipe Mill Max 80m/Min Speed
Low Alloy 1.5mm Erw Steel Pipe Mill Max 80m/Min Speed
Specifications
Brand Name :
Tengtian
Model Number :
HG76
Certification :
CE, ISO9001,
Place of Origin :
HEBEI,CHINA
MOQ :
1 set
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
50 set per year
Delivery Time :
5 months
Packaging Details :
Export waterproof and Seaworthy packing.
Production Name :
Low Alloy Steel 1.5mm Erw Pipe Machine , ERW Pipe Mill Max 80m/Min Speed
Pipe Diameter :
25-76mm
product speed :
Max 50m/min
material :
carbon steel,stainless steel,low alloy steel
Cutting Saw :
Friction Saw Cutting
Forming speed :
Max.80m/min
pipe thickness :
4.0-10.0mm
key word :
ERW Pipe Mill Max 80m/Min Speed
Description

Low Alloy Steel 1.5mm Erw Pipe Machine , ERW Pipe Mill Max 80m/Min Speed Process:

material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table

Low Alloy Steel 1.5mm Erw Pipe Machine Basic Parameters:

stands of forming mill 7
stands of sizing mill 5
shaft material 40Cr
round pipe diameter 19-76mm
Round pipe thickness 1.5-3.0mm
square pipe size 15×15-60×60mm
square pipe thickness

1.5-2.0mm

ERW Tube Mill Other Model

Model Diameter Range Pipe Thickness Line Speed(m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20

Our Services

Quality Assurance

we Shall be responsilbe for quality problem resulted from design and manufacture with one year after successfull installation and debugging and all the expenses for replacing parts and components( exclude human factors and vulerable components ) shall be born by us !

Debugging

1) Factory will send 1-2technical engineers for installation and testing operation

2) The site, the equipment foundation, cool constructions etc. responsible by buyer according to equipment material which provides by supplier, the equipment for installation (lift equipment, tool etc.), the installation accessory material (wire, drive pipe, water pipe and so on), the labor force arranged by the buyer.

3) The buyer is responsible for power supply, water supply and gas supply to the equipment interface connector

4) Buyer Preparation Notes
