Specifications
Brand Name :
TengTian
Certification :
BV,CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 1,408,000-1,808,000 / Set
Supply Ability :
21 sets per year
Delivery Time :
90 days
Packaging Details :
plastic film winding, wooded case for electric components
Product Name :
Big Diameter Spiral Welding Pipe Mill USA Lincoln Welder Milling Saw For Oil Transportation
Welding Type :
SAW
Running Speed :
3.5mm
Steel Strip Width :
190-1220 mm
Production Speed :
1-5 m/min
Max Size :
1220 mm
Cooling Method :
Water Cooling
Accumulator Material :
Carbon Steel
Pipe Thickness :
4-16mm
keywords :
Big Diameter Welding Pipe Mill
Description

Big Diameter Spiral Welding Pipe Mill USA Lincoln Welder Milling Saw For Oil Transportation

we do well in custom engineered

Main Parameters

Coil Materials
OD ø190 - ø 1250 mm
ID ø600 - ø760 mm
Grade Q235B
Wall thickness 4-16 mm mm
Width 500 - 1500 mm
Weight ≤20 Tons

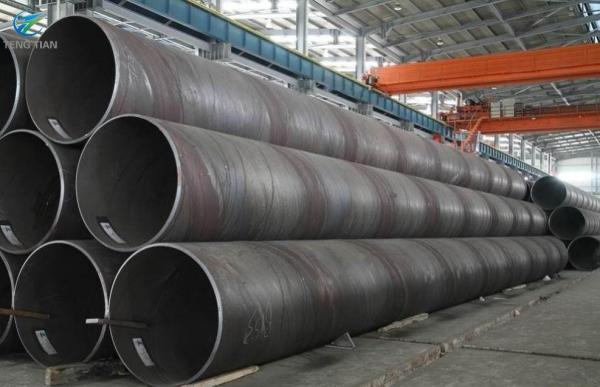

Output Pipe
Diameter ø190 - ø1220 mm
Wall thickness 4-16 mm mm
Length 8 - 12 M
Weight Max. 20 Tons
Spiral distance Max. 2200 mm
Standard GB/T9711 GB/T5037
Production Line
Working style front pendulum + discontinuous + centralized positioning
Feeding Left/right(as order)
Forming Three-roll bending, external control sizing
Forming angle 40°～79°
Blanking Pendulum roll
Feeding speed 0.6 -3.0 m/min
Welding speed 0.5 - 2.8 m/min
Welder USA Lincoln DC1500
Welding Single Out+In auto SAW
Productivity

Approx. 100/8(tons/hour)
Capacity Approx. 550 kw(include welder)
Engine
Voltage 220 / 380V, 50HZ
Air compressor 0.6Mpa 0.9m³/min
Workshop
Ceiling rails 1x 30/10T, 1x10T
Lifting height 7m+
Area(main machine) 36x24 m
