HV 16S 100A RC Car ESC With Box Programming Supporting 102*57*40mm Size
HV 16S 100A RC Car ESC With Box Programming Supporting 102*57*40mm Size
HV 16S 100A RC Car ESC With Box Programming Supporting 102*57*40mm Size
HV 16S 100A RC Car ESC With Box Programming Supporting 102*57*40mm Size
HV 16S 100A RC Car ESC With Box Programming Supporting 102*57*40mm Size
HV 16S 100A RC Car ESC With Box Programming Supporting 102*57*40mm Size
HV 16S 100A RC Car ESC With Box Programming Supporting 102*57*40mm Size
HV 16S 100A RC Car ESC With Box Programming Supporting 102*57*40mm Size
Specifications
Brand Name :
BigFlier
Model Number :
F-16S-100A-C
Certification :
CE
Place of Origin :
ShenZhen
MOQ :
1
Price :
Negotiable
Payment Terms :
Paypal, TT
Supply Ability :
500pcs/month
Delivery Time :
2-5 working days
Packaging Details :
each packed into OPP bag ,then packed into Carton box.
material :
Mosfet
color :
white
Warranty :
12 Months
customized :
yes
Radio Control Style: :
RC Hobby
Type :
Car
Description

HV 16S 100A RC Car ESC With Box Programming Supporting 102*57*40mm Size

RC CAR ESC Basic information:

Voltage Current Size(mm) weight(g) BEC (Volts/Amps) Box Programming support Computer Programming support Firmware update
4-16S 100A 102*57*40 230g OPTO Yes Yes Yes

Feature:

l The firmware is upgraded recently .

l Two way communication while connecting it with computer.

l Motor wire can be checked while Connecting the power battery.

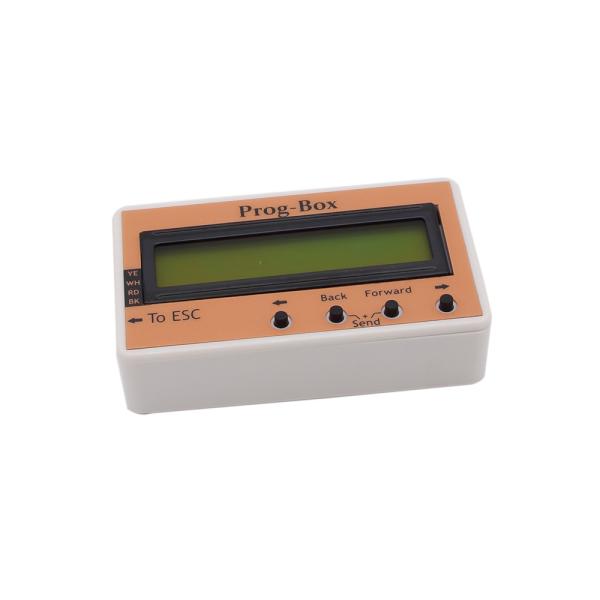

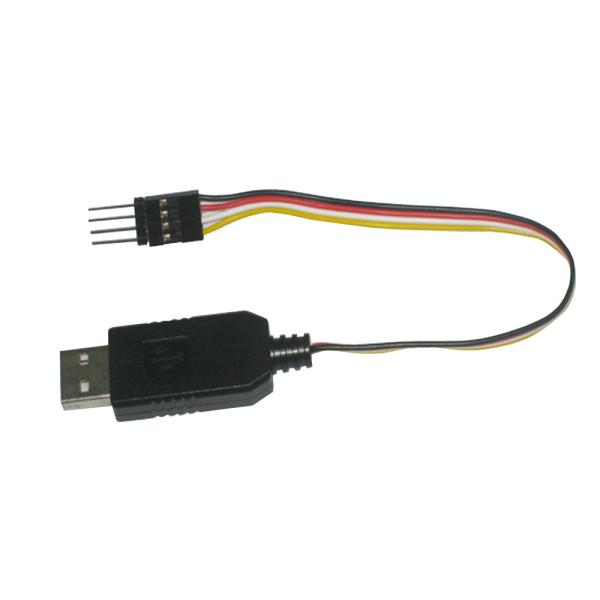

l Simply set function value by Prog-Box or by PC via USB link wire.

l Li-MH/Li-Po,Ne-Cd/Ne-mH,LiFe battery can be use.

l Enables setting the voltage per cell for the point at which the controller’s cut off circuitry engages.Li-MH/Li-Po from 2.0-3.6V,Ne-Cd/Ne-.4-1.0V,LiFe from2.2-2.8V

l Reverse function. the delay time of reverse is adjustable.

l The power of the motor forward/ reverse can be set.

l Automatically detection the throttle route or can be set a fixed number by manual operation.

l Auto cut off the power within 3 seconds if no radio signs.

Timing setting may be adjusted (0°-30°) to suit the motor type.

Setting function value:

HV 16S 100A RC Car ESC With Box Programming Supporting 102*57*40mm Size

HV 16S 100A RC Car ESC With Box Programming Supporting 102*57*40mm Size

HV 16S 100A RC Car ESC With Box Programming Supporting 102*57*40mm Size

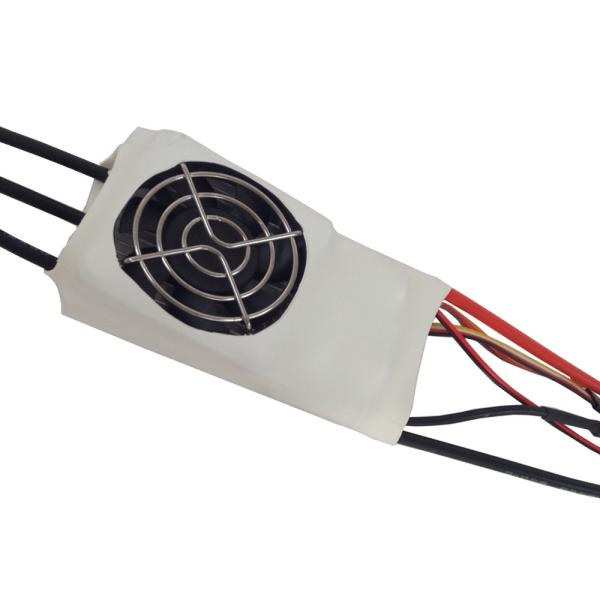

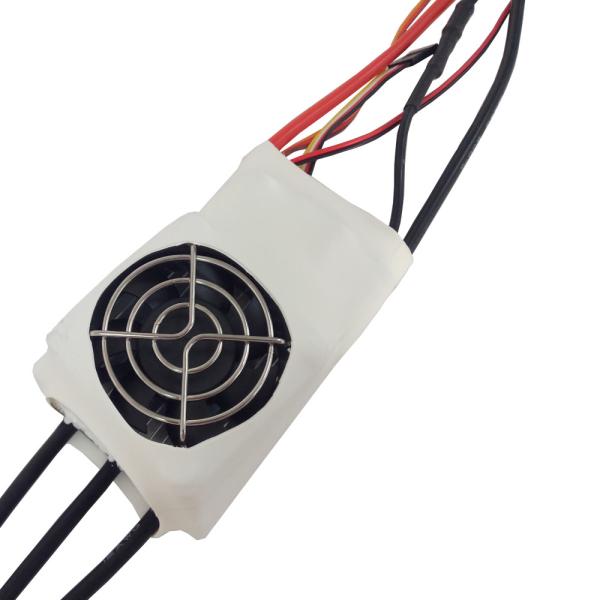

Products Picture:

HV 16S 100A RC Car ESC With Box Programming Supporting 102*57*40mm Size

HV 16S 100A RC Car ESC With Box Programming Supporting 102*57*40mm Size

Trade Terms:

1.Payment :T/T ,Paypal,West union .

2.Production lead time :5 days for 100-200 pcs ,10days for 200-300pcs .

3.Sample can be delivered within 3 days.

4.Discounts are offered based on order quantities .

5.MOQ: 2 pcs.

Shipping&Return:

1. Items will be shipped within 3 business day after payment completed received.

2. Items are shipped from DHL Express ,UPS ,EMS,, reach most of the countries within 3-7 days respectively.

3. Warranty Period is 2 yrs for this item.

4. If product can not work, or find it as defects within in 7 days after receipt, please contact us, we will replace or refund.


5. All emails will be answered within 1 working day.
