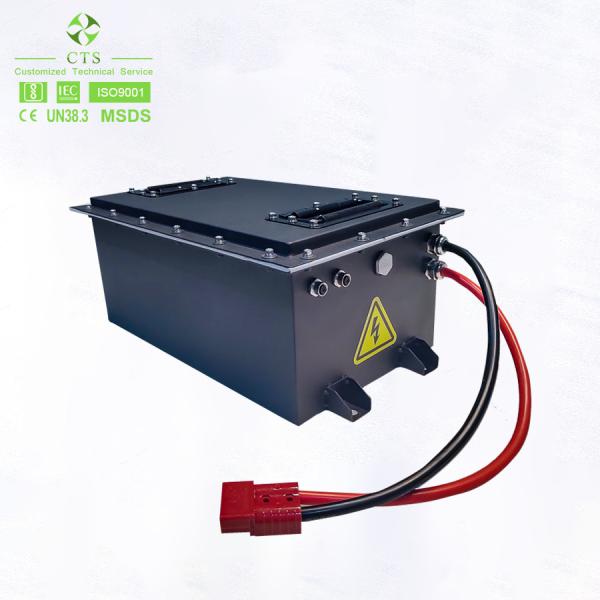

OEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMS
OEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMS
OEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMS
OEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMS
OEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMS
OEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMS
OEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMS
OEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMS
Specifications
Brand Name :
CTS OEM Battery
Model Number :
CTS-48100
Certification :
ISO,MSDS,UN38.3
Place of Origin :
China
MOQ :
2
Price :
700USD
Payment Terms :
L/C, T/T,Alibaba pay
Supply Ability :
5000pcs/month
Delivery Time :
35 days
Packaging Details :
wooden case
Product Name :
OEM Battery
Normal Capacity :
50ah,100ah
Normal Voltage :
48v,36V(Optional)
Warranty :
2~5 years
Application :
golf cart/ Slow speed car/ electric vehicle
Protection :
Over-charge, Over-discharge, Over-current, Short-circuit etc.
Cycle Life :
3000 times
Type :
lifepo4 battery pack,lifepo4/lithium battery
Size :
Customized
BMS :
Smart BMS
Bluetooth :
Optional
Description

OEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMS

OEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMS

DIMENSIONS

OEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMSOEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMS

PRODUCT ADVANTAGES

OEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMS

Use only the highest quality batteries
Batteries that use the same standard as the country
OEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMS

48V LifePO4 Battery Pack built with the grade A high quality LiFePO4
cell, which provides 3500+ cycle life and a 10 year lifetime cycle use.
* Use 100% brand new grade A Lifepo4 cells
* Charge current: ≤100A
* Continuous discharge current: ≤100A
* Case Material: Metal Case
* Over 6000 cycles at 80% DoD

MODEL CTS3680 CTS36160 CTS4880 CTS48160 CTS7280 CTS72160
ELECTRICAL SPECIFICATIONS
Cell Configuration 12S1P 16S1P 16S1P 16S2P 23S1P 23S2P
Rated Capacity 80Ah 80Ah 105Ah 160Ah 80Ah 160Ah
Rated Voltage 38.4V 51.2V 51.2V 51.2V 73.6V 73.6V
Energy(kwh) 3.072 4.096 5.376 8.192 5.888h 11.776
Dimensions(cm) 35*20*25 45 * 30 *18 45 * 35 *25 50*35*25 35*35*25 65*35*25
Weight 28Kg 40Kg 48Kg 68Kg 48Kg 90Kg
DISCHARGE/CHARGE SPECIFICATIONS
Discharge Cut-off Voltage 30V 40V 40V 40V 57.5V 57.5V
Max Continuous discharge current 80A 80A 100A 150A 80A 150A
Charging Limited Voltage 43.8V 58.4V 58.4V 58.4V 83.95V 83.95V
Max Charging Current 40A 40A 50A 80A 40A 80A
Charge Temp 0~55ºC
Discharge Temp -20~55ºC
Recommended
Operating Temp		 15~35ºC
Recommended Storage Temp 15~35ºC, 45~75%RH
WARRANTY
2-Year warranty , 3500 cycles @85% DOD
LIFEPO4 BATTERIES VS LEAD ACID

1.Higher energy density

LifePO4 batteries have more energy density , It is much smaller in weight and volume . Under
the same specification and capacity, the volume of lithium ion battery is about 2/3 of that of
lead-acid battery, and the weight is about 1/3 of that of lead-acid battery.

OEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMS2.Green and environmental protection

Lead acid battery contains a large amount of lead, which will cause certain damage to the environment.
LiFePO4 batteries MAINTENANCE-FREE, free from dayly managing , No water filling, no terminal
tightening and cleaning of acid deposits on the top of our batteries.
OEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMS

3.Security:
LiFePO4 batteries have very high thermal and chemical stability. They have built in BMS which
including over charge, over discharge, over-heating and short circuit protection.
OEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMS

4.HIGHER CHARGING EFFICIENCY LESS POWER CONSUMPTION

Our LiFePO4 batteries can be charged quickly in a short time, up to 2 hours .effectively increasing
productivity.

OEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMS

APPLICATIONS

OEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMS

Since 2011, CTS has focused on one-stop customization of lithium battery products such as electric vehicle batteries,
large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries and so on.

We have more 30 types of cells, and could make OEM battery pack from 12v-800v, 10-200ah, which can be used in electric
vehicle, E-bike, UPS, energy storage system, telecommunication base station,E-scooter, E-tools,unmanned airplane, golf cart,
fork lift, cleaning car , electric wheelchair, etc.


We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized
full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best
quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.

We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join
together to promote the development of renewable energy and friendly environment.

OEM ODM Golf Cart Battery 36V48V72V 100Ah 200Ah Lifepo4 With Smart BMS
