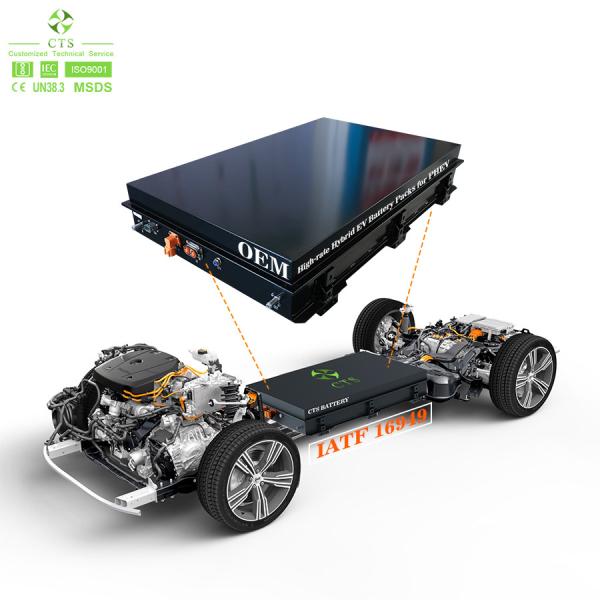

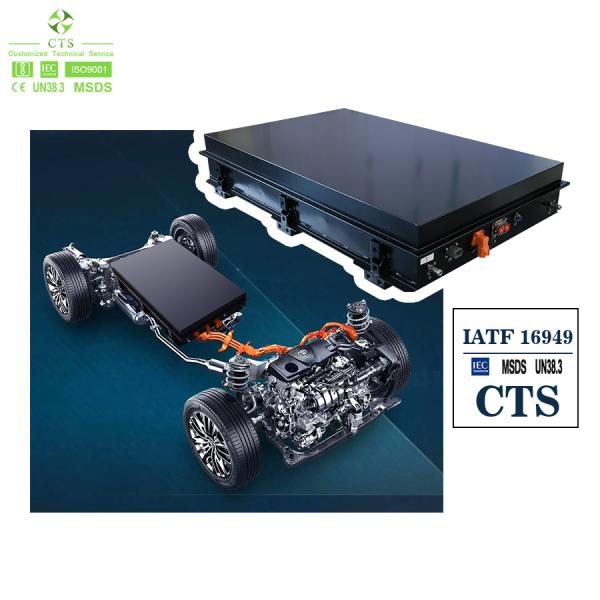

CTS OEM 336V 600V 13kWh 40kWh Lithium ion battery system with High Rate For Hydrogen Fuel Electric Trucks
CTS OEM 336V 600V 13kWh 40kWh Lithium ion battery system with High Rate For Hydrogen Fuel Electric Trucks
CTS OEM 336V 600V 13kWh 40kWh Lithium ion battery system with High Rate For Hydrogen Fuel Electric Trucks
CTS OEM 336V 600V 13kWh 40kWh Lithium ion battery system with High Rate For Hydrogen Fuel Electric Trucks
CTS OEM 336V 600V 13kWh 40kWh Lithium ion battery system with High Rate For Hydrogen Fuel Electric Trucks
CTS OEM 336V 600V 13kWh 40kWh Lithium ion battery system with High Rate For Hydrogen Fuel Electric Trucks
CTS OEM 336V 600V 13kWh 40kWh Lithium ion battery system with High Rate For Hydrogen Fuel Electric Trucks
CTS OEM 336V 600V 13kWh 40kWh Lithium ion battery system with High Rate For Hydrogen Fuel Electric Trucks
CTS OEM 336V 600V 13kWh 40kWh Lithium ion battery system with High Rate For Hydrogen Fuel Electric Trucks
CTS OEM 336V 600V 13kWh 40kWh Lithium ion battery system with High Rate For Hydrogen Fuel Electric Trucks
CTS OEM 336V 600V 13kWh 40kWh Lithium ion battery system with High Rate For Hydrogen Fuel Electric Trucks
CTS OEM 336V 600V 13kWh 40kWh Lithium ion battery system with High Rate For Hydrogen Fuel Electric Trucks
CTS OEM 336V 600V 13kWh 40kWh Lithium ion battery system with High Rate For Hydrogen Fuel Electric Trucks
CTS OEM 336V 600V 13kWh 40kWh Lithium ion battery system with High Rate For Hydrogen Fuel Electric Trucks
CTS OEM 336V 600V 13kWh 40kWh Lithium ion battery system with High Rate For Hydrogen Fuel Electric Trucks
CTS OEM 336V 600V 13kWh 40kWh Lithium ion battery system with High Rate For Hydrogen Fuel Electric Trucks
Specifications
Brand Name :
CTS battery
Model Number :
336V 40Ah Battery Pack
Certification :
MSDS,UN38.3, CE
Place of Origin :
China
MOQ :
2
Price :
US$3,500.00-4,500.00
Payment Terms :
T/T
Supply Ability :
5000 pcs/month
Delivery Time :
35 days
Packaging Details :
Ply wood case
Size :
Customized
Application :
PHEV, HEV, EV, Hybrid vehicle, car, boat
Battery cell :
A level
Type :
lifepo4 battery pack,lifepo4/lithium battery/li-ion battery
Warranty :
2 Years
Features :
High Power Density
Oem/odm :
Available
Description

CTS OEM 336V 600V 13kWh 40kWh lithium ion battery system with high rate for Hydrogen fuel Electric Trucks
CTS OEM 336V 600V 13kWh 40kWh Lithium ion battery system with High Rate For Hydrogen Fuel Electric Trucks

The battery used in a PHEV Plug-in Hybrid Electric Vehicle ) is specifically designed to provide a balance between electric driving
range and overall vehicle weight. PHEV batteries are typically larger and have higher capacity compared to batteries used in conventional hybrid vehicles.
Key Characteristics of PHEV Batteries
Battery Type:
PHEVs commonly use lithium-ion (Li-ion) batteries as their primary energy storage system. Li-ion batteries offer a good balance between energy density,
power output, and weight, making them suitable for PHEV.
Capacity:
The battery capacity of a PHEV determines the electric driving range. PHEVs usually have a smaller battery capacity compared to fully electricvehicles,
The capacity normally ranges from 10 to 20 kWh.
Regenerative Braking:
PHEV like other hybrid vehicles, utilize regenerative braking technology, when the driver applies the brakes or decelerates, the electric motor functions as a generator,
converting kinetic energy into electrical energy and storing it in the battery pack .
Weight and Packaging: PHEV batteries are designed to be lightweight and compact to minimize the impact on the overall vehicle weight and space.
This allows PHEVs to maintain good fuel efficiency and practicality while still providing an electric driving option
Rechargeable:
PHEV batteries are rechargeable and can be charged by plugging the vehicle into an external power source.
╣Battery Parameters
Items
CTS-33640
CTS-52540
Voltage
336V
525.6V
Capacity
40Ah
40Ah
Energy
13.44kWh
21.02kWh
Battery cells
3.2V 40Ah-105S1P
3.2V 40Ah-144S1P
Working voltage
265V~383V
360.0~604.8V
Continuous/peak discharge power
40kW/70KW
55kW/85KW
Continuous/peak charge power
30kW/60KW
40kW/80KW
Size/weight
1200*750*184mm,150kg
1320*450*270mm
Enclosure Protection
IP68
IP68
Working Temperature Range
-35~55ºC With Liquid cooling and liquid heating
Recommended Operating Temperature
15~35ºC
Life cycles
>3000
More Models Available :
Models
CTSH25C01JC
CTSH25C07Y
CTSH25C08Y
CTSH25C09Y
Capacity
(25ºC,1C)
25Ah
Cell Configuration
1P148S
2P72S
1P162S
2P88S
Energy
13.61kWh
13.24kWh
14.90kWh
16.19kWh
Normal voltage
Voltage ranges
544.6V
407.0~621.6V
264.96V
198.0~302.4V
596.16V
445.5~680.4V
323.84V
242.0~369.6V
Peak charge/discharge power
(25ºC,30s,50%soc)
98kW/104kW
96kw/101kw
108kw/114kw
117kw/124kw
Continuous charge/discharge power
(25ºC,50%soc)
55kW/69kW
53kw/67kw
60kw/75kw
65kw/81kw
Size(mm)
(1060±10)*(630±10)*(235±5)mm
Thermal management
Liquid cooling/electric heating
Working Temperature Range
-35~55ºC
Models
CTS48C07Y
CTS48F04Y
CTS48F05Y
CTS48F05Y
Capacity
(25ºC,1C)
48Ah
Cell Configuration
2P72S(C)
3P42S(C)
1P172S(F)
2P86S(F)
Energy
25.22kWh
22.07kWh
30.13kWh
30.13kWh
Normal voltage
Voltage ranges
262.8V
180.0~302.4V
153.3V
105.0~176.4V
627.8V
430.0~722.4V
313.9V
215.0~361.2V
Peak charge/discharge power
(25ºC,30s,50%soc)
83kW/83kW
73kW/73kW
99kW/99kW
99kW/99kW
Continuous charge/discharge power
(25ºC,50%soc)
53kW/55kW
47kW/48kW
63kW/66kW
63kW/66kW
Size(mm)
1060*630*235mm
1360*630*235mm
Thermal management
Liquid cooling/electric heating
Liquid cooling/electric heating
Working Temperature Range
-35~55ºC
CTS OEM 336V 600V 13kWh 40kWh Lithium ion battery system with High Rate For Hydrogen Fuel Electric Trucks
Advancements in battery technology continue to improve the energy density and efficiency of PHEV batteries, resulting in increased electric driving range and overall performance.
╣Battery Application
CTS Battery can widely used in different EV/PHEV vehicles , if you have similar project , feel free to contact us , we will provide you the best battery solution.
CTS OEM 336V 600V 13kWh 40kWh Lithium ion battery system with High Rate For Hydrogen Fuel Electric Trucks
╣OUR FACTORY
Hunan CTS established in 2011, which is a manufacturer specializing in the R & D, production, sales and service of lithium battery cells and lithium battery packs, focusing on one-stop customized lithium battery products, such as electric vehicle batteries,electric motorcycle batteries, energy storage battery system, Mobile charging station and battery accessories etc...
CTS battery factory has obtained the IATF16949, ISO9001 for automotive quality management systems, demonstrating our qualification and experience in manufacturing automotive-grade products
