CTS 200kwh Capacity EV Battery Pack with IP67 Grade and Lightweight Design
CTS 200kwh Capacity EV Battery Pack with IP67 Grade and Lightweight Design
CTS 200kwh Capacity EV Battery Pack with IP67 Grade and Lightweight Design
CTS 200kwh Capacity EV Battery Pack with IP67 Grade and Lightweight Design
CTS 200kwh Capacity EV Battery Pack with IP67 Grade and Lightweight Design
CTS 200kwh Capacity EV Battery Pack with IP67 Grade and Lightweight Design
Specifications
Brand Name :
CTS
Certification :
CE
Place of Origin :
Hunan,China
MOQ :
2
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 pcs/month
Delivery Time :
40 working days
Packaging Details :
Wooden case and Carton case
Model Number :
CTS-614230
Warranty :
2 Years
Voltage :
614V 600V 576V 768V
OEM :
Yes
Battery Type :
LFP Battery Pack
Cell :
A level prismatic cell
Product Name :
Cts 700v Ev Heavy Equipment Battery 100kWh 60kWh 50kWh For Tractor Lifting Platform
Weight :
<=230Kg
Description

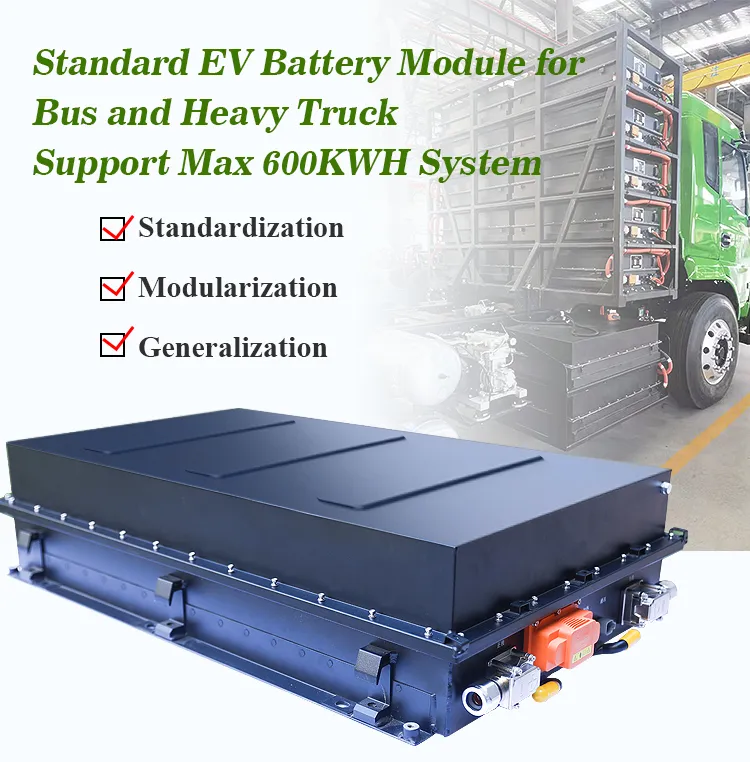

Our standard module widely used in the public bus, industry vehicle, like mining truck, Tunnel vehicle, large capacity AGV, Skyline crane. We have 5 star ★★★★★ experience in different market. lf you have any question,please contact us, we will provide the proper solution for you!
CTS 200kwh Capacity EV Battery Pack with IP67 Grade and Lightweight Design
CTS 200kwh Capacity EV Battery Pack with IP67 Grade and Lightweight Design
CTS 200kwh Capacity EV Battery Pack with IP67 Grade and Lightweight Design
CTS 200kwh Capacity EV Battery Pack with IP67 Grade and Lightweight Design
MODEL
F153205
F153230
F115280
F115304
 F307105 F153150
ELECTRICAL SPECIFICATIONS
Cell Type -Chemistry
3.2V 205ah
3.2V 230ah
3.2V 280ah
3.2V 304ah
 3.2V 105ah 3.2V150ah
Rated Voltage
153.6V
153V
115.2V
115.2V
 307.2V 153.6V
Energy
31.488kWh
35.325kWh
32.256kWh
35.02kWh
 32.25kWh 23.04kWh
IP Protection
IP67
Cycle life
>3000cycles(90%DOD, 0.5C)
CTS 200kwh Capacity EV Battery Pack with IP67 Grade and Lightweight Design

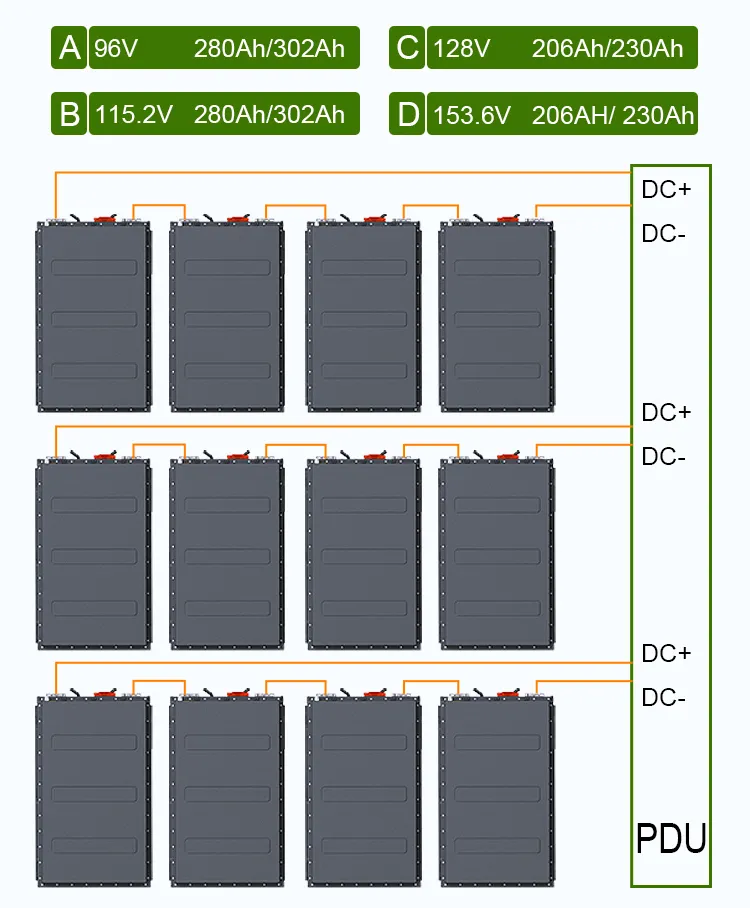

  1. Multiple voltage and capacity choices
Support the max connection of 12 module(4S3P) in one system.
Below are modules available, which can be connected freedomly, max 656V, 600KWH.

CTS 200kwh Capacity EV Battery Pack with IP67 Grade and Lightweight Design
2,Longer life

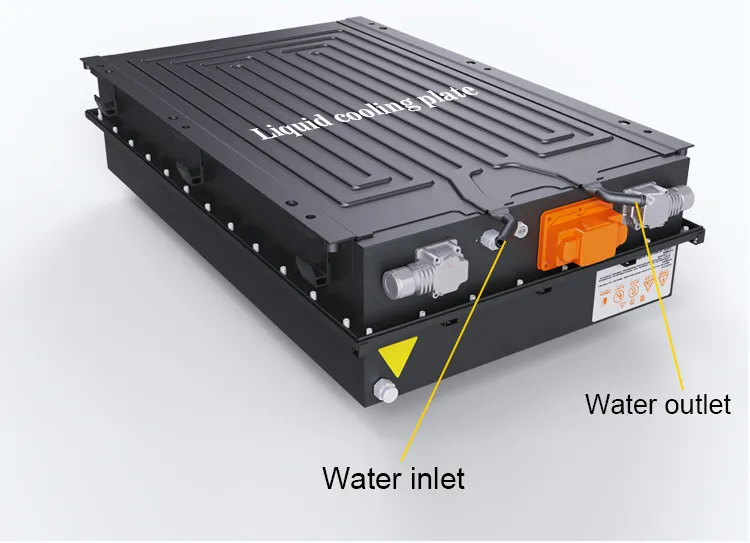

Redesigned liquid cooling system for improved thermal consistency and longer life.
CTS 200kwh Capacity EV Battery Pack with IP67 Grade and Lightweight Design
3,Safer
Reliable lifepo4 cells, multi-tiered safety system.

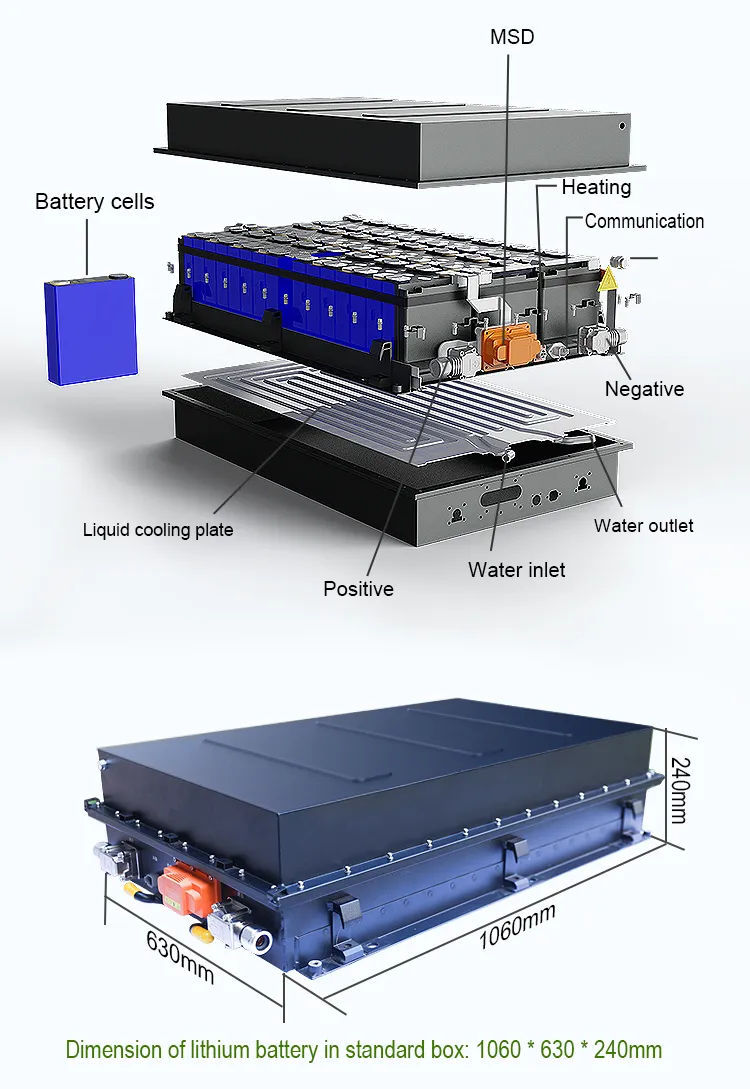

CTS 200kwh Capacity EV Battery Pack with IP67 Grade and Lightweight DesignPACK System Core Technology
Compact + Lightweight Design
Patented Smart Thermal Liquid Technology
Modular Design + Single Module Drivable
The all parts in the module is standard parts which are molded parts
Cell Core Technology
Power type Li-ion battery has long cycle life and fast charging-discharging. It can keep the mobility of electric vehicles.
SOC Calculation:
Real time dynamic calibration
Vehicle operation condition wasconsidered
Multi-method combination
High accuracy measurement of thecell Voltage /temperature/pack current
Amount of data from experiment

Faults Diagnosis:
Insulation & water leakage
Cell voltage out of range
High/low temperature
Communication faults
Contactor weld
Power connection
Temperature sensor faults
CTS 200kwh Capacity EV Battery Pack with IP67 Grade and Lightweight DesignCTS 200kwh Capacity EV Battery Pack with IP67 Grade and Lightweight DesignCTS 200kwh Capacity EV Battery Pack with IP67 Grade and Lightweight Design
