Specifications
Brand Name :
CTS
Model Number :
3.3kW 6.6kW 20kW 1.5kW 2kW OBC
Place of Origin :
China
MOQ :
2
Price :
USD850/PCS
Payment Terms :
T/T, D/P, Western Union
Supply Ability :
5000/month
Delivery Time :
35 days
Packaging Details :
Carton
Product name :
EV Onboard Charger
Efficiency :
>94%
Output Voltage :
12~96VDC, 0~850VDC
Input voltage range :
90~265V
Output Power :
1.5kW, 2kW, 3.3kW, 6.6kW, 20kW
Cooling method :
Air cooling/liquid cooling
Communication :
CAN
Dimension :
Please contact for details
Operating temperature :
-40℃~60℃
Noise :
≤45dB
auxiliary power :
12V3A
Protection Level :
IP67
Description
360V 540V 700V high power 20KW 22KW ev on board charger OBC 3-phase obc for electric bus commercial truck boat
╣PRODUCT DESCRIPTION

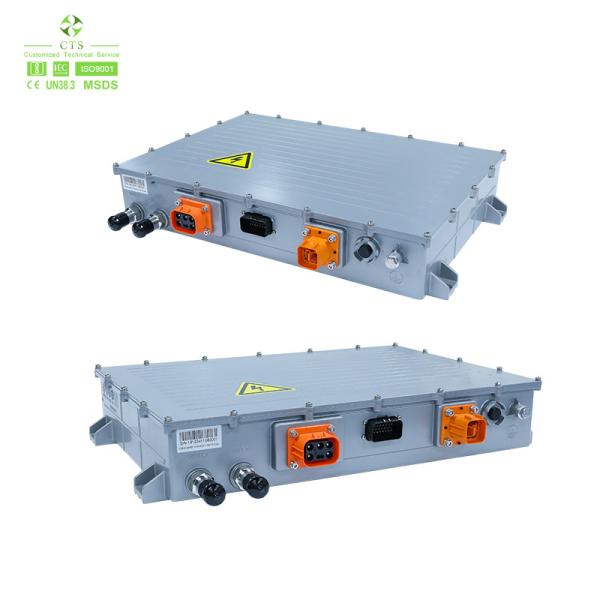

The 20KW on-board charger is a high-power and high-efficiency charger specially developed for new lithium-ion electric logistics vehicles, buses, construction machinery, and other new energy vehicles.
It is designed and developed with modular, standardized, and universal design ideas. The charger supports three-phase AC input and the DC output voltage can be adjustable.
Main Features :
1. Compliance with SAE J1772 and EN61851.
2. A fully sealed process can work reliably under the conditions of -40°C-+85°C
3. Firmware up-gradable over CAN bus.
4. Protection level IP67 Can work safely under short-term water immersion conditions
5. Heat dissipation method: air cooling/liquid cooling
6. DC High Voltage Interlock Loop (HVIL) protection
7. Constant power and constant current charging capable.
The parameters of 20KW OBC
Model
Input voltage range
Output power
The output voltage
Output current
360V
152~456VAC
20KW
360VDC
200-500VDC/0-54A
540V
152~456VAC
20KW
540VDC
350-720VDC/0-36A
700V
152~456VAC
20KW
700VDC
400-850VDC/0-24A
input
Rated AC input voltage
three-phase AC input 380VAC 20kW
Effectiveness
94%
Frequency
45-65Hz
Power Factor
0.99
Main output
Output Power
20kW@380VAC
Output Voltage / Current
200V ~500V / 0~54A
350V ~720V / 0~36A
400V ~800V / 0~24A
Constant pressure accuracy
±1%
Constant current accuracy
±2%
Ripple voltage coefficient
5%
Communication function
CANcommunication
yes
Baud rate
125Kbps,250Kbps,500Kbps(According to customer needs)
Terminating resistor
no
The parameters of 6.6KW OBC with 1500W DCDC converter
Model
Voltage
Charger
Hardware
DC-DC
Hardware
DC-DC power
cooling method
CD-LW01
144V
HK-LW-202-46
TDC-JH-144- 12
1K5W
Liquid Cooling
CD-LW02
312V
HK-LW-450-20
TDC-JH-320- 12
1K5W
Liquid Cooling
CD-LW03
540V
HK-LW-680-14
TDC-JH-540- 12
1K5W
Liquid Cooling
CD-LW04
108V
HK-LW-177-60
TDC-JH-108- 12
1K5W
Liquid Cooling
CD-LW05
216V
HK-LW-290-28
TDC-JH-216- 12
1K5W
Liquid Cooling
CD-LF01
144V
HK-LF-202-46
TDC-JH-144- 12
1K5W
Air Cooling
CD-LF02
312V
HK-LF-450-20
TDC-JH-320- 12
1K5W
Air Cooling
CD-LF03
540V
HK-LF-680-14
TDC-JH-540- 12
1K5W
Air Cooling
CD-LF04
108V
HK-LF-177-60
TDC-JH-108- 12
1K5W
Air Cooling
CD-LF05
216V
HK-LW-290-28
TDC-JH-216- 12
1K5W
Liquid Cooling
Voltage platform
108V
144V
216V
312V
540V
output
Output voltage range
45~177V
50~202V
70~290V
110~450V
170~680V
Output current
60A
46A
28A
20A
14A
output
Output power
6600W@220VAC 3300W@110VAC
Output mode
constant voltage / constant current
Constant voltage accuracy
± 1%
Constant current accuracy
±2%
Ripple voltage coefficient
5%
Input
Input voltage range
AC 90~265V
Frequency
45-65Hz
Input current
32A
Power factor
≥ 0.99 More than half a load
Efficiency
≥ 93% the full load
Standby power
≤ 5W
Low voltage output
Output mode
constant voltage
Output voltage
13.8V
Rated current
5A
Constant voltage accuracy
±2%
output power
≥ 62.5W
Ripple voltage coefficient
1%
╣PRODUCT ADVANTAGES
╣Product Details
╣Company Profile
