Deep Cycle 525.6V High Voltage Marine Boat Lithium Battery Pack 530V 230Ah 120kWh
Deep Cycle 525.6V High Voltage Marine Boat Lithium Battery Pack 530V 230Ah 120kWh
Deep Cycle 525.6V High Voltage Marine Boat Lithium Battery Pack 530V 230Ah 120kWh
Deep Cycle 525.6V High Voltage Marine Boat Lithium Battery Pack 530V 230Ah 120kWh
Deep Cycle 525.6V High Voltage Marine Boat Lithium Battery Pack 530V 230Ah 120kWh
Deep Cycle 525.6V High Voltage Marine Boat Lithium Battery Pack 530V 230Ah 120kWh
Deep Cycle 525.6V High Voltage Marine Boat Lithium Battery Pack 530V 230Ah 120kWh
Deep Cycle 525.6V High Voltage Marine Boat Lithium Battery Pack 530V 230Ah 120kWh
Deep Cycle 525.6V High Voltage Marine Boat Lithium Battery Pack 530V 230Ah 120kWh
Deep Cycle 525.6V High Voltage Marine Boat Lithium Battery Pack 530V 230Ah 120kWh
Deep Cycle 525.6V High Voltage Marine Boat Lithium Battery Pack 530V 230Ah 120kWh
Deep Cycle 525.6V High Voltage Marine Boat Lithium Battery Pack 530V 230Ah 120kWh
Specifications
Brand Name :
CTS Battery
Model Number :
CTS-96300
Certification :
CE, MSDS, IEC
Place of Origin :
China
MOQ :
1pcs
Price :
$6000/pcs~$8000/pcs
Payment Terms :
T/T,Alipay, Paypal, L/C
Supply Ability :
5000pcs/month
Delivery Time :
50 days
Packaging Details :
wooden case
Cycle Life :
over 3000 times
Power :
30-600kwh
Oem :
heating and cooling system
Life Cycle :
3000 cycles
Warranty :
2 years
Protection :
Smart BMS+relay
Normal Capacity :
300Ah 400Ah
Usage :
Electric Boat/Motorboat/Marine/Yacht
Discharge Voltage :
270V
Protection Level :
IP67 metal plate by default
Applications :
robot,RV ,golf cart/marine
Energy :
32.8KWH
Maximum Discharge Current :
100 A
Voltage :
96V
Color :
White
Description
Deep cycle 525.6V High Voltage Marine Boat Lithium Battery Pack
530V 230Ah 120kWh
48V Marine battery 72V Marine battery 96V Marine battery 144V Marine battery
300V Marine battery 400V Marine battery 500V Marine battery 600V Marine battery
OEM/ODM
100% After-Sales Gurantee 100% Free Technical Support Fast Delivery
◆ Longer cycle life, more Powerful
◆ Built-in smart BMS monitor battery state
◆ Extremely safe, no explosion, no fire under collision
◆ Cooling and heating system optional
◆ Customized battery solutions base on yours requirements
◆ Excellent large current discharge performance
◆ Low self-discharge and good discharge performance at low temperatures

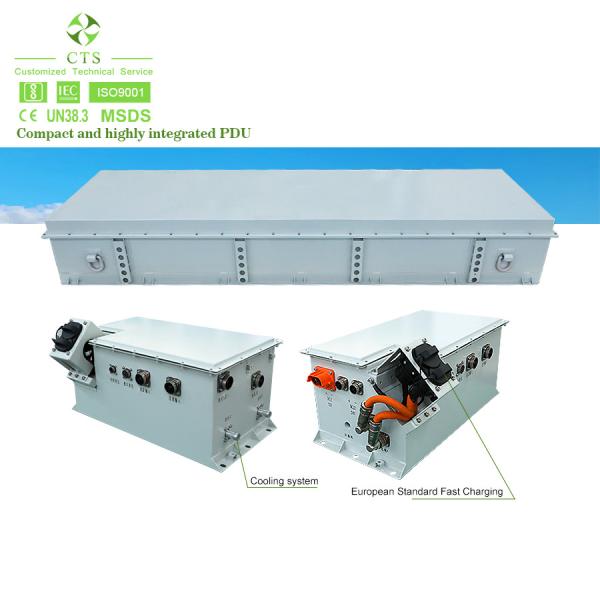

Compact and highly integrated PDU
including 12V, 24V, and 540V outputs, supporting up to 120kw CCS2 fast charging and 22kw OBC slow charging. The stainless steel 316 IP67 protection battery housing meet the ECER100 safety testing standard.
The Parameters of 530V 230AH NMC battery pack
MODEL NUMBER
R-NT-345210-2
Cell Type - Chemistry
Prismatic- NMC
Rated Capacity
230Ah
Rated Voltage
525.6V
Energy
120KWh
Resistance
30mΩ
Self Discharge
<3% per month
PDU
BMS, 400A relays, fuses,
COM socket
Dimensions (L x W x H)
L1800*W500*H380mm
(Can make it smaller if you want)
Weight
600Kg
Enclosure Protection
IP67 stainless steel case
Discharge Cut-off Voltage
432V
Max Continuous Discharging Current
200A
Peak Discharge Current
400A for 60 seconds
Recommended Discharge Current
300A
Charging Limited Voltage
604V
Max Charging Current
200A
Recommended Charge Current
100A
Charge Temperature Range
0~50℃
Discharge Temperature Range
-20~60℃
Recommended Operating Temperature
15~35℃
Available on request
Size, C rate,
Communication protocol
CTS lithium battery has a wider range of applications and can meet 90% of yacht, tour boat, and speedboat products in the market, According to the size requirements of the ship, we can design and customize the matched lithium battery system. CTS provides one-stop battery service. we also can provide OBC , charge piles etc
╣OUR FACTORY
Hunan CTS established in 2011, which is a manufacturer specializing in the R & D, production, sales and service of lithium battery cells and lithium battery packs, focusing on one-stop customized lithium battery products, such as electric vehicle batteries, electric truck batteries, electric boat batteries, energy storage battery system, mobile charging station etc...
With Twenty-people R& D team who has rich experience, CTS focuses on power battery customization for middle and high end markets by selecting first grade lithium cells with high energy density. We always followed Strict quality control ensures the higher quality of products. With the concept of "customers the first, quality the life", we strictly follow I S O 9 0 0 1 and I A T F 1 6 9 4 9 management system through the production of every detail, each battery must be strictly tested before its delivery. our battery products selling well in all cities and provinces around China, also exported to multiple countries around the world,such as ,America, Australia, Canada,Italy, U K, Germany, South Korea, Thailand, etc. our battery products approved MSDS, UN38.3, CE, IEC 62619 certifications..
Adhering to the business principle of mutual benefits, we have had a reliable reputation among our customers because of our professional services, quality products and competitive prices. If you have any battery inquiry, please feel free to contact us. We are glad to work together with you and finally bring you the satisfied products..
