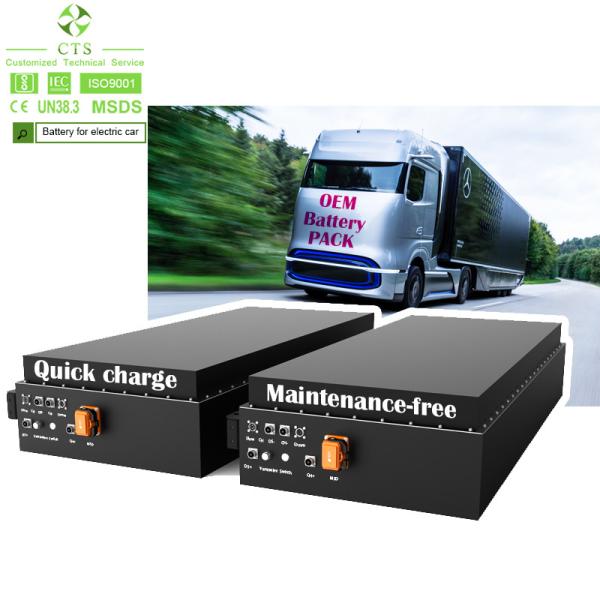

OEM Lithium Ion Battery Module 614V 200Ah Lifepo4 Battery Pack For Electric Bus
OEM Lithium Ion Battery Module 614V 200Ah Lifepo4 Battery Pack For Electric Bus
OEM Lithium Ion Battery Module 614V 200Ah Lifepo4 Battery Pack For Electric Bus
OEM Lithium Ion Battery Module 614V 200Ah Lifepo4 Battery Pack For Electric Bus
OEM Lithium Ion Battery Module 614V 200Ah Lifepo4 Battery Pack For Electric Bus
OEM Lithium Ion Battery Module 614V 200Ah Lifepo4 Battery Pack For Electric Bus
OEM Lithium Ion Battery Module 614V 200Ah Lifepo4 Battery Pack For Electric Bus
OEM Lithium Ion Battery Module 614V 200Ah Lifepo4 Battery Pack For Electric Bus
OEM Lithium Ion Battery Module 614V 200Ah Lifepo4 Battery Pack For Electric Bus
OEM Lithium Ion Battery Module 614V 200Ah Lifepo4 Battery Pack For Electric Bus
OEM Lithium Ion Battery Module 614V 200Ah Lifepo4 Battery Pack For Electric Bus
OEM Lithium Ion Battery Module 614V 200Ah Lifepo4 Battery Pack For Electric Bus
Specifications
Brand Name :
CTS Electric Truck Battery
Model Number :
CTS-614206
Certification :
ISO,MSDS,UN38.3
Place of Origin :
China
MOQ :
2
Price :
8500USD
Payment Terms :
L/C, T/T,Alibaba pay
Supply Ability :
5000pcs/month
Delivery Time :
35 days
Packaging Details :
wooden case
Product Name :
Electric Truck Battery
Capacity :
206ah 230ah
Voltage :
500v 600v 614v
Size :
L1060 x W640 x H240mm
Application :
Electric Truck,electric bus ,electric boat
Warranty :
2~5 years
Cycle Life :
3000 times
Battery Type :
lifepo4 EV battery
Protection :
BMS
Description

OEM Lithium Ion Battery Module 614V 200Ah Lifepo4 Battery Pack For Electric Bus

CTS Battery Solutions for Electric Truck-Bus-Boat-Locomotive-Railway-Subway
Using 153.6V 230Ah Lifepo4 Battery Modules
(Model No.: W-XY-156206-1) Click here to contact us!
No.
Module Qty
Total Energy
Rated Volt
Rated Capacity
Working Volt
Discharge Power @ 25℃
Suggested Motor
1
3S 1P
105.9kWh
460.8V
230Ah
360V-525V
50kW rated 100kW max
200kW peak for 30 sec
≤100kW rated
2
3S 2P
211.9kWh
460.8V
460Ah
360V-525V
100kW rated 180kW max
360kW peak for 30 sec
≤180kW rated
3
3S 3P
317.7kWh
460.8V
690Ah
360V-525V
150kW rated 220kW max
440kW peak for 30 sec
≤220kW rated
4
4S 1P
141.3kWh
614.4V
230Ah
480V-700V
70kW rated 140kW max
280kW peak for 30 sec
≤140kW rated
5
4S 2P
282.4kWh
614.4V
460Ah
480V-700V
140kW rated 240kW max
480kW peak for 30 sec
≤240kW rated
6
4S 3P
423.9kWh
614.4V
690Ah
480V-700V
210kW rated 290kW max
590kW peak for 30 sec
≤290kW rated
7
5S 1P
176.6kWh
768V
230Ah
600V-876V
85kW rated 175kW max
350kW peak for 30 sec
≤175kW rated
8
5S 2P
353.2kWh
768V
460Ah
600V-876V
175kW rated 300kW max
600kW peak for 30 sec
≤300kW rated
9
5S 3P
529.8kWh
768V
690Ah
600V-876V
260kW rated 370kW max
740kW peak for 30 sec
≤370kW rated
Using 115.2V280Ah Lifepo4 Battery Modules
No.
Module Qty
Total Energy
Rated Volt
Rated Capacity
Working Volt
Discharge Power @ 25℃
Suggested Motor
10
3S 1P
96.8kWh
345.6V
280Ah
270V-394.2V
50kW rated 90kW max
180kW peak for 30 sec
≤90kW rated
11
3S 2P
193.5kWh
345.6V
560Ah
270V-394.2V
95kW rated 160kW max
320kW peak for 30 sec
≤160kW rated
12
3S 3P
290.3kWh
345.6V
840Ah
270V-394.2V
140kW rated 200kW max
400kW peak for 30 sec
≤200kW rated
13
4S 1P
129.0kWh
460.8V
280Ah
360V-525V
60kW rated 110kW max
250kW peak for 30 sec
≤110kW rated
14
4S 2P
258.0kWh
460.8V
560Ah
360V-525V
125kW rated 210kW max
430kW peak for 30 sec
≤210kW rated
15
4S 3P
387.1kWh
460.8V
840Ah
360V-525V
190kW rated 270kW max
540kW peak for 30 sec
≤270kW rated
16
5S 1P
161.3kWh
576V
280Ah
450V-657V
80kW rated 145kW max
320kW peak for 30 sec
≤145kW rated
17
5S 2P
322.6kWh
576V
560Ah
450V-657V
160kW rated 270kW max
540kW peak for 30 sec
≤270kW rated
18
5S 3P
483.8kWh
576V
840Ah
450V-657V
240kW rated 335kW max
670kW peak for 30 sec
≤335kW rated
19
6S 1P
193.5kWh
691.2V
280Ah
540V-788.4V
95kW rated 170kW max
385kW peak for 30 sec
≤170kW rated
20
6S 2P
387.1kWh
691.2V
560Ah
540V-788.4V
190kW rated 325kW max
655kW peak for 30 sec
≤325kW rated
21
6S 3P
580.6kWh
691.2V
840Ah
540V-788.4V
290kW rated 400kW max
810kW peak for 30 sec
≤400kW rated
Using 115.2V304Ah Lifepo4 Battery Modules
No.
Module Qty
Total Energy
Rated Volt
Rated Capacity
Working Volt
Discharge Power @ 25℃
Suggested Motor
22
3S 1P
105.1kWh
345.6V
304Ah
270V-394.2V
50kW rated 80kW max
165kW peak for 30 sec
≤80kW rated
23
3S 2P
210.1kWh
345.6V
608Ah
270V-394.2V
105kW rated 155kW max
315kW peak for 30 sec
≤155kW rated
24
3S 3P
315.2kWh
345.6V
912Ah
270V-394.2V
155kW rated 220kW max
440kW peak for 30 sec
≤220kW rated
25
4S 1P
140.1kWh
460.8V
304Ah
360V-525V
70kW rated 110kW max
220kW peak for 10 sec
≤110kW rated
26
4S 2P
280.2kWh
460.8V
608Ah
360V-525V
140kW rated 210kW max
420kW peak for 30 sec
≤210kW rated
27
4S 3P
420.2kWh
460.8V
912Ah
360V-525V
210kW rated 290kW max
580kW peak for 30 sec
≤290kW rated
28
5S 1P
175.1kWh
576V
304Ah
450V-657V
85kW rated 140kW max
280kW peak for 30 sec
≤140kW rated
29
5S 2P
350.2kWh
576V
608Ah
450V-657V
175kW rated 260kW max
520kW peak for 30 sec
≤260kW rated
30
5S 3P
525.3kWh
576V
912Ah
450V-657V
260kW rated 365kW max
730kW peak for 30 sec
≤365kW rated
31
6S 1P
210.1kWh
691.2V
304Ah
540V-788.4V
105kW rated 165kW max
330kW peak for 30 sec
≤165kW rated
32
6S 2P
420.2kWh
691.2V
608Ah
540V-788.4V
210kW rated 315kW max
630kW peak for 30 sec
≤315kW rated
33
6S 3P
630.4kWh
691.2V
912Ah
540V-788.4V
315kW rated 440kW max
880kW peak for 30 sec
≤440kW rated
Using 307.2V105Ah Lifepo4 Battery Modules
No.
Module Qty
Total Energy
Rated Volt
Rated Capacity
Working Volt
Discharge Power @ 25℃
Suggested Motor
34
1S 1P
32.36kWh
307.2V
105Ah
240-345.6V
16kW rated 32kW max
64kW peak for 30 sec
≤32kW rated
35
2S 1P
64.5kWh
614.4V
105Ah
480-700V
32kW rated 64kW max
128kW peak for 30 sec
≤64kW rated
36
2S 3P
193.5kWh
614.4V
315Ah
480-700V
75kW rated 135kW max
270kW peak for 30 sec
≤135kW rated

Standard EV Battery Module:

uD83DuDC77PACK System Core Technology uD83DuDC77Compact + Lightweight Design uD83DuDC77Patented Smart Thermal Liquid Technology uD83DuDC77Modular Design + Single Module Drivable uD83DuDC77The all parts in the module is standard parts which are molded parts uD83DuDC77Cell Core Technology uD83DuDC77Power type Li-ion battery has long cycle life and fast charging-discharging. It can keep the mobility of electric vehicles.

Why choose this Standard EV Battery Module?

✅SOC Calculation: Real time dynamic calibration Vehicle operation condition wasconsidered Multi-method combination High accuracy measurement of thecell Voltage /temperature/pack current Amount of data from experiment
✅Faults Diagnosis: Insulation & water leakage Cell voltage out of range High/low temperature Communication faults Contactor weld Power connection Temperature sensor faults
Electric vehicle lithium-ion battery - CTS battery
Electrical diagram of lithium battery system in standard box Two way high voltage input, doublegun charging Two way hight voltage output-water cooling compressor output; motor driving output;Single way low voltage output ,communicate with the whole vehicle!

Hunan CTS Technology Co.,LTD

10+ years to sharpen a sword. We do only one thing, professional customization. 20 + R&D team 150 front-line production employees 10 production lines 20,000 square meter plant Capacity up to 500mwh Since 2011, CTS has focused on one-stop customization of lithium battery products such as electric vehicle batteries, large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries and so on. We have more 30 types of cells, and could make OEM battery pack from 12v-800v, 10-200ah, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc. We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications. We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join together to promote the development of renewable energy and friendly environment.
