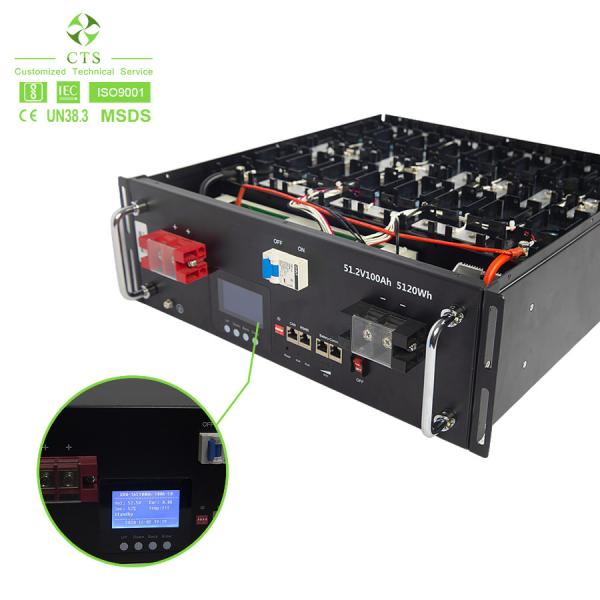

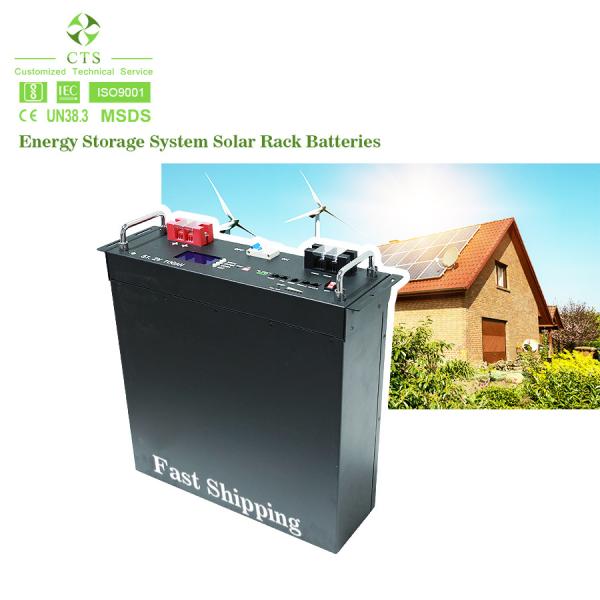

CTS 20kWh 48V Lithium-Ion Energy Storage Cabinet Optimized for Solar Efficiency
CTS 20kWh 48V Lithium-Ion Energy Storage Cabinet Optimized for Solar Efficiency
CTS 20kWh 48V Lithium-Ion Energy Storage Cabinet Optimized for Solar Efficiency
CTS 20kWh 48V Lithium-Ion Energy Storage Cabinet Optimized for Solar Efficiency
CTS 20kWh 48V Lithium-Ion Energy Storage Cabinet Optimized for Solar Efficiency
CTS 20kWh 48V Lithium-Ion Energy Storage Cabinet Optimized for Solar Efficiency
CTS 20kWh 48V Lithium-Ion Energy Storage Cabinet Optimized for Solar Efficiency
CTS 20kWh 48V Lithium-Ion Energy Storage Cabinet Optimized for Solar Efficiency
CTS 20kWh 48V Lithium-Ion Energy Storage Cabinet Optimized for Solar Efficiency
CTS 20kWh 48V Lithium-Ion Energy Storage Cabinet Optimized for Solar Efficiency
CTS 20kWh 48V Lithium-Ion Energy Storage Cabinet Optimized for Solar Efficiency
CTS 20kWh 48V Lithium-Ion Energy Storage Cabinet Optimized for Solar Efficiency
CTS 20kWh 48V Lithium-Ion Energy Storage Cabinet Optimized for Solar Efficiency
CTS 20kWh 48V Lithium-Ion Energy Storage Cabinet Optimized for Solar Efficiency
Specifications
Brand Name :
CTS
Model Number :
CTS51200
Certification :
MSDS, CE
Place of Origin :
Hunan,China
MOQ :
10unit
Price :
USD2290/units
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 untis per month
Delivery Time :
20-25 working days
Packaging Details :
Wooden case and Carton case
Voltage :
51.2V 48V
Capacity :
200Ah
Dimensions :
482*540*229mm
Weight :
50kgs
Energy :
10.2kWh
Self Discharge :
<1.5% per month
Cell Resistance :
≤1.6m Ω
Life cycle :
>5000
Parallel :
Max 15 batteries in parallel
ODM :
Expandable
Usage :
Solar, Telecom, solar home system, for wind power
Description

CTS 20kWh 48V Lithium-Ion Energy Storage Cabinet Optimized for Solar Efficiency

Features:

 Most safe LFP battery technology
 Long lifetimes - >6000 cycles
 Capacity expandable up to 160kwh
 Compact size for space saving
 Highly compatible BMS, seamless connection with energy storage inverter
 Multiple communication interfaces: RS485, RS232, CAN
 Short circuit/ Over current/Over voltage/Over temperature protection
 Multiple parallel machines, automatic address acquisition without manual operation

Specifications:

MODEL

CTS51200

Cell Type - Chemistry

Prismatic- LiFePO4

Rated Capacity

200Ah

Rated Voltage

51.2V

Energy

10.2kWh

Cell Resistance

≤1.6m Ω

Self Discharge

<1.5% per month

Maximum Modules in Parallel

16

Dimensions (L x W x H)

482*540*229mm

Weight

100Kg

Discharge Cut-off Voltage

40V

Max Continuous Discharging Current

100A

Peak Discharge Current

200A for 3 seconds

Recommended Discharge Current

50A

Charging Limited Voltage

57.6V

Max Charging Current

100A

Recommended Charge Current

50A

Charge Temperature Range

0~45℃

Discharge Temperature Range

-20~60℃

Recommended Operating Temperature

15~35℃

Storage Temperature & Humidity Range

(Less than 1 month)

-20~35℃, 45~75%RH

Storage Temperature & Humidity Range

(Less than 3 months)

-10~35℃, 45~75%RH

Recommended Storage Temperature & Humidity Range

15~35℃, 45~75%RH

Life cycles

>5000

CTS 20kWh 48V Lithium-Ion Energy Storage Cabinet Optimized for Solar Efficiency

FAQ:

1): Are you manufacturer or simply trading company?

Re: We are manufacturer, and we sincerely welcome you to visit our factory!

2): Can I get a lower price if I order large quantities?

Re: Yes, cheaper prices with more bigger size orders.

3): Do you offer charger for battery?

Re: Yes, we do. If you also need charger, please mention it when sending inquiry, kindly note that our charger cost is not included in the battery cost.

4): How about your company intelligence?

Re: ISO9001 certification, China Hi-tech company, 10 million battery assurance, 8 patents, Almost all products are MSDS, UN38.3, IEC62133, CB,etc certificated.

5): When you ship my order?

Re: Normally 5-10days after receiving your payment, but it can be negotiated based on order qty and production schedule.

6): How about the quality guarantee period?

Re: Two year!
