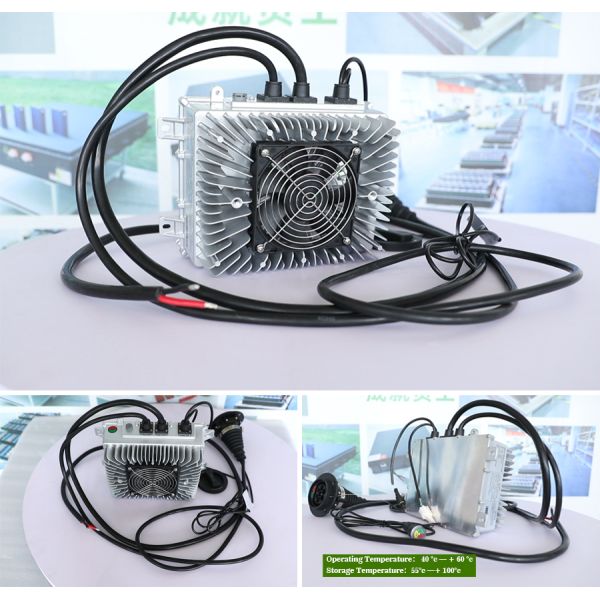

Waterproof OBC Battery Charger 3.3kw 6600W Lithium-Ion Battery On Board OBC Charger
Waterproof OBC Battery Charger 3.3kw 6600W Lithium-Ion Battery On Board OBC Charger
Waterproof OBC Battery Charger 3.3kw 6600W Lithium-Ion Battery On Board OBC Charger
Waterproof OBC Battery Charger 3.3kw 6600W Lithium-Ion Battery On Board OBC Charger
Waterproof OBC Battery Charger 3.3kw 6600W Lithium-Ion Battery On Board OBC Charger
Waterproof OBC Battery Charger 3.3kw 6600W Lithium-Ion Battery On Board OBC Charger
Specifications
Brand Name :
CTS 6.6kW On Board Charger
Model Number :
Standard OBC
Certification :
MSDS,UN38.3
Place of Origin :
China
MOQ :
2
Price :
USD389-600
Payment Terms :
T/T
Supply Ability :
5000 pcs/month
Delivery Time :
7 working days
Packaging Details :
Carton
Heat Dissipation Mode :
Forced Air Cooling/Liquid Cooling
Warranty :
1 Years
Input voltage :
Single phase 90VAC - 265VAC
Application :
Veichles,forlift,golf cart etc.,EV charging
Product name :
On-board Battery Charger,EV Charger,3.3KW EV electric vehicle on board charger OBC
Color :
grey
Output voltage :
72VDC/144VDC/320VDC/384VDC
Description
Obc Battery Charger 3.3kw 6600W on Board Waterproof Obc Lithium-Ion Battery Charger

Waterproof OBC Battery Charger 3.3kw 6600W Lithium-Ion Battery On Board OBC ChargerWaterproof OBC Battery Charger 3.3kw 6600W Lithium-Ion Battery On Board OBC Charger
Main Features :

1.Support UDS diagnosis CAN wake-up function

2.Fully sealed process can work reliably under the conditions of -40°C-+85°C

3.Built-in temperature sensor to shut down output under hazardous operating conditions (internal 90°C)

4. Protection level IP67 Can work safely under short-term water immersion conditions

5. Heat dissipation method: air cooling / water cooling

6. Optional 12V DC/DC Converter for low-voltage equipment for electric vehicles.

Waterproof OBC Battery Charger 3.3kw 6600W Lithium-Ion Battery On Board OBC Charger

The parameters of 3.3KW OBC
Model
Input voltage range
Input Current
The output voltage
Output current
HK-J-H99-40
AC 90~265V
16A
50V-99V
40A
HK-J-H132-32
AC 90~265V
16A
35V-132V
32A
HK-J-H198-23
AC 90~265V
16A
50V-198V
23A
HK-J-H440-10
AC 90~265V
16A
110V-440V
10A
input
frequency
45-65Hz
effectiveness
94%
Power Factor
0.99
Standby power consumption
≤5W
Main output
output method
Constant voltage / constant current
Output Power
3300W@220VAC 1600W@110VAC
Constant pressure accuracy
±1%
Constant current accuracy
±2%
Ripple voltage coefficient
5%
Low voltage output
output method
Constant pressure
The output voltage
13.8V
Rated current
5A
Constant pressure accuracy
±2%
Maximum current
5.5A±0.5A
Output Power
≥62.5W
Ripple voltage coefficient
1%
Communication function
CANcommunication
yes
Baud rate
125Kbps,250Kbps,500Kbps(According to customer needs)
Terminating resistor
no
The parameters of 6.6KW OBC with 1500W DCDC converter
Model
Voltage
Charger
Hardware
DC-DC
Hardware
DC-DC power
cooling method
CD-LW01
144V
HK-LW-202-46
TDC-JH-144- 12
1K5W
Liquid Cooling
CD-LW02
312V
HK-LW-450-20
TDC-JH-320- 12
1K5W
Liquid Cooling
CD-LW03
540V
HK-LW-680-14
TDC-JH-540- 12
1K5W
Liquid Cooling
CD-LW04
108V
HK-LW-177-60
TDC-JH-108- 12
1K5W
Liquid Cooling
CD-LW05
216V
HK-LW-290-28
TDC-JH-216- 12
1K5W
Liquid Cooling
CD-LF01
144V
HK-LF-202-46
TDC-JH-144- 12
1K5W
Air Cooling
CD-LF02
312V
HK-LF-450-20
TDC-JH-320- 12
1K5W
Air Cooling
CD-LF03
540V
HK-LF-680-14
TDC-JH-540- 12
1K5W
Air Cooling
CD-LF04
108V
HK-LF-177-60
TDC-JH-108- 12
1K5W
Air Cooling
CD-LF05
216V
HK-LW-290-28
TDC-JH-216- 12
1K5W
Liquid Cooling
Voltage platform
108V
144V
216V
312V
540V
output
Output voltage range
45~
177V
50~
202V
70~
290V
110~4
50V
170~6 80V
Output current
60A
46A
28A
20A
14A
output
Output power
6600W@220VAC 3300W@110VAC
Output mode
constant voltage / constant current
Constant voltage accuracy
± 1%
Constant current accuracy
±2%
Ripple voltage coefficient
5%
Input
Input voltage range
AC 90~265V
Frequency
45-65Hz
Input current
32A
Power factor
≥ 0.99 More than half a load
Efficiency
≥ 93% the full load
Standby power
≤ 5W
Low voltage output
Output mode
constant voltage
Output voltage
13.8V
Rated current
5A
Constant voltage accuracy
±2%
output power
≥ 62.5W
Ripple voltage coefficient
1%

Waterproof OBC Battery Charger 3.3kw 6600W Lithium-Ion Battery On Board OBC Charger

Waterproof OBC Battery Charger 3.3kw 6600W Lithium-Ion Battery On Board OBC Charger
Efficiency: It has a high charging conversion efficiency,
which can minimize energy loss.

Safety: It has a high level of safety and there will be no
electrical accidents or other dangerous situations during the charging process.

Stability: It has good stability, ensuring that the
charging process remains stable and reliable.

Compatibility: It has a wide range of compatibility,
suitable for various types of electric vehicles and charging station equipment.

Reconfiguration: It has irreconcilability, adapting to
different types of charging needs.

System integration: It integrates with other electric vehicle systems, such as vehicle electronic control systems, battery management systems, etc., to ensure the stability and reliability of the entire electric vehicle system.

Waterproof OBC Battery Charger 3.3kw 6600W Lithium-Ion Battery On Board OBC Charger
This is a product designed specifically to supplement the power battery of electric vehicles,
in accordance with the national standard for charging equipment. The product has many advantages,
such as high efficiency, small size, high stability, and long lifespan. It also features a high protection level,
high reliability, and complete protection functions, making it an ideal power source for charging electric vehicles.
Waterproof OBC Battery Charger 3.3kw 6600W Lithium-Ion Battery On Board OBC ChargerWaterproof OBC Battery Charger 3.3kw 6600W Lithium-Ion Battery On Board OBC ChargerWaterproof OBC Battery Charger 3.3kw 6600W Lithium-Ion Battery On Board OBC ChargerWaterproof OBC Battery Charger 3.3kw 6600W Lithium-Ion Battery On Board OBC Charger
