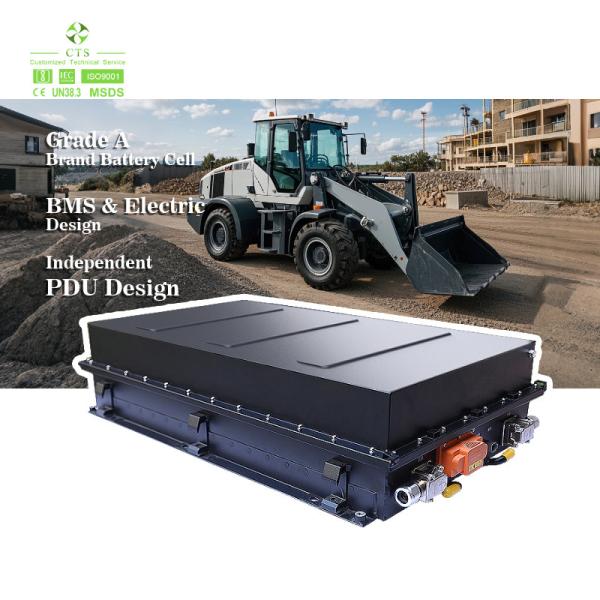

Standard Battery 540V 576V 560Ah 322KWH 300KWH Lifepo4 Battery for Battery-swapping Excavator
Standard Battery 540V 576V 560Ah 322KWH 300KWH Lifepo4 Battery for Battery-swapping Excavator
Standard Battery 540V 576V 560Ah 322KWH 300KWH Lifepo4 Battery for Battery-swapping Excavator
Standard Battery 540V 576V 560Ah 322KWH 300KWH Lifepo4 Battery for Battery-swapping Excavator
Standard Battery 540V 576V 560Ah 322KWH 300KWH Lifepo4 Battery for Battery-swapping Excavator
Standard Battery 540V 576V 560Ah 322KWH 300KWH Lifepo4 Battery for Battery-swapping Excavator
Standard Battery 540V 576V 560Ah 322KWH 300KWH Lifepo4 Battery for Battery-swapping Excavator
Standard Battery 540V 576V 560Ah 322KWH 300KWH Lifepo4 Battery for Battery-swapping Excavator
Standard Battery 540V 576V 560Ah 322KWH 300KWH Lifepo4 Battery for Battery-swapping Excavator
Standard Battery 540V 576V 560Ah 322KWH 300KWH Lifepo4 Battery for Battery-swapping Excavator
Specifications
Brand Name :
CTS Battery
Model Number :
CTS-LFP614230
Certification :
CE, UN38.3, MSDS
Place of Origin :
China
MOQ :
2 SETS
Price :
USD150-USD200/KWH
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
6000 SETS/YEAR
Delivery Time :
60-70 DAYS
Packaging Details :
Plywood case
Battery Product :
576V 560Ah 322kWh
Application :
Battery-swapping Excavator, Ground support equipment, Vehicle and machinery electrification
Array Mode :
4 battery modules+ a PDU box
PDU Box :
Including EVCC, relays, master BMS, precharge resistor and fuses and other conponents
Charge Power :
Max 150kW cont.
Charge Standard :
CCS1/CCS2 DC fast charging
Discharge Power :
140kW cont. 280kW peak for 30 sec
Description
CTS Standard Battery 540V 576V 560Ah 322KWH 300KWH Lifepo4 Battery for Battery-swapping Excavator
✅Multiple voltage and capacity choices: Support the max connection of 12 module(4S3P) in one system. Below are modules available, which can be connected freedomly, max 656V, 600KWH.
✅Longer life:Redesigned liquid cooling system for improved thermal consistency and longer life.
✅Safer EV Battery Module: Reliable lifepo4 cells, multi-tiered safety system.
What is an EV battery module?
EV module and pack systems are assembled by both OEMs as well as automotive makers. A module is composed of a few cells welded or otherwise physically attached to each other. Multiple battery cells are assembled into a module, wrapped in steel plates, and have their poles welded together to produce the correct voltage.
How big is a standard EV battery module?

dimensions: 1060 x 640 x 240mm (l x w x h).
NO. System Specification
1 Rated Voltage 576V
2 Rated Capacity 560Ah
3 Array Mode with Module C 2P 5S
4 Total Energy 322.5kWh
5 Continous Discharge Current 250A Max at 25℃
6 Peak Discharge Current 500A within 5s
7 Recommend Charge Current Max 250A
8 Communicate Peotocol CAN BUS
9 Dimension 10 modules in total+a PDU box
10 Estimated Weight about 2400kg (without installation brackets)
11 IP Proetction IP67
12 Cooling Method Liquid Cooling Pipe included
13 Heating Method Charge PI Heating
14 Dimension with brackets L2835*W1142*H955mm

Standard EV Battery Module facts:

uD83DuDC77PACK System Core Technology uD83DuDC77Compact + Lightweight Design uD83DuDC77Patented Smart Thermal Liquid Technology uD83DuDC77Modular Design + Single Module Drivable uD83DuDC77The all parts in the module is standard parts which are molded parts uD83DuDC77Cell Core Technology uD83DuDC77Power type Li-ion battery has long cycle life and fast charging-discharging. It can keep the mobility of electric vehicles.

Why choose this Standard EV Battery Module?

✅SOC Calculation: Real time dynamic calibration Vehicle operation condition wasconsidered Multi-method combination High accuracy measurement of thecell Voltage /temperature/pack current Amount of data from experiment
✅Faults Diagnosis: Insulation & water leakage Cell voltage out of range High/low temperature Communication faults Contactor weld Power connection Temperature sensor faults
Electric vehicle lithium-ion battery - CTS battery
Electrical diagram of lithium battery system in standard box Two way high voltage input, doublegun charging Two way hight voltage output-water cooling compressor output; motor driving output;Single way low voltage output ,communicate with the whole vehicle!
