CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters
CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters
CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters
CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters
CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters
CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters
CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters
CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters
CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters
CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters
CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters
CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters
Specifications
Brand Name :
CTS electric scooter lithium battery
Model Number :
E-scooter lifepo4 lithium battery
Certification :
MSDS,UN38.3
Place of Origin :
China
MOQ :
2 unit
Price :
Negotiable
Payment Terms :
T/T，Paypal，, L/C
Supply Ability :
5000pcs/per month
Delivery Time :
30-45days
Packaging Details :
Wooden case
Product name :
Electric scooter lifepo4 lithium battery
Capacity :
40ah,50ah,60ah
Voltage :
48v,60v,72v
Warranty :
2 years

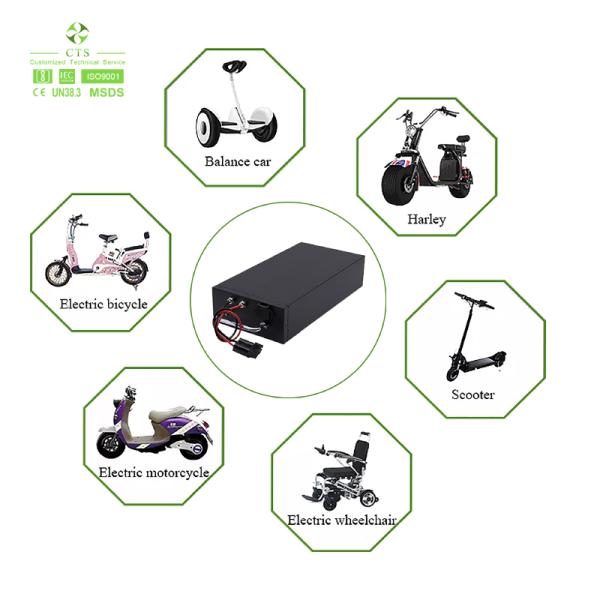

Application :
electric scooter,electric motorcycle,electric bike
Protection :
Buit-in BMS
Battery type :
lifepo4 battery，li-ion battery，lithium battery,NMC
Cycle life :
3000 times
Description
CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters

CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters




>>>>>1. Main Parameters

ITEMS PARAMETERS
Electrical Characteristics Cells LFP83156241/LFP90160227-3.2V30AH
Nominal Voltage 72V
Nominal Capacity 60Ah
Energy 4416Wh
Internal Resistance(AC) ≤20mΩ
Cycle Life >3500 cycles
Months Self Discharge <3%
Efficiency of Charge 100% @0.5C
Efficiency of Discharg 96~99% @1C
Standard Charge Working Voltage(V) 60V-84V
Max. Charge Current(A) 30A
Standard Discharge Standard Current 60A
Max Discharge Current 3C, 180A
Discharge Cut-off Voltage 57.5V
Environmental Charge Temperature 0ºC to 55ºC (32F to 131F) @60±25% Relative Humidity
Discharge Temperature -20ºC to 60ºC (-4F to 140F) @60±25% Relative Humidity
Storage Temperature -20ºC to 45ºC (-4F to 113F) @60±25% Relative Humidity
Mechanical Approx.Weight 35kg
Dimension (mm) 360*172*290mm(customizable)
Other Design Display SOC,BMS, Temperature



>>>>>2. Battery Function Design


CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters
CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters



>>>>>3. More 60v 72v OEM/ODM Batteries


<1>. 60V 35Ah battery Model No:PF6035
CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters

<2>. 60V 50Ah/80Ah/100Ah Battery Model No:PF6050/80/100
CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters




<3>. 72V 20Ah/30Ah/40Ah Battery Model No:PF7220/30/40CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters

Items 72v 20Ah LFP Battery 72v 30Ah LFP Battery 72v 40Ah LFP Battery
Nominal Voltage 73.6v 73.6v 73.6v
Nominal Capacity 20Ah 30Ah 40Ah
Working Voltage(V) 60V-84V 60V-84V 60V-84V
Energy 1472Wh 2208Wh 2944Wh
Net Weight 12kg 19kg 20Kg
Dimension (mm) 200*172*290mm 220*172*290mm 400*172*290mm


<4>. 72V 150Ah/300Ah Battery Model No:PF72150/300
Nominal voltage 72V
Nominal capacity 150Ah/300Ah @0.5C Discharge
Dimension 150Ah: 800*360*250 mm
300Ah: 550*620*750mm
Weight 150Ah: 100kg
300Ah: 265kg
Working voltage 60-84V
Discharge rate Continuous:≤1c Max:3c/5s
Lifespan ≥1500 cycles
Charge rate ≤1c
Suggested discharge & charge rate 0.5c & 0.5c
Operating temperature Charging: 0°C ~ 45°C
Discharging: -20°C ~60°C




Have you found the battery you prefer?



>>>>>4. How to assemble batteries
CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters


>>>>>5. Factory View

CTS has a modern production plant and strictly implements the ISO quality management system to ensure that each battery is manufactured to high standards.
★ Patented battery technology improves energy density and safety
★ Fully automatic production line to ensure product consistency and high quality
★ Strict quality inspection, each battery is 100% tested before leaving the factory



CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters


>>>>>6. Customer Feedback


CTS OEM Lithium Solution -E-bike Battery 60Ah 72V 50Ah 48V Motorcycle Electric Wheelchairs E-Scooters
>>>>> Order Information

Samples are available, welcome to order!
Trade terms: FOB Shenzhen or Guangzhou; EXW, CIF, DDU and DDP are all available.
Delivery time: 20-30 working days for sample orders, 30-35 working days for bulk orders.
You are welcome to visit our production base and check out our production line!
If you have any requirements for this lifepo4 battery, please feel free to contact me!
