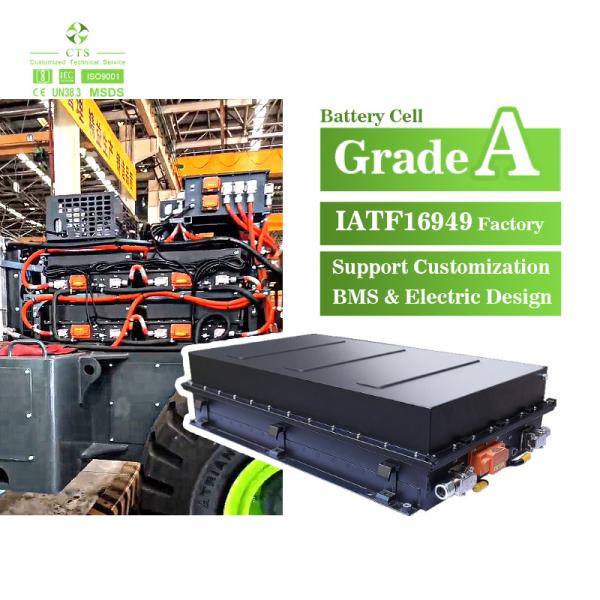

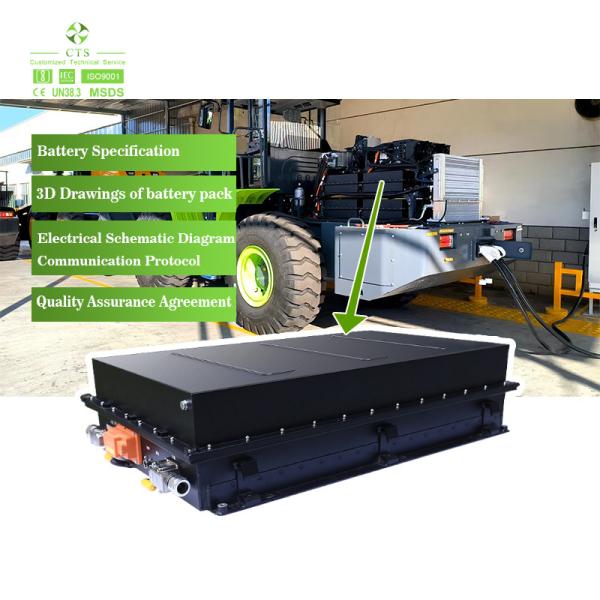

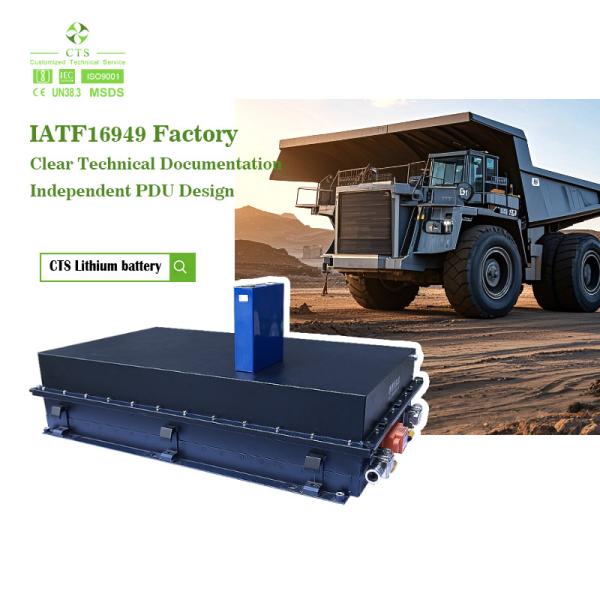

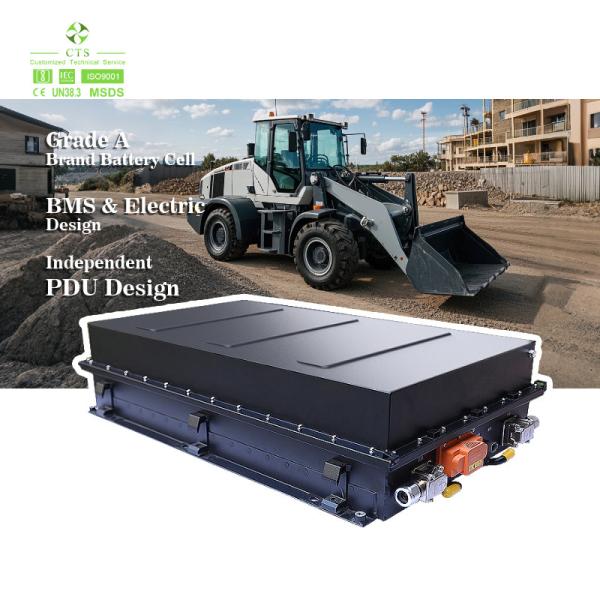

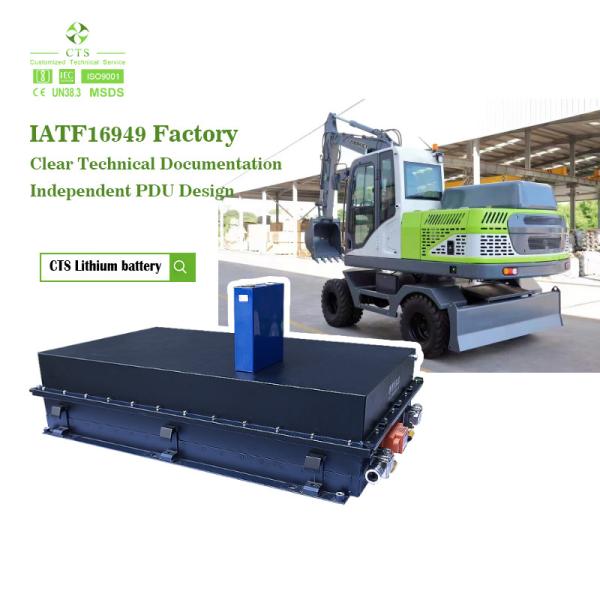

CTS LFP Battery Packs 460.8V 230Ah 105.9KWH EV Battery System for Construction Machinery/ Sand Making Machinery/Pile Driving Equipment
CTS LFP Battery Packs 460.8V 230Ah 105.9KWH EV Battery System for Construction Machinery/ Sand Making Machinery/Pile Driving Equipment
CTS LFP Battery Packs 460.8V 230Ah 105.9KWH EV Battery System for Construction Machinery/ Sand Making Machinery/Pile Driving Equipment
CTS LFP Battery Packs 460.8V 230Ah 105.9KWH EV Battery System for Construction Machinery/ Sand Making Machinery/Pile Driving Equipment
CTS LFP Battery Packs 460.8V 230Ah 105.9KWH EV Battery System for Construction Machinery/ Sand Making Machinery/Pile Driving Equipment
CTS LFP Battery Packs 460.8V 230Ah 105.9KWH EV Battery System for Construction Machinery/ Sand Making Machinery/Pile Driving Equipment
CTS LFP Battery Packs 460.8V 230Ah 105.9KWH EV Battery System for Construction Machinery/ Sand Making Machinery/Pile Driving Equipment
CTS LFP Battery Packs 460.8V 230Ah 105.9KWH EV Battery System for Construction Machinery/ Sand Making Machinery/Pile Driving Equipment
CTS LFP Battery Packs 460.8V 230Ah 105.9KWH EV Battery System for Construction Machinery/ Sand Making Machinery/Pile Driving Equipment
CTS LFP Battery Packs 460.8V 230Ah 105.9KWH EV Battery System for Construction Machinery/ Sand Making Machinery/Pile Driving Equipment
CTS LFP Battery Packs 460.8V 230Ah 105.9KWH EV Battery System for Construction Machinery/ Sand Making Machinery/Pile Driving Equipment
CTS LFP Battery Packs 460.8V 230Ah 105.9KWH EV Battery System for Construction Machinery/ Sand Making Machinery/Pile Driving Equipment
Specifications
Brand Name :
CTS Battery
Model Number :
CTS-LFP345280
Certification :
CE, UN38.3, MSDS
Place of Origin :
China
MOQ :
2 SETS
Price :
USD150-USD200/KWH
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
6000 SETS/YEAR
Delivery Time :
60-70 DAYS
Packaging Details :
Plywood case
Battery Product :
460.8V 230Ah 107.9kWh
Application :
Construction Machinery/ Sand Making Machinery/Pile Driving Equipment
Array Mode :
3 battery modules+ a PDU box
PDU Box :
Including EVCC, relays, master BMS, precharge resistor and fuses and other conponents
Charge Power :
Max 50kW cont.
Charge Standard :
CCS1/CCS2 DC fast charging
Discharge Power :
100kW cont. 200kW peak for 30 sec
Other Options :
20KW OBC, 6.6KW OBC, 12V 24V DCDC Converter
Description
CTS LFP Battery Packs 460.8V 230Ah 105.9KWH EV Battery System for Construction Machinery/ Sand Making Machinery/Pile Driving Equipment
✅Multiple voltage and capacity choices: Support the max connection of 12 module(4S3P) in one system. Below are modules available, which can be connected freedomly, max 656V, 600KWH.
✅Longer life:Redesigned liquid cooling system for improved thermal consistency and longer life.
✅Safer EV Battery Module: Reliable lifepo4 cells, multi-tiered safety system.
Cell Type - Chemistry Prismatic- LFP
Rated Capacity 230Ah
Rated Voltage 460.8V
Energy 107.9kWh
Series-parallel Connection 1P144S
IP Protection IP67
Cycle life ≥3000cycles(90%DOD, 1C)
MECHANICAL SPECIFICATIONS
Weight ~750±3kg
Dimension(L*W*H) 3*(1200*630*240mm)+a PDU box(L500*W390*H200mm)
DISCHARGE/CHARGE SPECIFICATIONS
Discharge Cut-off Voltage 360V
Max Continuous Discharging Current 230A @25℃ with liquid cooling
Peak Discharge Current in 5 Seconds 400A within 5s
CHARGE SPECIFICATIONS
Charging Limited Voltage 525V
Max Charging current 100A@380VAC, @25℃, CCS2 DC charging
Recommended Charging current 20A
TEMPERATURE SPECIFICATIONS
Charge Temperature Range 0~45℃
Discharge Temperature Range -20~55℃
Recommended Operating Temperature 15~35℃

Storage Temperature & Humidity Range

-20~35℃, 45~75%RH (Less than 1 month)
-10~35℃, 45~75%RH (Less than 3 months)
15~35℃, 45~75%RH (Recommended)

Standard EV Battery Module facts:

uD83DuDC77PACK System Core Technology uD83DuDC77Compact + Lightweight Design uD83DuDC77Patented Smart Thermal Liquid Technology uD83DuDC77Modular Design + Single Module Drivable uD83DuDC77The all parts in the module is standard parts which are molded parts uD83DuDC77Cell Core Technology uD83DuDC77Power type Li-ion battery has long cycle life and fast charging-discharging. It can keep the mobility of electric vehicles.

Why choose this Standard EV Battery Module?

✅SOC Calculation: Real time dynamic calibration Vehicle operation condition wasconsidered Multi-method combination High accuracy measurement of thecell Voltage /temperature/pack current Amount of data from experiment
✅Faults Diagnosis: Insulation & water leakage Cell voltage out of range High/low temperature Communication faults Contactor weld Power connection Temperature sensor faults
Electric vehicle lithium-ion battery - CTS battery
Electrical diagram of lithium battery system in standard box Two way high voltage input, doublegun charging Two way hight voltage output-water cooling compressor output; motor driving output;Single way low voltage output ,communicate with the whole vehicle!
