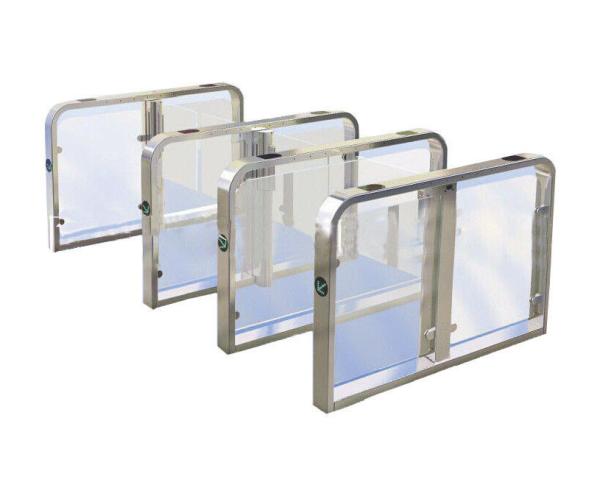

Remote Control Speed Gate Turnstile Stainless Steel Anti Collision 40 People/Min

Product Classification

Model:DLX-246

Product Presentation

1. Structure: the entire product appearance plate adopts 304 stainless steel plate stamping forming, rustproof, durable,

2. Dimensions: Length1400xWidth100× height 1000 (mm)

3. Weight:70kg.

4. Brake lever length: 300(mm)

5. Brake lever steering: one-way and two-way (optional)

6. Working environment: indoor and outdoor(It's better to have a shelter outside)

Standard featuresInfrared * mechanical double clamping function: automatic mechanical clamping is safer and more reliable when the gate is running;
◆ the electric control is driven by servo motor, encoder chuck movement, anti-collision durable, stable and reliable, self-check on electricity, low failure rate;
◆ ultra bright traffic indicator function: the direction indicator adopts the ultra bright LED lamp design, the indication is more eye-catching;
◆ crossing alarm function: if the pedestrian does not swipe the card to enter the channel, the device will alert the pedestrian to swipe the card;
◆ access mode selection: to meet different access requirements, can be set as two-way swipe card or one-way swipe card plus free access;
Various control functions: external button, remote control, bar code meter, IC or ID and other reading and writing devices;
◆ remote control function: the computer can connect RS485 card or TCP to RS485 remote control gateway;
◆ automatic reset function: if the card is not passed within the specified time, the brake shall return to the position and re-lock to cancel the passage, the time is 1-60 seconds.

Extend the functionality

◆ anti-collision function: the gate is hit by external force in the closed state, can choose not to hit the brake lever after collision or can hit the brake lever after automatic return function.

Product parameters
◆ power supply :AC220V±20%V, 50Hz;
◆ operating environment temperature :-40℃ -70 ℃;
◆ relative humidity: less than 95%, no condensation;
◆ traffic speed: 40 people/min (IC card);
◆ dc motor: 20W/24V;
◆ input interface: standard switch signal;
◆ communication interface: RS485 communication distance: <1200 m;
◆ material: 304 stainless steel or 316 stainless steel;
◆ color: stainless steel wire drawing or spray, color optional.
